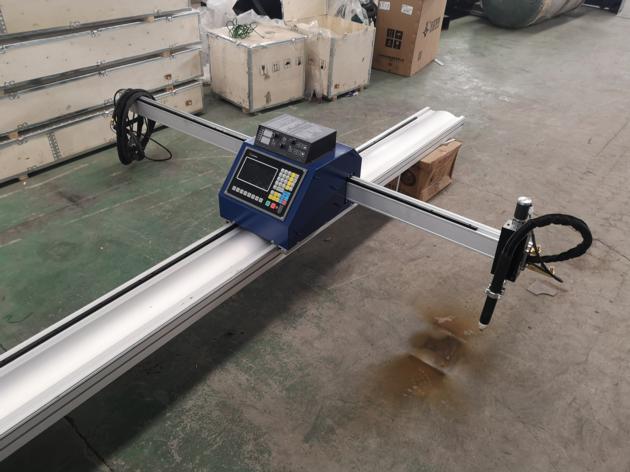

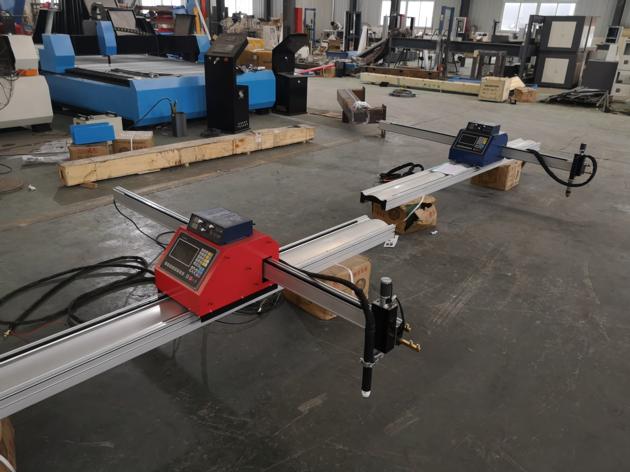

REBOUND CNC RB 1530 portable CNC plasma flame cutting machine

RB 1530 portable CNC plasma flame cutting machine has two working modes: plasma cutting, and (flame) gas cutting. Usually plasma cutting machines are used for thickness less than 30mm metal cutting. The gas (flame) cutting machines are used for thickness 30-200mm iron/ steel cutting.

Portable CNC plasma flame cutting machine features
1. Two cutting modes optional: plasma cutting and gas (flame) cutting.
2. This CNC plasma cutting machine moves by high precision gear and rack ,accurate running in high speed.
3. The operation is simple, fast, easy to learn the programming software.
4. Small cutting loss and typesetting software high material utilization.
5. Read U disk files through USB directly, convenient site operation.
6. The machine also has feature that automatic arc voltage torch height control, it can adjust cutting distance automatically.
7. It is easy to move, suitable for the site indoor or outdoor
8. Can automatically memorize and restore when power is off.

Portable CNC plasma flame cutting machine parameters:
Model RB-1530
Working Voltage AC 220V/380V, 50HZ
Cutting Size 1500mm*3000mm
Plasma Cutting Thickness 0-30mm,According to different power source
Gas(flame) cutting Thickness 1-200mm
Weight 230KGS
Control System STARFIRE(FANGLING optional)
Driving System LEADSHINE stepper motor
Transmission Method Gear transmission
Power Supplier HUAYUAN power or US HYPERTHERM
Guide Rail Round rails
Nesting Software FASTCAM
