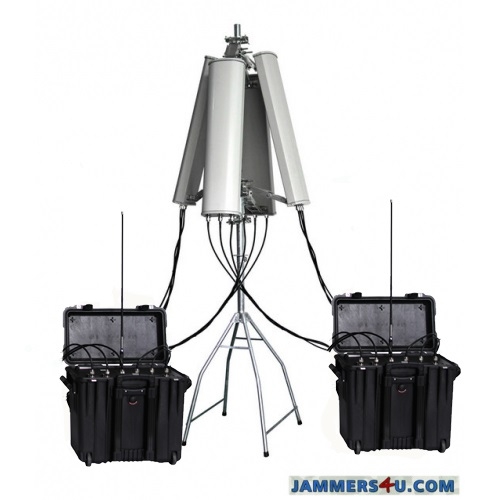

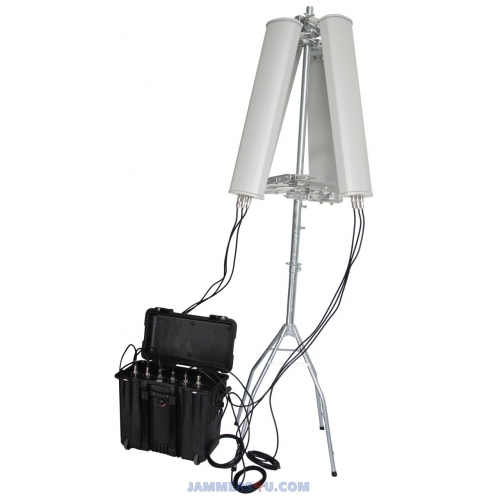

RC Drone Portable Jammer 6-7 Band 128-190W up to 3km

CT-3076B-HGA CT-3077B-HGA Portable Drone UAV Jammer 6-7 Bands up to 3000m

Anti-UAV Drone Portable Pelican case public events protection Jammer
2 Higher Gain Directional Antennas, Cover 180 Degrees
Built-in Battery +24V / 20AH LiFePO4, works 30-50min

1 Ver CT-3076B-HGA 128W 6 bands
Jamming range 800~3000m
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 2W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 2W
Total Two Directional Antennas to cover all 180 Degrees
TOTAL: 128W

2 Ver CT-3076BH-HGA 140W 6 bands
Jamming range 1200~3000m
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 10W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 10W
Total Two Directional Antennas to cover all 180 Degrees
TOTAL: 140W

3 Ver CT-3077BV-HGA 178W 7 Bands
Jamming range 800~3000 Meters
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 2W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 2W
Total Two Directional Antennas to cover all 180 Degrees
7. 900Mhz 25W or 433mhz Remote Control 50W in 360 degree Omni Antenna with mag base
TOTAL: 178W

4 Ver CT-3077BHV-HGA 190W 7 Bands
Jamming range 1200~3000 Meters
- One Directional Antenna with Three Bands to Cover 90 Degrees
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
2. 1570-1620MHz GPS L1 + GLONASS L1 40W
3. 5.7GHz-5.9GHz WiFi 11.a 10W
- One Directional Antenna with Three Bands to Cover 90 Degrees
4. 2.4-2.5GHz WiFi 11.g, b, Bluetooth 20W
5. 1570-1620MHz GPS L1 + GLONASS L1 40W
6. 5.7GHz-5.9GHz WiFi 11.a 10W
Total Two Directional Antennas to cover all 180 Degrees
7. 900Mhz 25W or 433mhz Remote Control 50W in 360 degree Omni Antenna with mag base
TOTAL: 190W

Cover Most Commercial Used Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Battery +24V / 20AH LiFePO4 can work 1 Hours
Power supply: AC110 or 220-240V /DC 27V
Weight : 26kg
Dimension: 500 x 305 x 457 mm (Pelican case 1440 Case only )
Working time: Without the time limit, May continue to work,

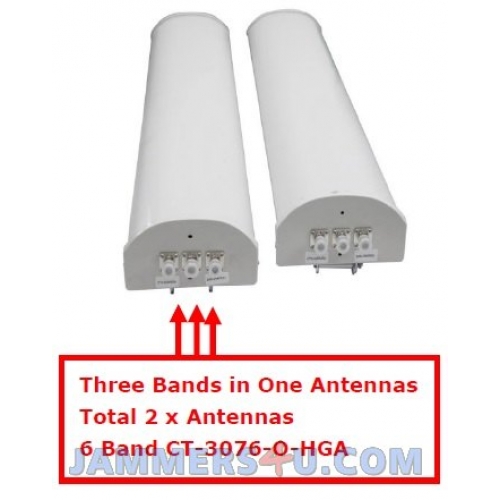

Antenna Higher Gain Directional Patch Panel Antennas
One Directional Antenna with Three Bands to Cover 90 Degrees
Total with Two Directional Antennas to cover all 180 Degrees

HGA Antennas: 1000 to 3000 meters +
Total 6 bands in 2 HGA Antennas + 1 pc Omni Antenna for 433 MHz
One Directional HGA Antenna with Three Bands cover 90 Degrees
Total per unit Two Directional Antennas that cover 180 Degrees

Package contents:
1 pc main jammer
1 pc Omni Antenna frame and cables 3m long
2 pcs HGA Antennas + ( 1 pc 433Mhz Omni Mag Antenna )
1 pcs AC Adapter (AC110 or 220-240V /DC 27V)
1 pc Wireless RC that works only on AC Adapter ( Can not works on Battery )

1 Year warranty, Neutral packing, OEM Manufacturer :
R&R GROUP INTERNATIONAL
