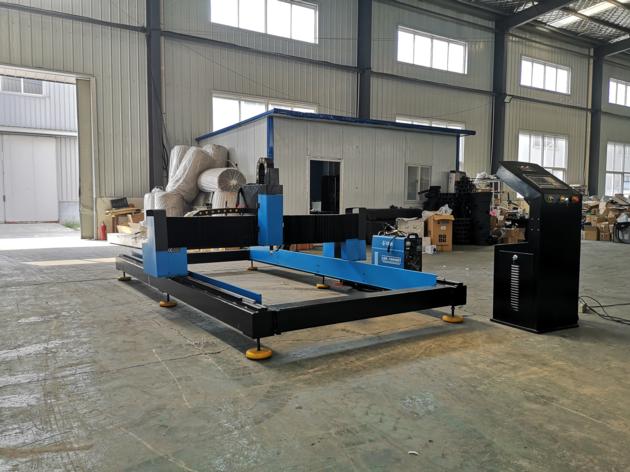

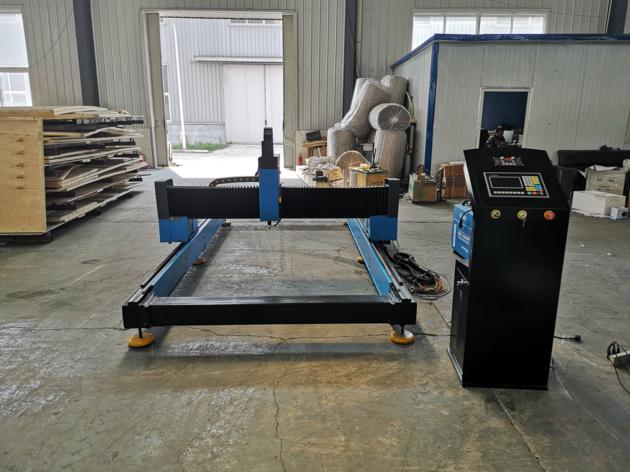

RB2060 Portable gantry CNC plasma cutting machine

According to different structures, CNC plasma cutting can be divided into portable CNC plasma cutting machine, desktop/table CNC plasma cutting machine, and Gantry CNC plasma cutting machine. If we want to cut large size metal, such as 2m*6m, 2.5*8m, 3*6m, we need to use a gantry CNC plasma cutting machine. But for some customers, they cannot afford such a machine because of their limited budget. So we designed a portable gantry CNC plasma cutting machine, so that it can cut large-size metal, but also with a preferential price.

Specifications of RB2060 Portable gantry CNC plasma cutting machine:
1. STARFIRE control system.
(1) The plasma cutter control system is of highly reliable design and has the ability to resist plasma interference, lightning stroke and surge.
(2) Practical flame / plasma cutting process, automatically complete corner speed control and height regulator control during plasma processing; Remote operation can be realized by wireless remote control.
(3) It has slit compensation function, detects whether the compensation in the program is reasonable, and makes corresponding reports for users to choose;
(4) Breakpoint recovery, automatic power-off recovery function, and breakpoint automatic memory;
(5) Processing function of arbitrary segment selection and perforation point selection;
2. High performance REBOUND CUT plasma power supply.
Digital current display, accurate preset current function, stepless adjustable current. High power IGBT module switching device design circuit, high reliability. 100% arc success rate, stable arc, good arc stiffness and excellent process performance.
3. Torch Height Controller F1621
(1) new operation panel design and color matching are adopted to improve the grade; Optimize the following algorithm to improve the cutting quality
(2) push down knob, clean and concise, easy to operate
(3) high power arcing relay is adopted to enhance arcing stability
(4) dual LED nixie tube display, simple and clear
(5) add dynamic piercing knob to facilitate real-time parameter change and achieve better cutting effect
4. Leadshine Microstep Drive M542C driving system
(1) The working voltage range covers 24VDC ~ 80VDC, 60vac ~ 220VAC;
(2) Operating current range: 0.1A ~ 11.7a (peak current);
(3) Support pulse / direction or double pulse control mode, and can receive differential and single ended signal commands;
(4) According to the operation characteristics of the motor, different anti vibration strategies are adopted at low and medium speed to ensure the smooth operation of the motor within the full speed range;
(5) Automatic identification of motor parameters and automatic setting of control parameters can automatically generate control parameters for different motors to give full play to the performance of the motor;
3. The guide rail and beam of plasma cutting machine are made of aluminum alloy, which is light in weight and easy to move
4. The unique design and compact shape structure make it occupy small space, operate stably and have high cutting precision
5. This machine can match plasma and flame cutting
