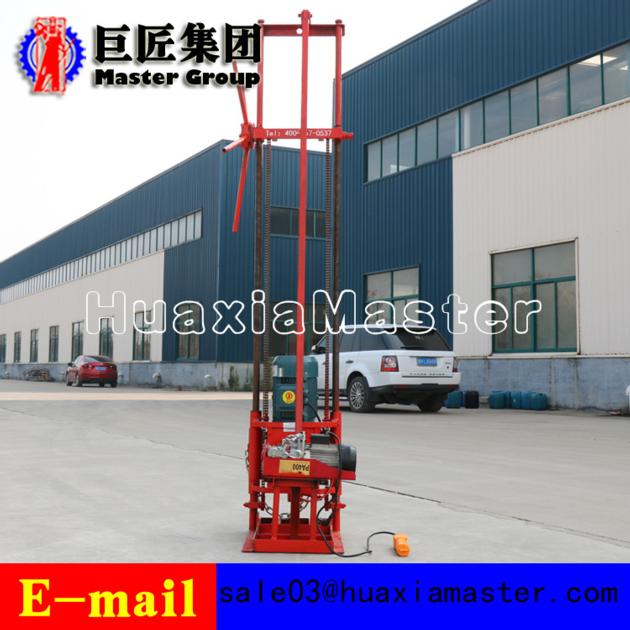

QZ-2DS Three Phase Core Drilling Rig

The brief introductions of QZ-2DS three phase core drilling rig
QZ-2DS type portable sampling drill is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2DS drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2.Specifications of QZ-2DS three phase core drilling rig
QZ-2DS drilling rig
End hole diameter (mm) 32-110


Drilling depth（m） soil 110：10m
soil 91：10-15m
stone 91：5-10m
stone 75：10-15m
stone 60：15-20m
stone 46：20-30m
Drilling pipe diameter (mm) 30

Three phase electric engine power 4kw
model YX3-112M-4
Dimension（l*w*h） 600*650*2330
Weight（kg） 110
3. Configuration List of QZ-2DS drilling rig
Item Parameter Unit Quantity
Three phase electric drilling rig QZ-2DS set 1

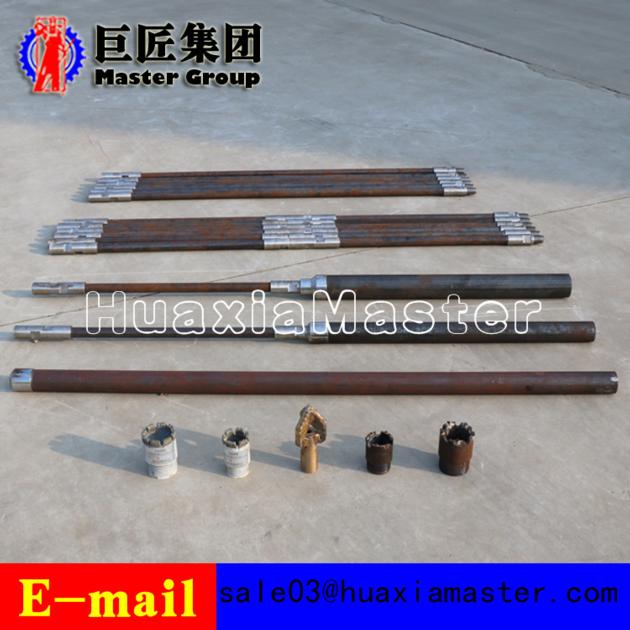

Drilling pipe 30*1500 pc 6
Drilling pipe 30*800 pc 14
Pipe joint 38 pc 20
Reducing nipple 58/38 pc 2

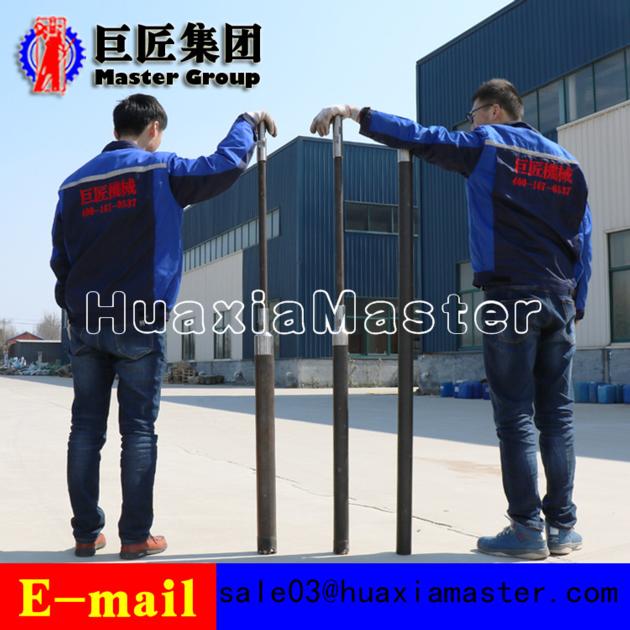

Core barrel 58*800 pc 1
Core barrel 58*1500 pc 1
Alloy bit 60 pc 1
Diamond bit 60 pc 1
Reducing nipple 73/38 pc 2
Core barrel 73*800 pc 1
Alloy bit 75 pc 1
Diamond bit 75 pc 1
Three-wing bit 75 pc 1
Safety clamp pc 1
Water seal Y 30*50*10 pc 4
Oil seal 30*50*10 pc 1
Pipe wrench 18 pc 2
Monkey wrench pc 1
Shaft snap ring clamp pc 1
Hole snap ring clamp pc 1
Pliers Pair 1
Cross screwdriver pc 1
Hex wrench pc 1

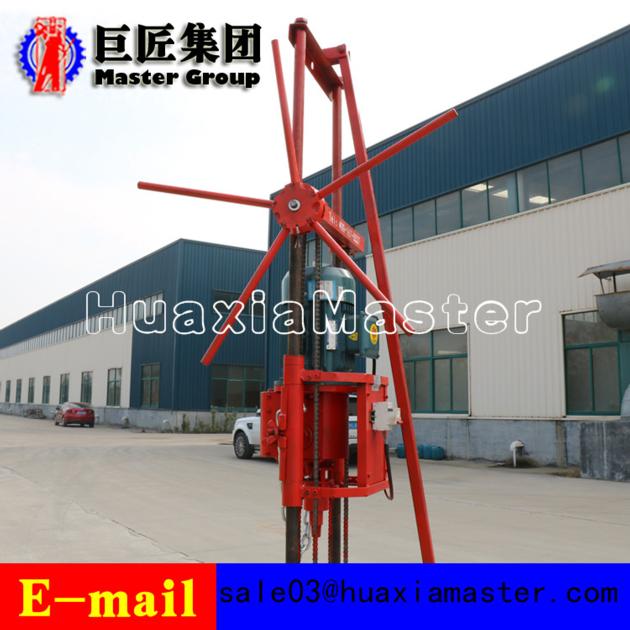

Control wheel pc 1

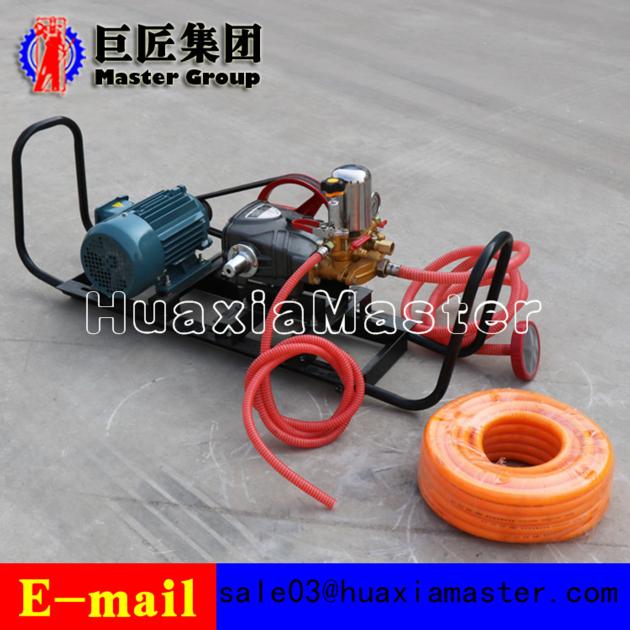

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
