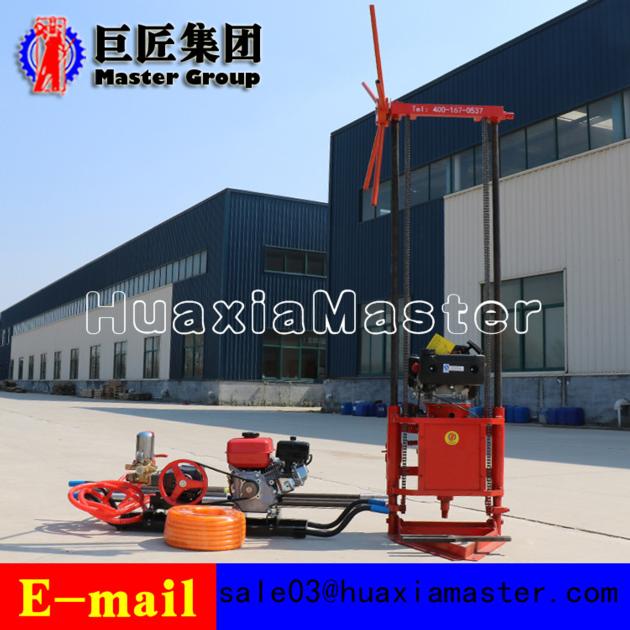

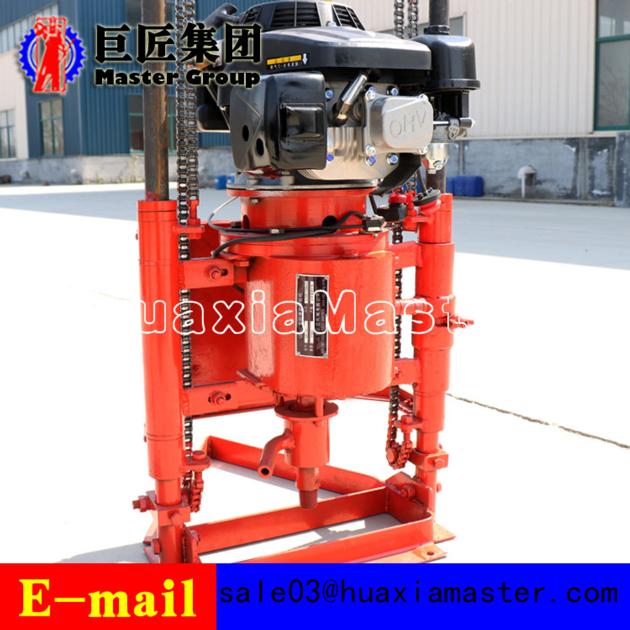

QZ-2C Gasoline Core Drilling Rig

1.Brief introductions of QZ-2C gasoline core drilling rig
QZ-2C type gasoline engine portable sampling drill rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2C drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2.Specifications of QZ-2C gasoline core drilling rig
QZ-2C gasoline core drilling rig
Bottom hole diameter (mm) 32-91


Drilling depth（m） soil layer: 91：10-15m
91：5-10m
lithosphere 75：10-15m
lithosphere 60：15-20m
lithosphere  46：20-30m
Drilling pipe diameter (mm) 30
Gasoline engine horse power(hp） 6(4.5kw)
displacement（cc） 224
Dimension（l*w*h） 600*450*1900
Weight（kg） 95

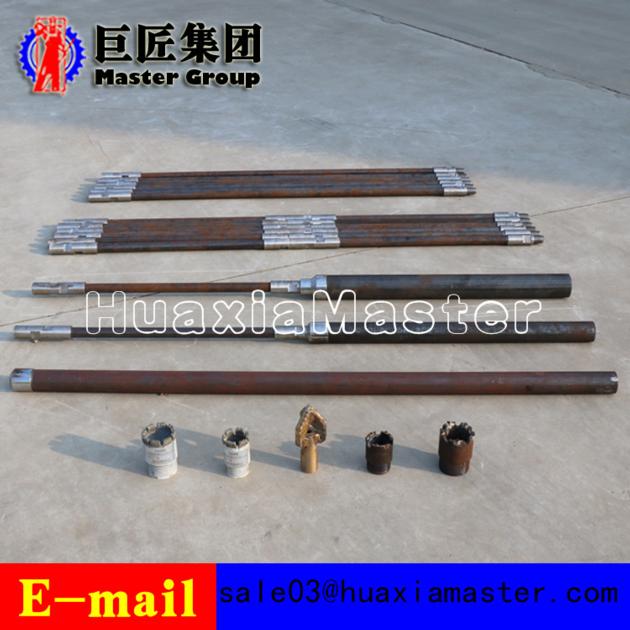

3.Configuration list of QZ-2C gasoline core drilling rig
Item Parameter Unit Quantity
Gasoline core drilling rig QZ-2C set 1
Drilling pipe 30*1500 pc 6
Drilling pipe 30*800 pc 14
Pipe joint 38 pc 20
Reducing nipple 58/38 pc 2
Core barrel 58*800 pc 1
Core barrel 58*1500 pc 1

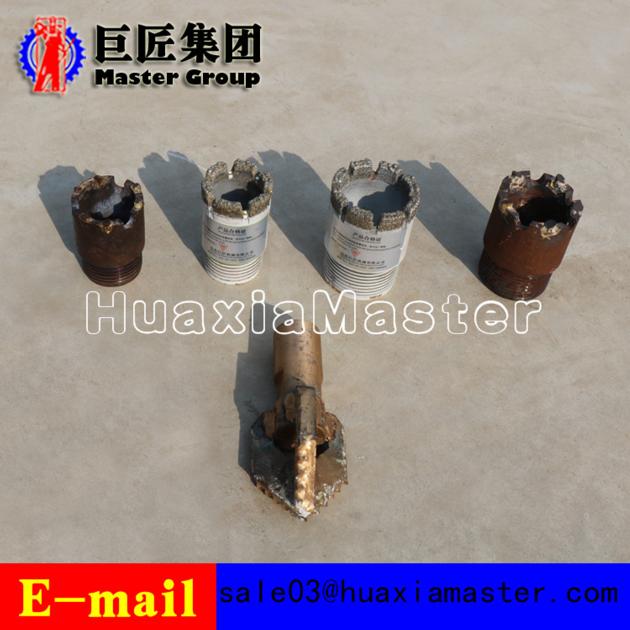

Alloy bit 60 pc 1
Diamond bit 60 pc 1
Reducing nipple 73/38 pc 2
Core barrel 73*800 pc 1
Alloy bit 75 pc 1
Diamond bit 75 pc 1
Three-wing bit 75 pc 1
Safety clamp pc 1
Water seal Y 30*50*10 pc 4
Oil seal 30*50*10 pc 1
Pipe wrench 18 pc 2
Monkey wrench pc 1
Shaft snap ring clamp pc 1
Hole snap ring clamp pc 1
Clamp pc 1
Cross screwdriver pc 1
Hex wrench pc 1
Control wheel pc 1

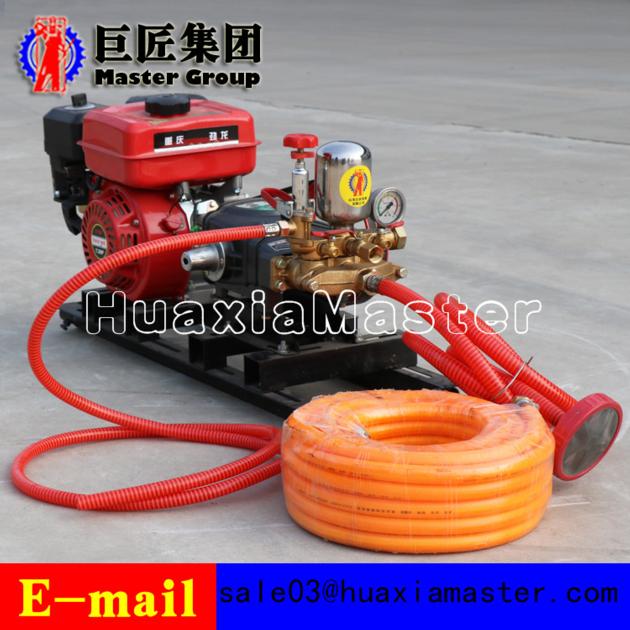

If you need a wooden base, a high pressure pump, and a high pressure water pipe, please specify
