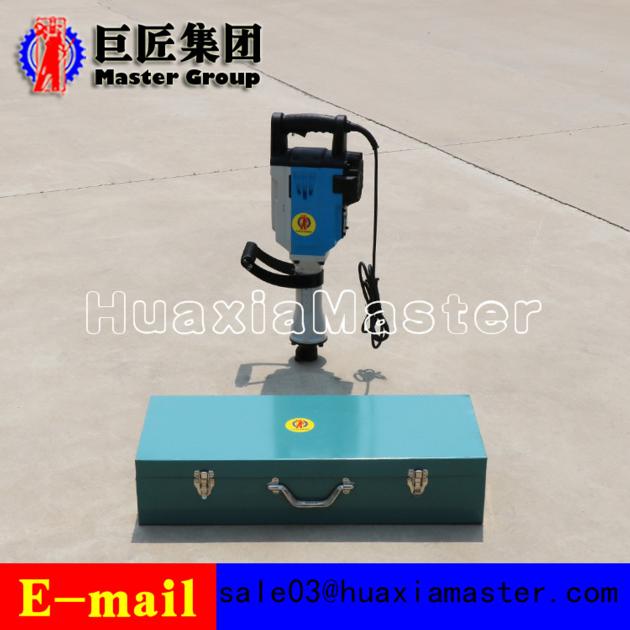

QTZ-3D Portable Electric Soil Drilling Rig

1.The brief introductions of QTZ-3D portable electric soil drilling rig
QTZ-3D portable electric soil drilling rig is an electric version of the QTZ-3 (gasoline engine) produced by Shandong Master Machinery Group Co., Ltd.
The improvement of QTZ-3D electric soil drilling rig is mainly engine system. While QTZ-3 is equipped with gasoline engine, QTZ-3D is powered by electric. The QTZ-3D soil drilling rig selects pure copper winding two phase electric motor as a power source. The advantage of using the electric engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment. It greatly improves the feed speed. In addition, QTZ-3D electric soil drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force during the drilling operations.
2.The applications of QTZ-3D portable electric soil drilling rig
geotechnical investigation
environmental soil survey
gricultural soil survey
groundwater survey
coastal geological survey
wetland environmental investigation
tailing pond investigation
archaeological investigation
physical chemistry exploration secondary halo sampling
the description of soil structure
3.The specifications of QTZ-3D electric soil sampling drilling rig
QTZ-3D portable electric earth drilling rig
Voltage 220v
Power 3.6kw
Lighter way switch mode
Energy dissipation low power consumption
Impact times 2600min/m
Impact energy 60j-79j
Core depth 15m-20m
Host weight 22kg

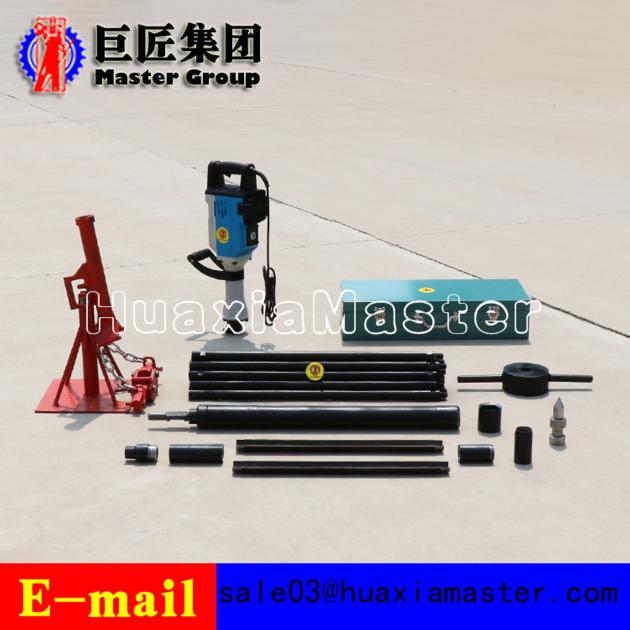

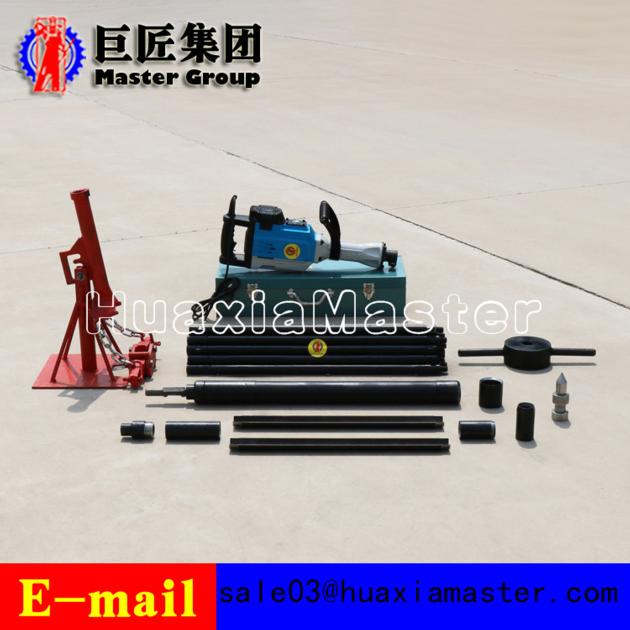

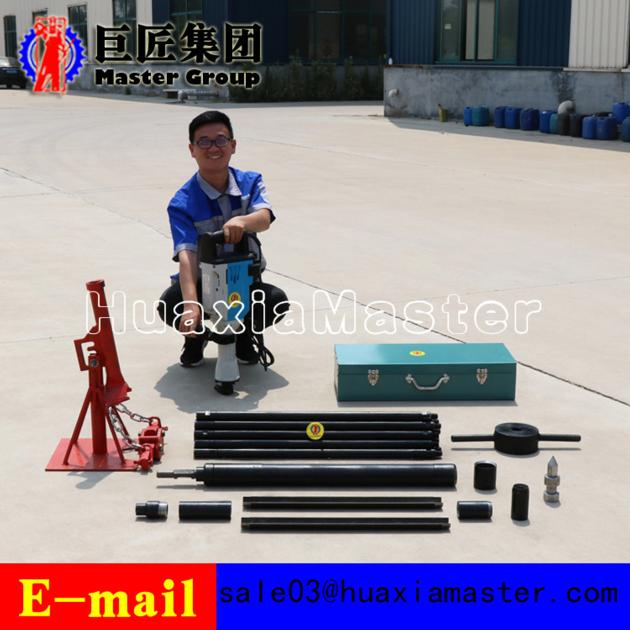

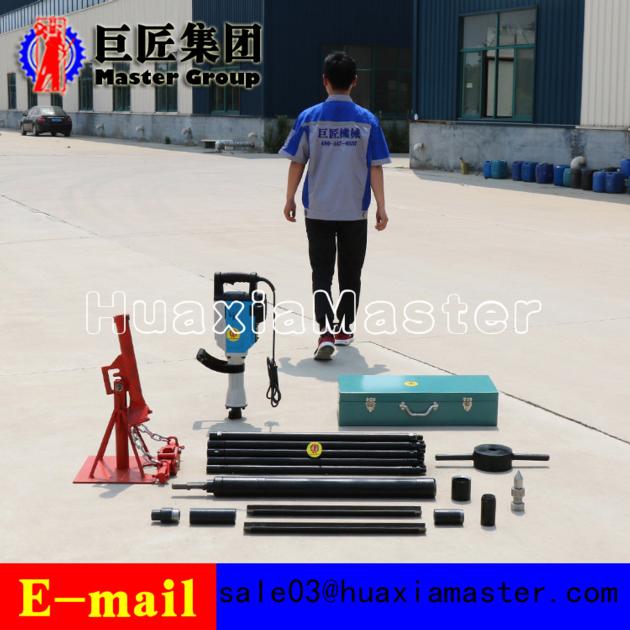

4.The configuration list of QTZ-3D
Item Parameter Unit Quantity
Electric earth drilling rig QTZ-3D Platform 1
Shock reception 32*150 pc 1
Cones 32*80 pc 19
Drill pipe 32*700 pc 19
Taper wire 32*100 pc 19
Reducing nipple 32*50 pc 1
Hoop 50*150 pc 1
Open tube 50*600 pc 1
The blade tube boots 50*100 pc 2
Reducing nipple 32*70 pc 1
Hoop 70*150 pc 1
Open tube 70*600 pc 1
Inner edge pipe boots 70*100 pc 1
Outer edge pipe boots 70*100 pc 1
Portable sounding hammer 10kg pc 1
Sounding the reducing nipple 32 pc 1
Double sided hand 32 pc 1
Touch probe 32 pc 1
Puller Three force arm set 1
Pipe wrench 80mm hold 1
Hold-all pc 1
