Pro Drone RC Jammer 725W 8 Bands up to 8km

CT-8078AR Pro Drone UAV 8 bands 725W Jammer up to 8000m

Portable Extreme powerful UAV Drone flight killer that cover all commercial and most of professional used Drones/UAVs

Max 720W 8 Bands - 5.8GHz, 2.4GHz, 433MHz, GPS L1, L2, L3, L4 L5, Glonass L1+L2, BeiDou, Galileo, 868MHz

Frequency/antennas specification 8 bands:
1. GPS L1 1575.42+Gloanss L1+GALILEO E1=1575.42+BeiDou B1 Freq (1559.052~1591.788Mhz) 1570-1620MHz 100W
2. GPS L2 1227.60+Glonass L2+BeiDou B3 Freq (1250.618~1286.423Mhz)+GALILEO E6=1278.75 1220-1290MHz 100W
3. GPS L3+L4 1379~1382Mhz 100W
4. GPS L5 1176.45 Mhz+BeiDou B2 Freq (1166.220~1217.370Mhz)+GALILEO E5=1191.795+E5A=1176.46 + GALILEO E5B=1207.14:1160-1210MHz 100W
5. RC 433/434MHz 100W
6. RC 868-912MHz 100W
7. RC WIFI 2400-2500MHz 100W
8. RC 5.7-5.9GHz 20-25W
TOTAL: 725W

Jamming range:

- Omni Antenna : 360 degree 1000-4000 meters+

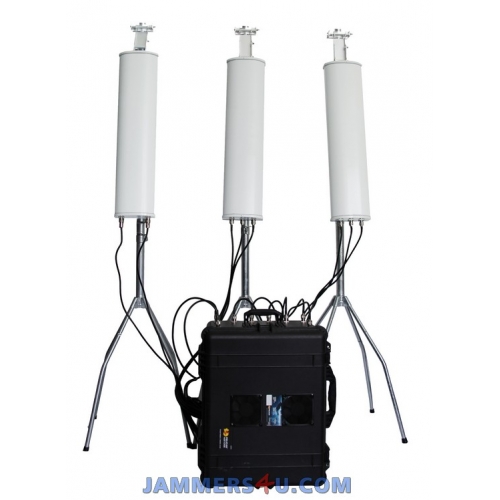

- HGA Antennas : 90 degree 3000 to 8000 meters +
Total 8 bands in 3 HGA Antennas, use 2pcs HGA Antennas 3 bands antennas + 1 pc HGA Antennas 2 bands. HGA Antennas block only 90 degree on this model, so make sure you know which way UAV coming or to cover 360 degree will need 4 units or some customized make rotating platform

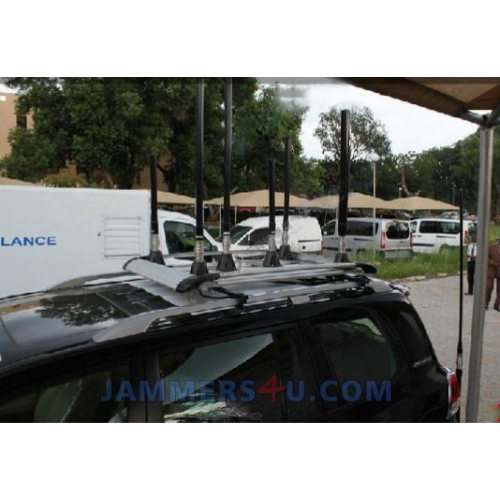

- Military Omni Vehicles Antennas Option: 360 degree 2000 to 6000 meters+

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC adapter (AC 220V-DC 27V or 24V/45 Amp) or External Battery

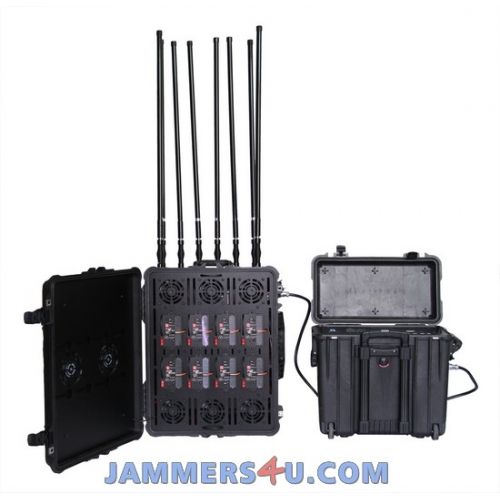

Stand-alone modular design and individual power control.
Adjustable Output Power each Band/Channel
VSWR over protection for each modular.
Working status indicator for each band modular.
Pelican 1620 Case Raining Proof
Dimension：626 mm(L)×49.2mm(W)× 350mm(H)
Weight：45 Kg (approximately) just main unit
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
Warranty: 1 year

Package contents:
1 pc main jammer
8 pcs Omni antennas 750mm long
2 pcs Omni Antennas frame and cables 2-3m long
3 pcs HGA Antennas
1 pcs AC Adapter (AC 220V-DC 27V or 24V/45 Amp)
1 pc Wireless RC that works on AC Adapter
(- Wireless RC will not works when device use battery)
(- Tripod is not included in our prices)

Additional antenna options:
8 pcs Military type antennas with vehicle frame

External Battery in order option:
B-50AH 27V/50AH LiFePo4 Battery
Pelican Case 1440, 35kg Weight. Work 1-2 hours

1 Year warranty, Neutral packing, OEM Manufacturer :
R&R GROUP INTERNATIONAL
