Precise soft cone winder
| Price: | US$ 1000 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | L/C |
| Port of Export: | Shanghai,China |
Product Details
| Model No.: | YY-S | Brand Name: | Wuxi yiyuan |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Arrangement:Single jersey machine, 6 spindles for each section
Drive and control:Single-spindle and independent Winding speed:1,000 meters/minute (process speed depends on raw materials) Maximum external winding diameter:250MM Winding slant angle :Freely programmable Guide thread stroke:50-280MM (can be adjusted via a computer) Winding mode:Digital winding or precision winding Minimum/maximum number of spindles:6/48 spindles Rated power:180W |
Packaging & Delivery
| Packaging: | Wooden box |
|---|---|
| Delivery/Lead Time: | 25 days after ordering |
| Production Capacity: | 1,000 meters/minute (process speed depends on raw materials) |
Product Description

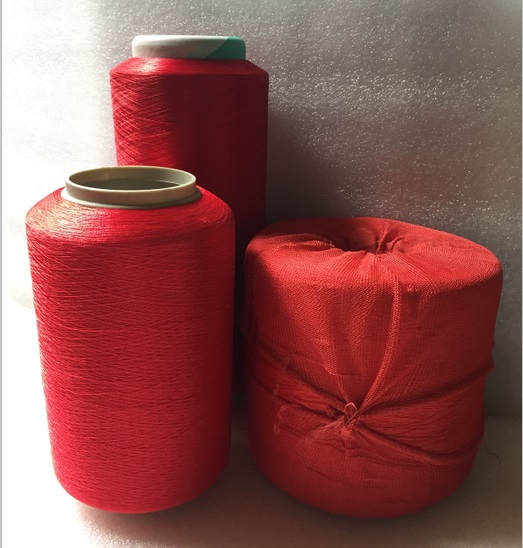

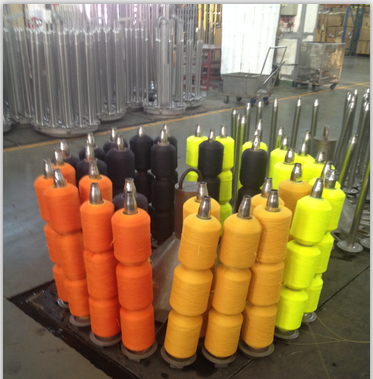

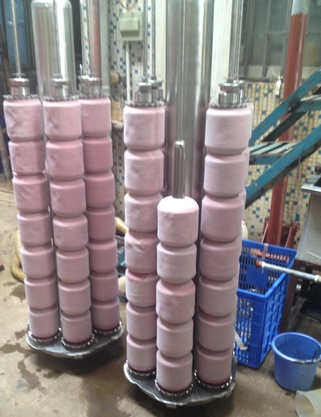

This machine is a winding machine with electromechanical integration. The complete machine adopts a high-integration single-spindle independent controller, It is also equipped with a self-developed and self-designed cord-arrangement control system, so as to separately drive the three motors of wire guiding, winding, and overfeeding. Thus, the machine may actively and steadily feed yarn, which won't be overlapped despite the winding back and forth. After overfeeding, yarn can be wound into the soft-cone bobbin yarn available for dyeing. Additionally, this machine has the functions of fixing length and diameter to meet the need for shaping.
|
