Poultry floor rearing watering and feeding line

Feeding line:
1.Vice hopper：
Size: 70Kg, 90Kg;Material: hot-dip galvanized sheet, thickness: 1mm
2.Drving motor：
Power: 0.75Kw/1.1Kw/1.5Kw,
Voltage: 380V/220V/customized, Three-phase/Single-phase
Frequency: 50Hz, AC current
3.Pan feeding lines ：
Feed pipe:
Diameter of feed pipe:Φ45mm
Material: hot-dip galvanized sheet pipe with the zinc coating amount—more than 275g/m2.
Helical spring auger: imported from South Africa, feeding ability:400Kg/h

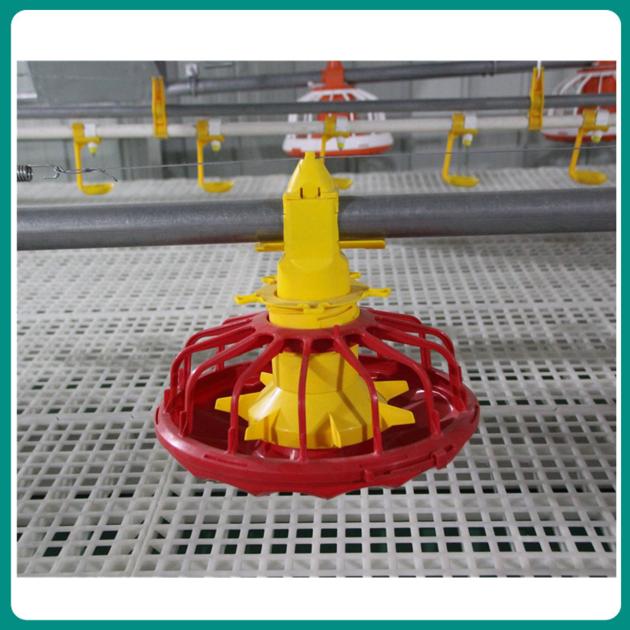

Feed pan:
14 or 16 grilles, ensuring enough feeding space; Made of high wear-resistant pure engineering plastic——PP (Polypropylene), very durable; Feed discharge amount adjustable, meet eating demands from day-old chicks to adult chickens.
Feeding line specification: 4 feed pans/3m, 3 feed pans/3m
Feed pan capacity: 50-55 broilers/pan
Sensor ：
imported from Germany, time delay range: 0-2hours
The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and delivery feed when sensor doesn't touch feed and will stop working when sensor touchs feed.
4.Lifting&suspension system
It's very convenient to adjust the feeding line height by winch.
Watering line
1.Waterline front system
Front part is controller of water, which is usually installed in control room.
*Pressure regulating valve: to make sure to supply stable water to drinking lines.
*Filter: clean water and avoid blocking nipples.
*Water meter: to measure water usage volume.
*Doser/Medicator: add medicine to drinking system automatically to prevent disease.
2.Pressure regulator
Regulating stability;
High switching performance;
Water supply is sufficient&equality;
Recoil cleaning with good cleaning result,save time and water;
Good quality movable valve, easy to change.
3.Nipple drinking lines
Nipple:
The outside shell is made of high quality plastic, the valve rod is made of high quality stainless steel.
a. Anti-corrosion, service life over 10 years;
b. Double-sealing structure, avoiding water leakage and its bad influence to chicken house;
c. Valve rod can be movable in 360 degrees, easy to drink;
d. Meet eating demand of different stages chickens.
Drip cup:
Material: pure engineering plastic—PP.
a. One-arm design, more suitable for modern poultry idea;
b. Tight to water pipes, won't drop when touching in cold weathers.
Water pipe:
Square water pipe, diameter: 22mm, material: PVC
Supporting tube:
Diameter: 25mm, material: galvanized steel
Drinking line specification: 15 nipples/3m, 12 nipples/3m
Nipple drinker capacity: 8-12 broilers/drinker
4.Water display level tube
Use high transparency&impact resistant material, it's sturdy and durable, convenient to observe water level.
5.Lifting&suspension system
Correct driking line height js very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken groiwth, also wast water. It's very easy to adjust the height by winch.
