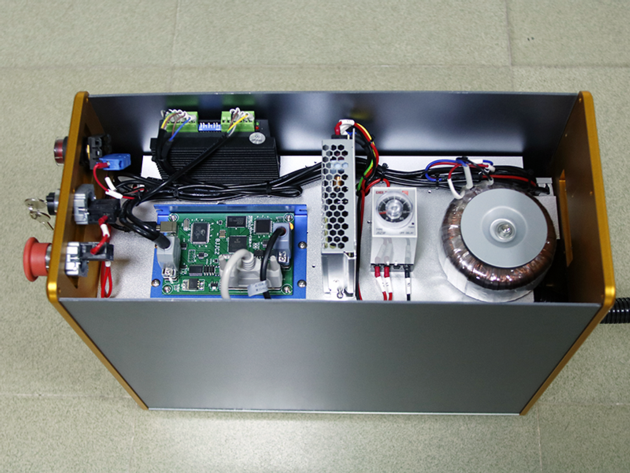

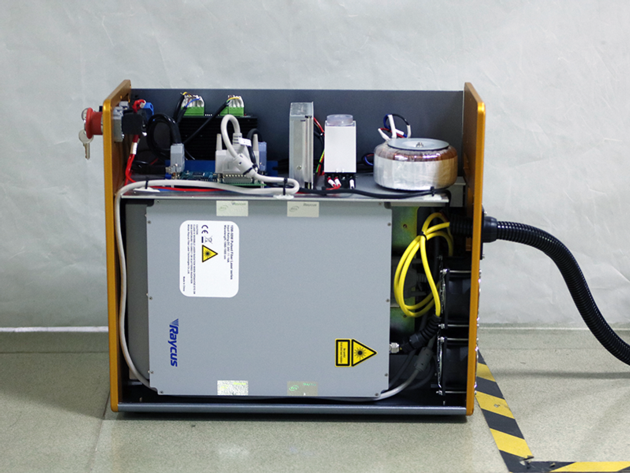

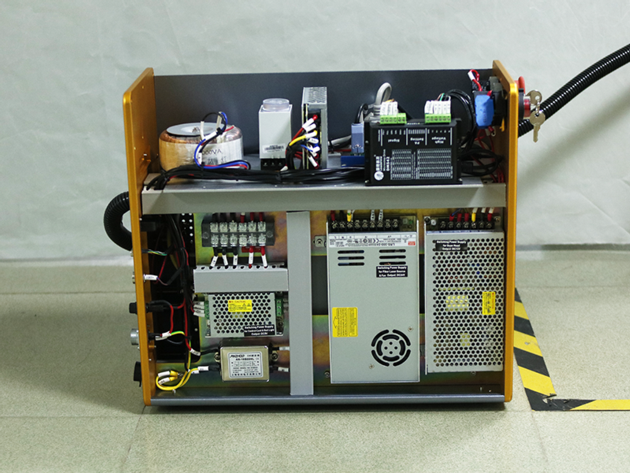

Portable fiber laser marking machine
| Price: | US$ 2750.00 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | FOB |
| Port of Export: |
Product Details
| Model No.: | MY-M20F-II | Brand Name: | Wisley |
|---|
| Certification: | |
|---|---|
| Specification: |
Model MY-M20F-II
Power 20W Laser Wavelength 1064nm Standard Marking Area 150mm*150mm Marking Depth ≤2mm Marking Speed 7000mm/s Minimum Line Width 0.015mm Minimum Character 0.2mm Repeated Precision ¯0.003mm Fiber Laser Source Raycus from China Scan Head Galvo Tech from China Controller JZC Controller & EzCAD Software Lifespan of Laser Source 100 000-200 000 hours Beam Quality M2 <1.6 Focus Spot Diameter <0.01mm Output Power of Laser 10%~100% continuously to be adjusted Output Frequency of Laser 30KHz~60KHz continuously to be adjusted Power Stability (8h) <¯1.5%rms System Operation Environment Windows XP / 7 / 8 / 10 -32/64bits Cooling Mode Air cooling--Built-in Voltage 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH Power Requirement <450W Dimension (L*W*H) 85*70*136cm Package Size 95*95*105cm(Air shipping) / 100*90*155cm(Sea shipping) Net Weight 170kg Gross Weight 233kg |
Packaging & Delivery
| Packaging: | Plywood |
|---|---|
| Delivery/Lead Time: | 5-7 working day |
| Production Capacity: |
Product Description
Feature
1) Long lifespan of fiber laser source: 100 000 - 200 000 hours.
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.
5) No Consumables: One marker can work for more 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.

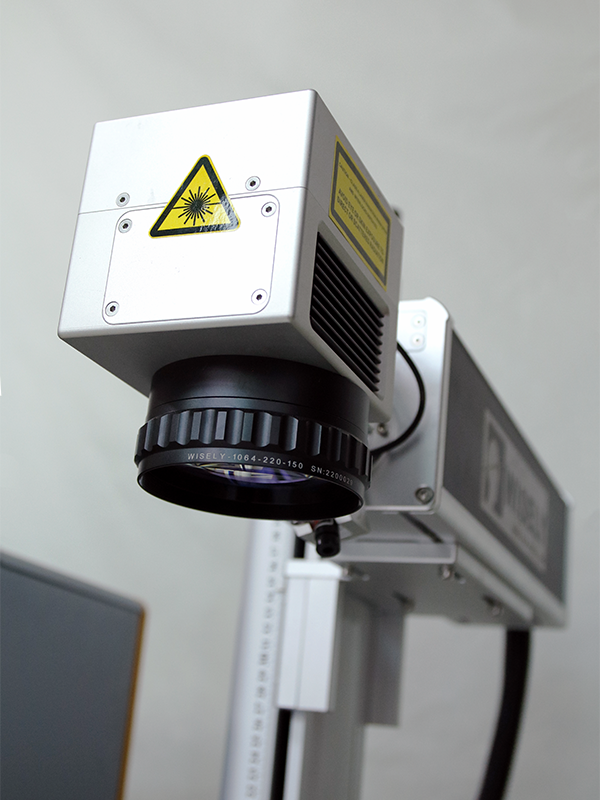

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS, AutoCAD, Solidworks etc.
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
WISELY Laser Marking Machine for Metal & Plastics. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many nonmetallic materials, such as ABS, Nylon, PES, PVC, Makrolon, etc. 1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
|
