Portable Two Way Radio Handheld Walkie Talkie Cost Effective DMR Radio BF-TD505
| Price: | US$ 106 / Piece |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Xiamen |
Product Details
| Model No.: | BF-TD505 | Brand Name: | BelFone |
|---|
| Certification: | FCC |
|---|---|
| Specification: |
General
Frequency Range VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channels 160 Zones 32 Channel Spacing 12.5KHz/ 25KHz Working Voltage DC7.4V (¯20%) Frequency Stability ¯1.5ppm Antenna Impedance 50Ω Battery Capacity 1800mAh Battery Average Working Time Digital 20 hours; Analog 14 hours Dimension 56(L)* 32(W)* 109(H) mm Weight 239g (including battery) Transmitter Power Output High power: 5W; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50F3E/ 25KHz: 16KφF3E Modulation Limitation +/- 2.5KHz FM Noise -40dB Spurious Emission -36 dBm≤1GHz; -30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE 3000 Audio Distortion ≤3% Receiver Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.25 uV (12 dB SINAD) Intermodulation 60dB Adjacent Channel Selectivity 60dB Spurious Suppression 60dB FM Noise -40dB Frequency Response +1/-3 dB Audio Power 1.5W Audio Distortion 3% (typical) Conduction Radiation -57dBm Environmental Specifications Operating Temperature -20ºC~+60ºC Storage Temperature -30ºC~+85ºC Water Proof IP54 Shock & Vibration MIL-STD-810C/D/E/F |
Packaging & Delivery
| Packaging: | Standard Carton Box Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description

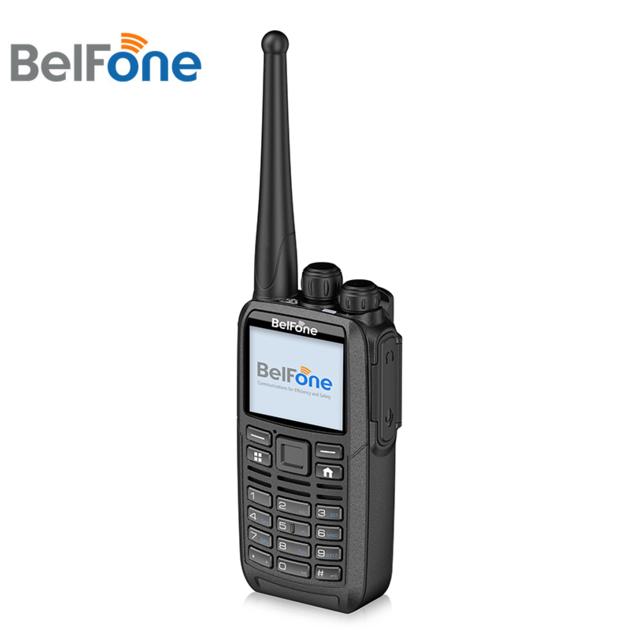

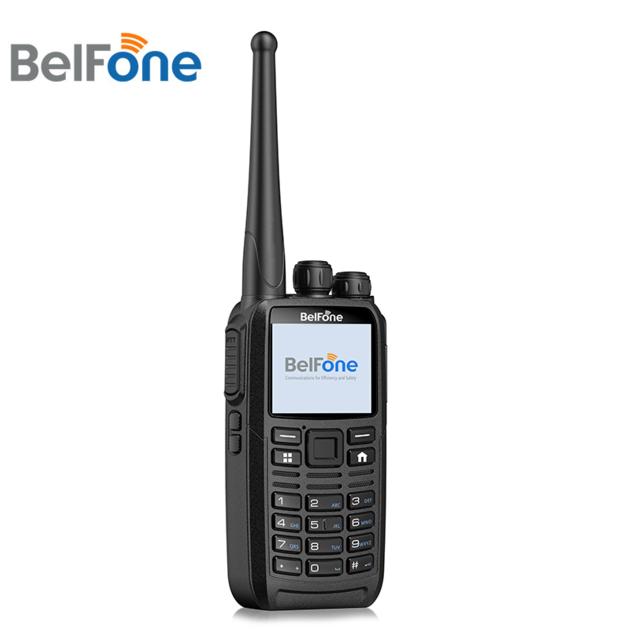

BF-TD505 is a great model for users to migrate their analog two-way radios in sectors such as hotels, restaurants, supermarkets, etc. On top of conventional analog functions, it also brings digital features like integrated voice and data and efficient operation; therefore, you're better connected, safer and more productive.
DMO Pseudo Trunk
The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.
Portable Two Way Radio Handheld Walkie Talkie Entry Level Professional Economical Cost Effective Dmr Radio Bf-Td505
DMO True 2-Slot
In direct mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths on 1 frequency at no extra costs or frequency license.
Portable Two Way Radio Handheld Walkie Talkie Entry Level Professional Economical Cost Effective Dmr Radio Bf-Td505
Digital/analog Dual Modes
BF-TD505 gives you a smooth transition from analog to digital.
Portable Two Way Radio Handheld Walkie Talkie Entry Level Professional Economical Cost Effective Dmr Radio Bf-Td505
Color LCD Display Screen
You can read your radio information easily, like frequency, channel, etc.
Private call, Group call and All call
The versatile calling functions bring more efficiency to your teamwork.
Small Size and Light Weight
BF-TD505 is small and light enough to be held comfortably in your hand.
Long Battery Standard Time
BF-TD505 is a powerful radio with long battery life. (digital 18h& analog 14h)
Excellent Audio Quality
The AMBE+2TM vocoder and FEC technology give BF-TD505 loud and clear digital audio.
Transmit Interrupt
This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communications.
Remote Kill/Revive
Such functions enable you to kill or revive a radio over the air. This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.
Automatic Roaming (Programmable)
|
