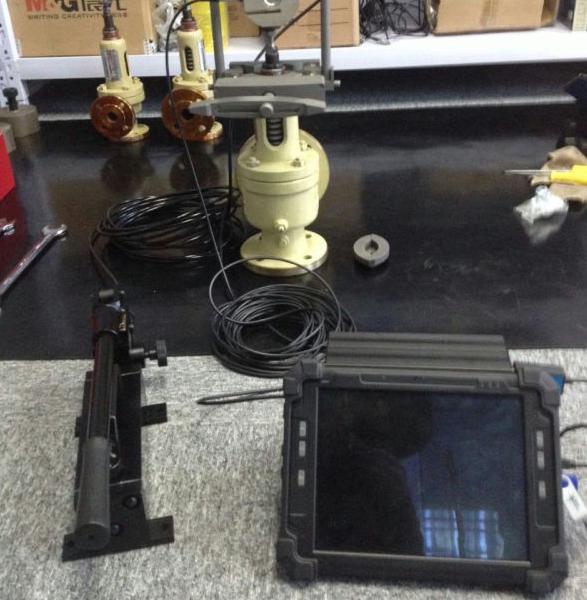

Portable Online Safety Valves Automatic Pressure Testing Machine PC Controlled

Typical standard technical data are as follows,

1. Operating system: Windows win 07
2. LCD screen: 10.4 inches touch screen, support outdoor operating
3. External lifting pressure: 0-30KN (could have 50KN extra pack)
4. Force sensor range: 200Kg,500Kg,2000Kg,2000/5000Kg
5. Force sensor accuracy: 0.2% F*S
6. Working temperature: -10~60 ºC
7. Humidity Level: less than 85% R*H
8. Power supply: inside and outside Li Battery, double supply. Working hours >= 9 hrs
9. Valve opening mode: displacement method, voice frequency method, according to different site scenarios.

Displacement method:
High-precision displacement transducer helps to size up safety valve opening status - if the valve is opened
High-precision displacement transducer measuring range 0 - 5mm
Accuracy: 0.05%

VF method:
VF probe: to monitor safety valve opening status
Stereo earphone: monitor VF probe result
Application environment: industrial and mining enterprises with complicated noises.
10. Initiating pressure error of measurement: 0.5%.
11. Data Storage: The instrument will automatically store 2000 sets of measuring data.
12. Professional data management software can auto create verification report according to the testing data.
