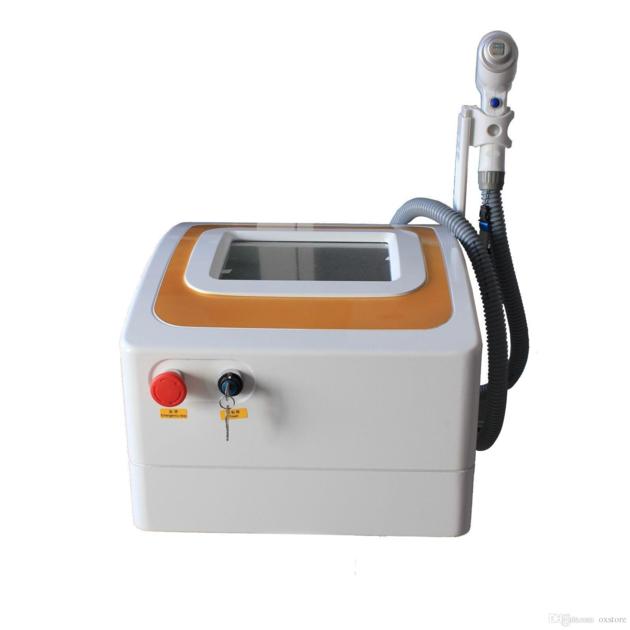

Portable Non- Channel Technology 808nm Diode Laser Jenoptik German Laser Chip Hair Removal Machine

Portable Non- Channel Technology 808nm Diode Laser Jenoptik German Laser Chip Hair Removal Machine
Working Principle :
The main principle of 808nm diode laser hair removal system is selective photothermolysis (SPTL). 808nm laser emits the gold wavelength of light, 808nm to penetrate into hair follicle. Using the theory of selective optical absorption, laser can be preferentially absorbed by the melanin of the hair. And then the hair shaft and hair follicle are heated rapidly in order to destroy the oxygen-supply organization and around the hair follicle. So that the hair follicles is to stop growing, damage hair follicle degeneration and atrophy to achieve permanent hair removal.
German Laser Chip Hair Removal Machine
Non-channel chips handle :

1.Lasted technology--Non channel chips handle
2.Let alone life span of the laser handle is upgraded to 20,000,000.00 shots
3.4 size spot for your reference, 15*15mm/15*20mm/20*25mm/25*31mm

Our Portable 808nm Diode Laser utilizes upgraded technology Non-Channel instead of micro-channel or macro-channel handle .Because of special chips arrangement non-channel handle can take up the water temperature 55ºC, while both micro and macro channels can only take maximum 35ºC.What's more, Non-channel handle support the maximum current 130 A. Micro-channel and macro-channel can only take 60Aand 40Arespectively.For that reason the upgraded diode laser ensures longer working hours than other technologies on the market., and you never will have to suffer from the handle-burning problems again and again.
Portable 808nm Diode Laser Advantage :

10.4 Inch Color Touch Screen  , German  imported Laser emitter
1.Comfortable laser hair removal treatment, completely safe and painless & permanent .
2.Up to 10Hz repetition rate with a big spot size ,which provides you with a fast and efficient treatment by saving time and cost.
3.With outstanding TEC cooling system,which can keep the machine working 12 hours continuously as well as a good painless feeling during the treatment.
when the water temperature exceed 50 centigrade, the machine will automatically shut down.
4.DC diaphragm pump : 5L/min, pressure 60psi,  Suction head lift 5 meter , high lift 50 meter, ensure good water circulation.
5.Filters used can keep all the impurities and ion out of water to avoid the damage possibility of the laser bar .
6.Copper radiator : with SUS316 stainless steel water pipes in side, offer better anti-rust resistance, to ensure the purity of the water, besides, the copper is better in heat dissipation .
7.The optical lense never gets foggy
8.Up to 20,000,000  laser shots
We also provide Pneumatic Shockwave Machine, Slimming Machine, Fat burning Machine and soon
Display Screen 10.4 inch color touch screen
Wavelength 808nm
Pulse Width 5 - 400 ms
Fluence /Energy 5-120J /cm2
Output Energy 4-118J/cm2
Frequency 1Hz-10Hz
Skin Cooling Temperature  -5 ~ 5 ºC
Spot Size  10*12mm2
Diode power   300W/450W/600W for options
Power Consumption  1200W
Cooling System  Water+air+semiconductor
Voltage  AC220V/110V,50/60Hz
Packing size 51x46x51cm
Packing way Aluminum case with PE foam protection
GW 25kg
