Portable CCD LED Colorimeter Spectroradiometer
| Price: | US$ 530 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C,T/T,etc |
| Port of Export: | Shanghai |
Product Details
| Model No.: | LMS-6000 | Brand Name: | Lisun |
|---|
| Certification: | IEC |
|---|---|
| Specification: |
The Chroma Meter Specifications:
• Spectral resolution: ¬0.2nm, Reproducibility: ¬0.5nm • Accuracy of chromaticity coordinate (Δx, Δy): ¬0.005 • Correlated color temperature CCT: 1, 000K ~ 100, 000K (¬0.6%) • Illuminance range: 5~200,000lx • LCD screen: 5inch high definition IPS capacitive touch screen and resolution is up to 480*854 • With 4000mAh rechargeable Li-ion battery which can continuously work for 20 hours • Dimensions: 135mm*80mm*23mm • Connect to PC via USB cable. English version software can run on Win7, Win8 or Win10 |
Packaging & Delivery
| Packaging: | WOODEN CARTON |
|---|---|
| Delivery/Lead Time: | 20 Days |
| Production Capacity: |
Product Description
Product Description

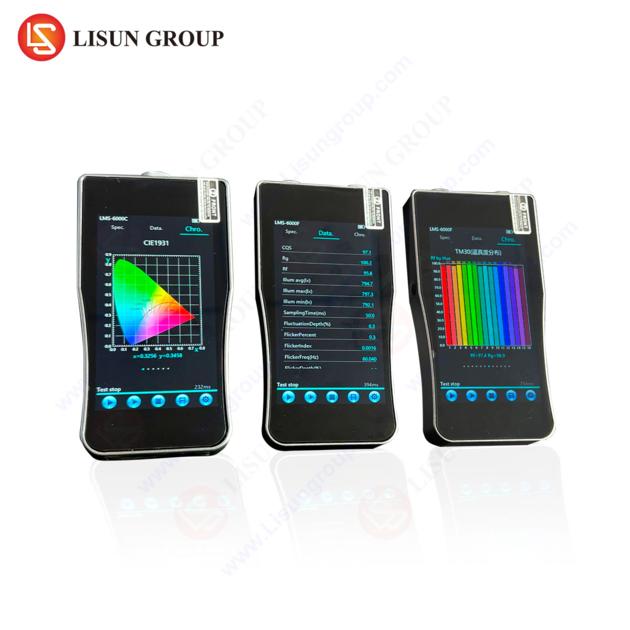

The Portable CCD LED Colorimeter Spectroradiometer has the following versions which can measure different parameters:
LISUN Model Function Wave Range

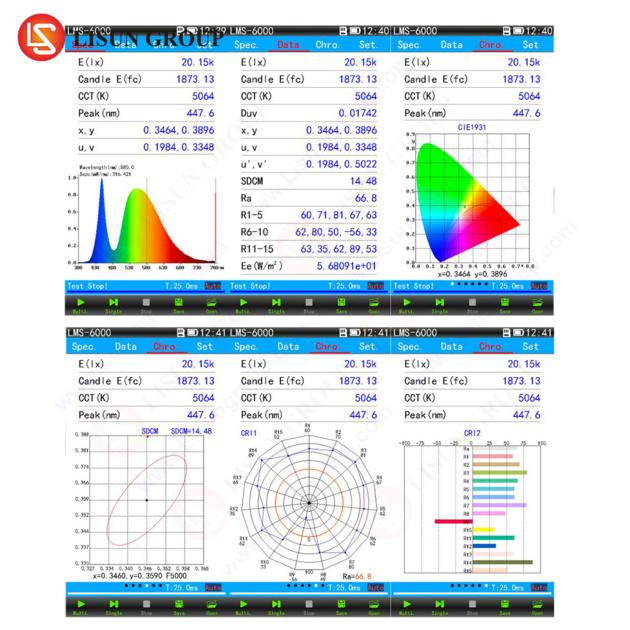

LMS-6000 illuminance (lux), E(Fc), Ee(W/m2), Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram 380-780nm
LMS-6000B LMS-6000 Parameters+Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 350-800nm
LMS-6000BF LMS-6000 Parameters+Flicker test, Blue Light Hazard Weighted Irradiance according to GB/T20145, CIE S009/E:2002 350-800nm
LMS-6000F LMS-6000 Parameters+Flicker test 380-780nm
LMS-6000L cd/m2, fL, Tc (K), Duv Correlated Color Temperature (CCT), Chromaticity Coordinates, CRI, Purity, Peak Wavelength, Dominant Wavelength, Half Bandwidth, Center Wavelength, Centroid Wavelength, Total Color Difference, Brightness Difference, Red-Green Degree, Yellow-Blue Degree, CCT Difference, SDCM Diagram, Spectrum Diagram 380-780nm
LMS-6000P LMS-6000 Parameters+PAR, PPFD, YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio 380-800nm
LMS-6000S LMS-6000 Parameters+PAR, PPFD, YPFD, Blue-purple irradiance Eb, Yellow-green irradiance Ey, Red-orange irradiance Er, Ratio of red and blue radiation Erb_Ratio, Rf and Rg according to TM-30 350-950nm
LMS-6000UV UV-A, UV-B, UV-C and UV total Radiant Irradiance, UV hazard irradiance, UV spectrum, Dominant Wavelength, Peak signal, Start wavelength, End wavelength. Please click here to see the LMS-6000UV Test Report. 200-400nm
LMS-6000SF LMS-6000 parameters+Flicker+Plant Lighting parameters+TM-30 350-950nm
LMS-6000I Input and Output Control via RS485 380-780nm
LMS-6000C LMS-6000 parameter without PC software 380-780nm
Standards:
Fully meet CIE 177, CIE-13.3 , Optical-Engineering-49-3-033602, and IEEE.
|
