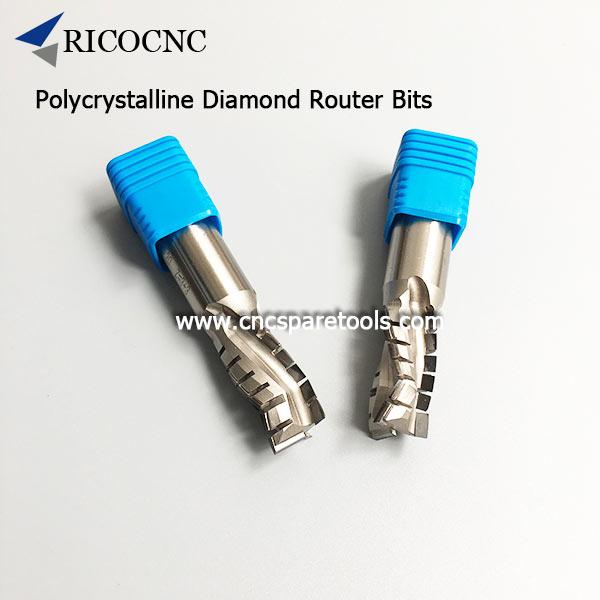

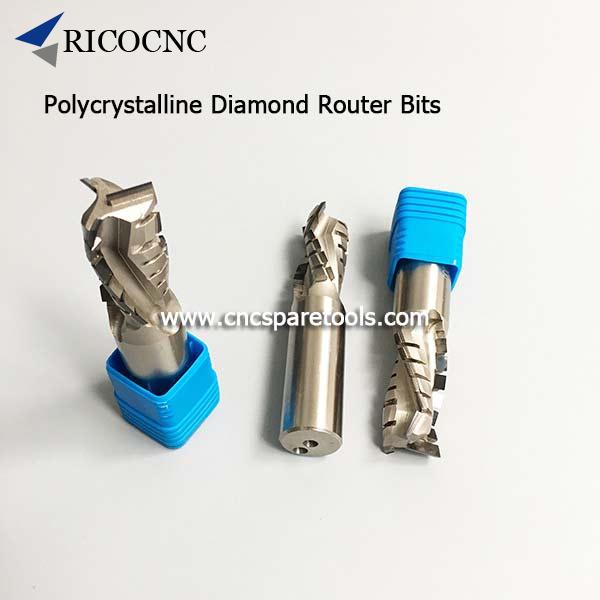

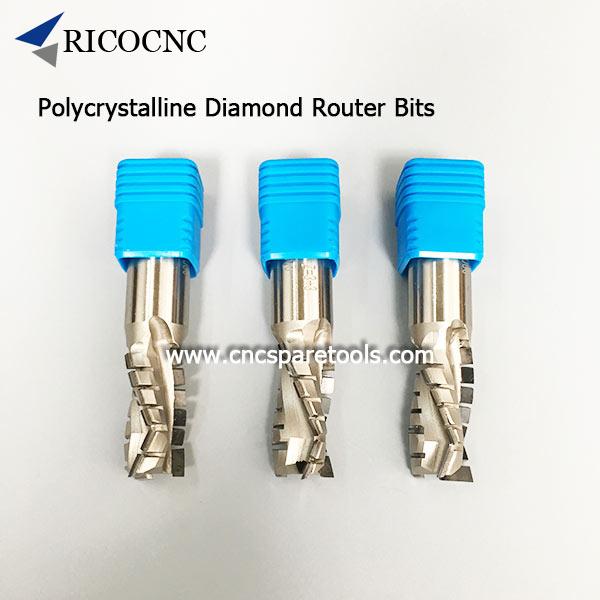

Polycrystalline Diamond Router Bits PCD Cutting Tools for CNC Nesting

Polycrystalline Diamond Router Bits PCD Cutting Tools for CNC Nesting

Model: PCD Spiral Router Nesting Tools Z=3+3

This industrial CNC Polycrystaline Diamond (PCD) router bits is the top of the range PCD tool for CNC nesting. With 3+3 shear cut design feature, this durable cutter ensures a clean finish on both top and bottom surfaces of your work piece. Designed to perform at highest feed rates. Plunge cut facility also.

The router bits are specially designed for industrial CNC applications in a variety of tough, abrasive materials such as particleboard, MDF, veneer, hardwood, plywood and melamine. The bits are ideal for cutting, jointing and rabbeting in these materials.
Our 3-flute diamond bit features a solid carbide tool body and a short upcut and like our 2 flutes it’s suitable for nesting cuts. The cutting edges shear toward the center of the material in an up/down angle, to provide a very clean cut on laminated materials. This bit can be sharpened 6-8 times when used under normal wear conditions.

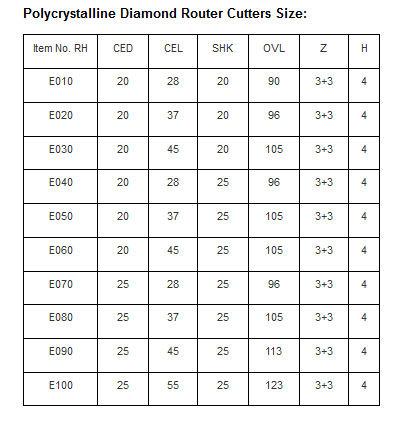

PCD Diamond Router Bit Features:
Blade Material: PCD Tipped
PCD Tip Height: 4 mm
Flutes: 3
Tooth Shape: Axial
Tooth Seating: Straight
Cotting Geometry: Positive
Max RPM: 24000
Re-sharpen: 6-8 times
Applicable Machines: NC or CNC router, or fixed head routers with an auto-feed
Applicable Materials: Raw material, melamine and laminated, particle board, MDF, HPL and veneered panels.
Please Note: PCD tool will require extra user care due to its brittle nature.
