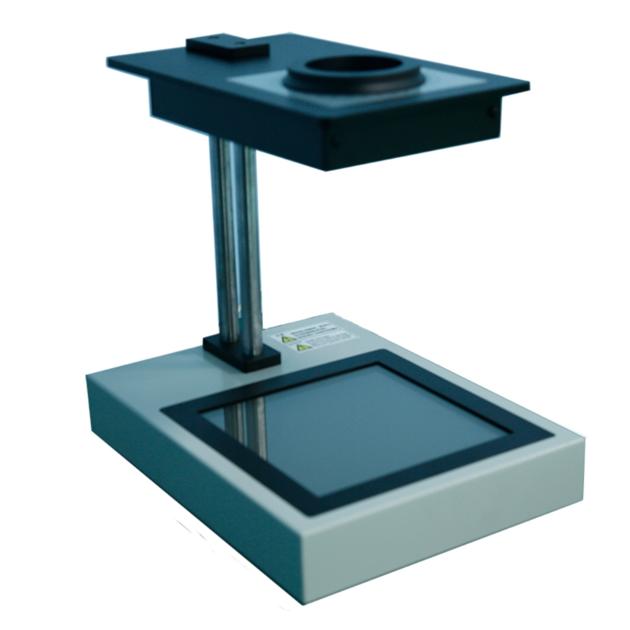

Polariscope detecting stress in glass and Quartz products
| Price: | US$ 2000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shanghai |
Product Details
| Model No.: | PSV-413 | Brand Name: | PTC |
|---|
| Certification: | |
|---|---|
| Specification: |
1.Observe stress distribution in transparent plastic, glass products and optical crystals
2.Measure retardation caused by internal stress in glass and optical crystals |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Detecting object
1. transparent glass products with complex construction.
such as : penicillin bottle, ampoule , mobile phone cover, light tube, light bulb,solar glass ,automobile glass,sapphire, glass container , glass handicraft
2. transparent plastic samples
plastic bottle , cosmetic bottle , beverage bottle, contact lenses, plastic tray， plastic film
3. optical crystals such as quartz , SiC, calcium fluoride
Detecting methods
Sensitive Color Method and Senarmont Method
Specification
Model PSV-413
Size W291×D384×H388mm
Measuring range 0-280nm
Weight 11Kg
Viewing field W200×D200mm
Measure height Max259mm
Light Source Warm white LED light 10W
Power DC 12V(with a AC/ DC adapter)
Others:
1.Polarizing light field intensity : ≥ 120cd/m2 (10W LED lamp)
2.Polarization degree of the polarizing material: ≥ 99%
3.Polarization field: 200*200mm
4.Instrument structure: a 1/4 wave plate in the analyzer and a full-wave plate in the polarizer (wavelength 565nm). Slow axis of the plate is at 90ú to the polarization plane .
5.A dial on the Analyzer is used to measure the rotating angle (range: 0-180ú)
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | Suzhou PTC Optical Instrument Co., Ltd. | ||
| City/State | Kunshan, Jiangsu | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 2008 |
| Member Since: | 2021 | Contact Person | Olivia Shang |
