Polariscope detecting stress in glass and Quartz products (Ref. PSV-413)

Polarized light principle is adopted to observe and analyze the internal stress of transparent plastic and glass products.Meanwhile, Senarmont method is used to measure the internal stress precisely.It is an objective measuring method which avoids manual operation error effectively. At present, the equipment is widely used in the control of transparent plastic and glass products, which is convenient for measuring product stress timely and ensure and improve the product quality.

Function

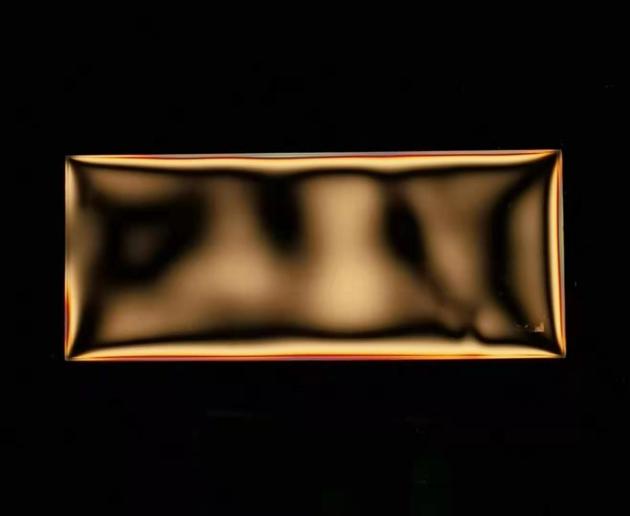

1.Observe stress distribution in transparent plastic, glass products and optical crystals
2.Measure retardation caused by internal stress in glass and optical crystals
Detecting object
1. transparent glass products with complex construction.
such as : penicillin bottle, ampoule , mobile phone cover, light tube, light bulb,solar glass ,automobile glass,sapphire, glass container , glass handicraft
2. transparent plastic samples
plastic bottle , cosmetic bottle , beverage bottle, contact lenses, plastic tray， plastic film
3. optical crystals such as quartz , SiC, calcium fluoride
Detecting methods

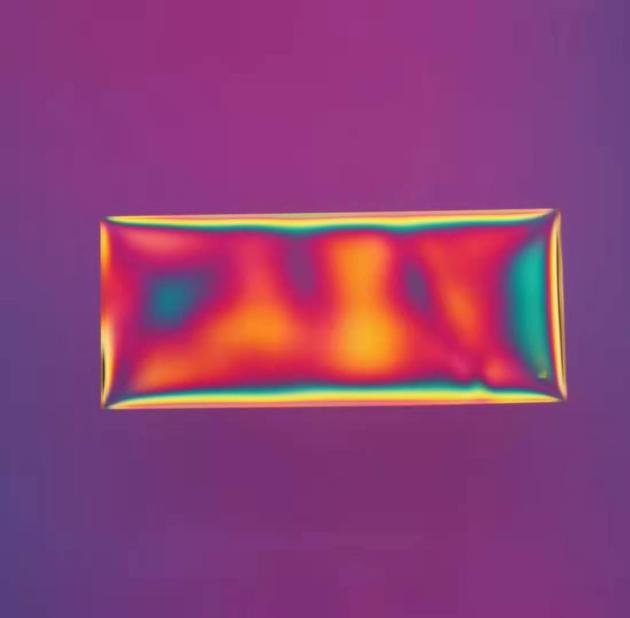

Sensitive Color Method and Senarmont Method
Specification
Model PSV-413
Size W291×D384×H388mm
Measuring range 0-280nm
Weight 11Kg
Viewing field W200×D200mm
Measure height Max259mm
Light Source Warm white LED light 10W
Power DC 12V(with a AC/ DC adapter)
