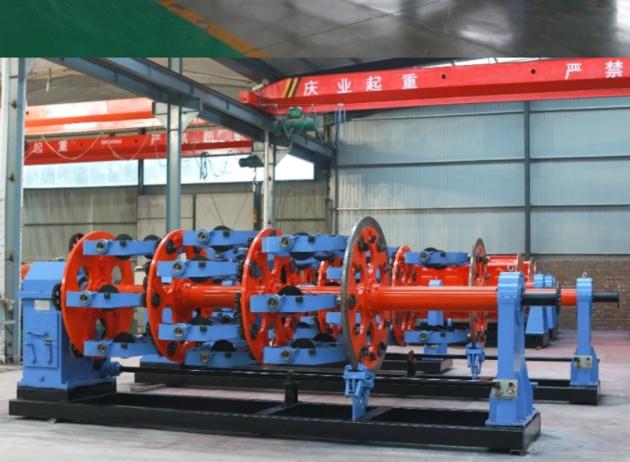

Planetary strander with high speed and quality.18-24 bobbin
| Price: | US$ 80000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | TIANJIN |
Product Details
| Model No.: | JLY-500 | Brand Name: | BEYDE |
|---|
| Certification: | |
|---|---|
| Specification: | The machine is used for stranding control cable, copper cores, ACSR, Aluminum and copper conductor, and needed by big section of steel stranded wire and steel wire rope making |
Packaging & Delivery
| Packaging: | Safety package for container loading |
|---|---|
| Delivery/Lead Time: | 90-100 days after receipt of deposit |
| Production Capacity: | 200SET/YEAR |
Product Description
b) Component: Central pay-off device, mainframes of 6-bobbin, 12- bobbin, 18- bobbin, 24- bobbin, 30- bobbin, die holder, taping device, armouring device, traction, take-up and traverse device, transmission system and electric control system. c) Technical Parameter:
Specification JLY-400 JLY-500 JLY-630
Dia. of inlet wire( mm) 7 8 10
RPM Max speed(r/min) 127 118 85
Stranding pitch(mm) 48-1315 48-1315 58-1280
Taping Speed(r/min) 188-419
Taping Pitch(mm) 10-205
RPM of armouring head 188-419
Pitch of armouring head 10-205
|
