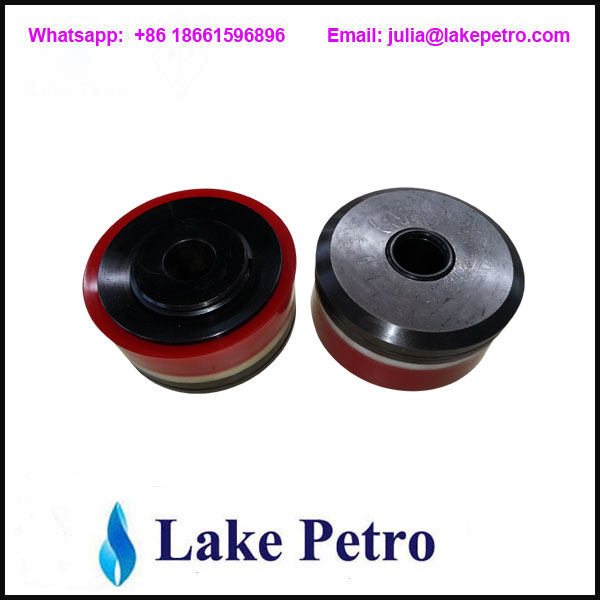

Piston Assembly for PZ-8 Mud Pump

Piston assembly is the expendable parts at the drilling pump hydraulic system, and it is one of the biggest wearing parts of drilling work.
The piston core is made of 42CrMo.
Lake Petro can supply F series,3NB series,9-P-100/13-P-130/12-P-160 series, PZ7/8/9 series of drilling pump piston assembly metric (inch) with various sizes.

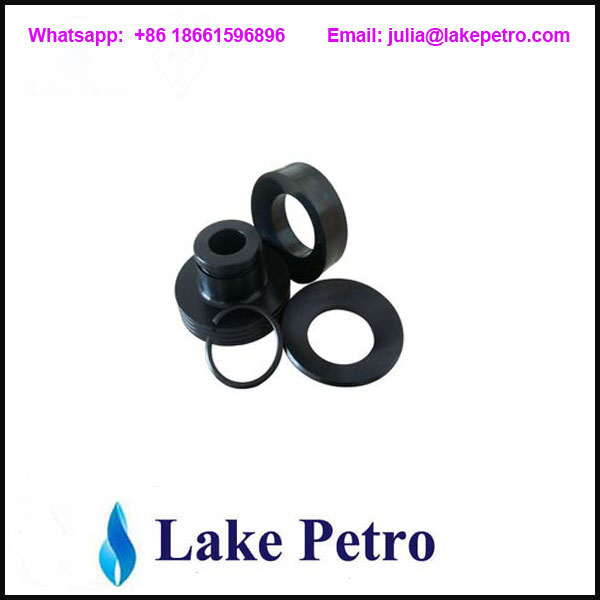

The piston rubber is also called the piston cup, its the expendable parts at the drilling pump hydraulic system, and it is one of the biggest wearing parts of drilling work.

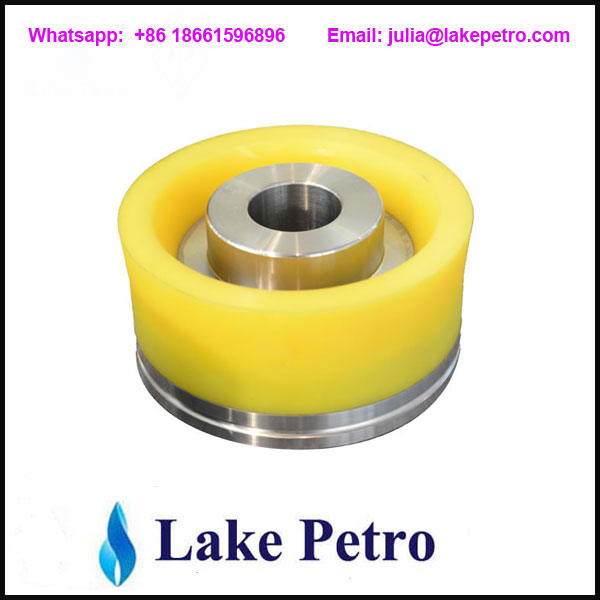

The piston rubber is made of rubber vulcanization. The material of ordinary piston rubber is NBR. But if you use the PU can enlarge the work temperature range.


API 7K Mud Pump Parts:

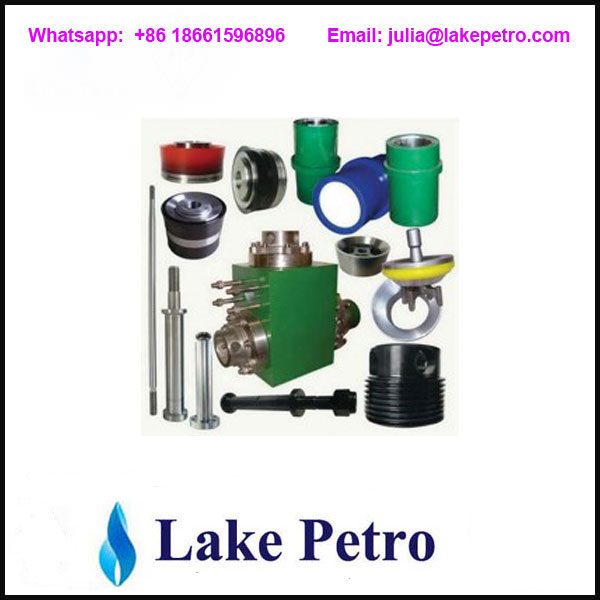

Lake Petro can supply various mud pump expendable parts, including power end assembly, fluid end assembly and its spare parts, which can be easily matched & exchanged with some international famous mud pump brand, such as parts for 3NB series Pump, F series Pump, PZ series Pump, HBRS Pump, BOMCO Pump, EMSCO Pump, NOV P Series Pump, IDECO Pump, etc.

Mud pump fluid end parts include:
A. Module
B. Liner
a) Ceramic liner
b)Bi-metal liner
c)High frequency quenching cylinder liner
d)Cr-plated cylinder liner
e)Liner seal
C. Valve body & valve seat
a)solid forged thru-hole valve body & valve seat
b)friction welding thru-hole valve body & valve seat
c)double support with four or three ribs, valve body & valve seat
d)duplex single-acting valve body & valve seat
e)BOMCO, Lanshi, Lanshi NOV pump, valve body & valve seat
f)Valve Rubber
g)Valve Spring
h)Valve Seat Grab & Gripper Head

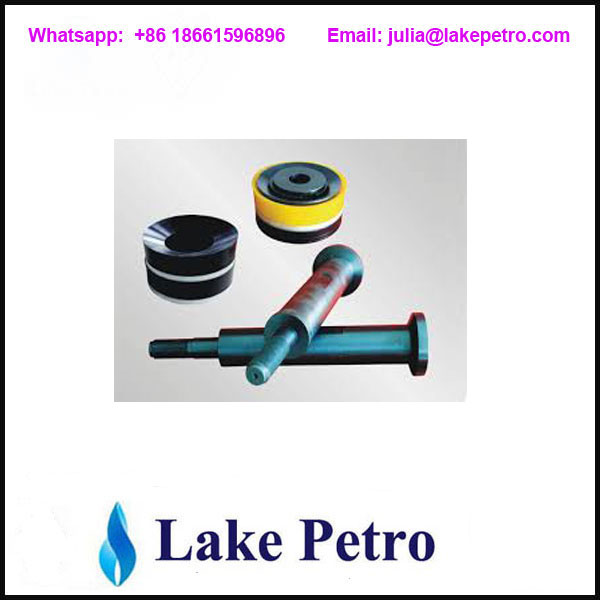

D. Intermediate rod, piston rod, extension rod, pull rod, clamp
a)intermediate rod
b)piston rod, extension rod
c)duplex pump pull rod
d)clamp
E. Piston
a)steel core
b)piston rubber
c)pressing plate, clamp spring
F. Other mud pump fluid end fittings, such as flange, valve bonnet, bonnet press barrel, valve guide, etc.

Mud pump power end parts include:
Crankshaft, gear ring, connecting rod, bearing and main shaft, etc.

High Pressure Parts include:
Discharge End Part of Mud Pump, include Pulsation Dampener, Discharge Manifold, Valve, 5 Ways
