Pilot Brewhouse System Brewing Equipment

Product Details

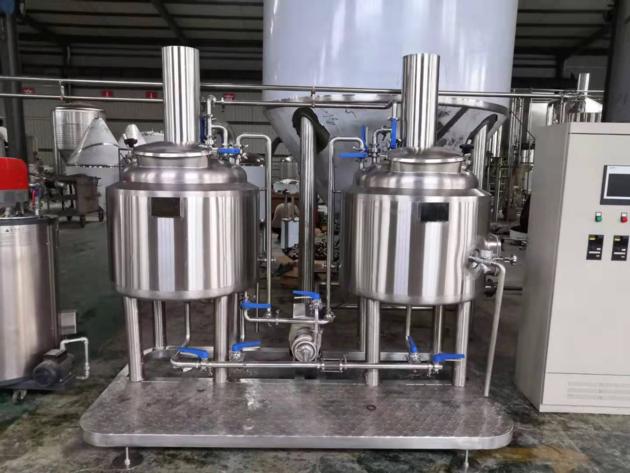

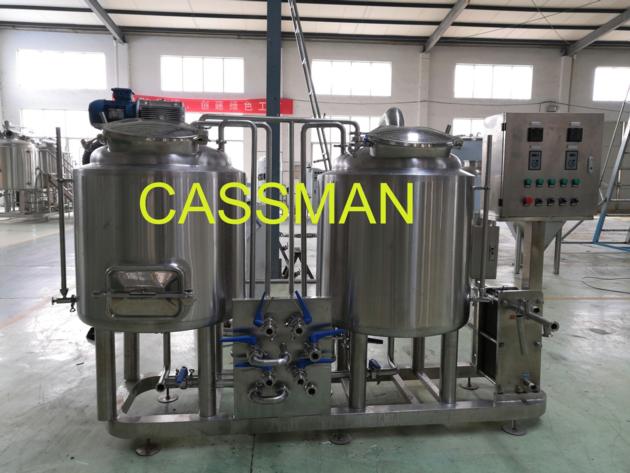

1. 200L electric heating brewhouse system description:

One tank for lauter tun,another tank for mash/kettle/whirlpool.

With wort pump,frequency converter,plate heat exchanger,hop filter,wort hoses,control system and other necessary accessories.

Accept customization.

2. 200L electric heating brewhouse system parameters:

Lauter tun:



Lauter tank with rake system and false bottom

• Working capacity:200L(+25% Head space)

• Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;

• Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;

• 100% TIG welding with pure argon gas shield

• Interior Finish: Pickling passivation

• Insulation:Polyurethane-thickness:80mm.

• Heating: Electricity

• Grain rake with motor and turbine reducer,

• The motor with Frequency converter

• Full size stainless steel top mounted man way

• Side mounted grain outdoor with grain chute

• Laser cutting V-wire False Bottom/Sieve plate,with handle

• Plate thickness:0.7 mm, form:Strip-shaped holes

• 360®coverage CIP spraying ball with 2 pieces

• Easy clean and detachable sparging spray ring

• PT100 temperature sensor

• Adjustable support legs 4 pieces.



Mash/kettle/whirlpool:

Mash/Wort boiling and whirlpool, heated by electric, with Tangential whirlpool inlet

• Working capacity:200L(+25% Head space)

• Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;

• Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;

• 100% TIG welding with pure argon gas shield

• Tangential whirlpool inlet

• Interior Finish: Pickling passivation

• Insulation:Polyurethane-thickness:80mm.

• Heating way: electricity

• Level gauge

• Full size stainless steel top mounted man way

• 360®coverage CIP spraying ball with 2 pieces

• PT100 temperature sensor

• Adjustable support legs 4 pieces.
