Photovoltaic Electric Cable / Solar Cable
| Price: | US$ 1000 / Roll |
|---|---|
| Minimum Order: | 1km |
| Payment Terms: | T/T; L/C |
| Port of Export: | Shanghai / Ningbo |
Product Details
| Model No.: | Brand Name: | Qinshan |
|---|
| Certification: | ISO, TUV, SONCAP, CCC, CE |
|---|---|
| Specification: | U0/u=600/1000V AC; 1000/1800V DC |
Packaging & Delivery
| Packaging: | As per requirement |
|---|---|
| Delivery/Lead Time: | 20 days |
| Production Capacity: | 100000 |
Product Description

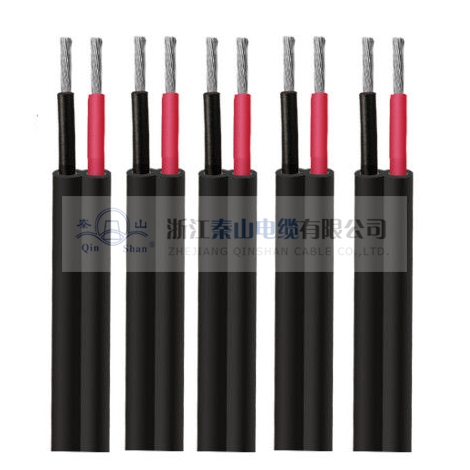

Photovoltaic Electric Cable / Solar Cable
Conductor: Tinned copper strands, according to VDE 0295/IEC 60228 class 5
Insulation: Polyolefin copolymer electron-beam corss linked
Jacket: Polyolefin copolymer electron-beam cross linked
Jacket colour: All colours
Rated Voltage: U0/u=600/1000V AC; 1000/1800V DC
Test Voltage: 6500V, 50Hz, 5 minutes
Working Temperature: -40℃ to +120℃
Short Circuit Temperature: 280℃
Bending Radius: Fixed installation >4 times of diameter ; Occasionally moved >5 times of diameter
Materaial properties / Standard: Fire performance: IEC 60332-1
Smoke emission: IEC 61034 ; EN50268-2
Low fire load: DIN 51900
Approvals: VDE-AR-E 2283-4 PV1-F
Application standards: UNE 21123; UNE 20.460-5-52, UTEC 32-502
|
