Perforated Cable Tray

Perforated Cable Tray - Different Materials and Side Wall Types

Perforated cable tray has a similar structure with the cable trunking. There are a series of holes on the bottom and side walls. It has different hole patterns, such as oval, slot, round and other types. The holes make the perforated cable tray a good air circulation and heat dispersion.

Perforated cable tray has different types according to different side walls. The main side walls can be R type inside flange, R type outside flange, C type inside flange, C type outside flange and P type. The various types can let the perforated cable tray suit more applications and supply more choice for the customers.

A stainless steel inside flange R type perforated cable tray on the white background.
DPCT-01: Inside flange R type.A stainless steel outside flange R type perforated cable tray on the white background.
DPCT-02: Outside flange R type.
A stainless steel inside flange C type perforated cable tray on the white background.

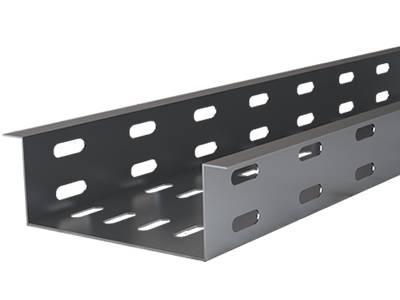

DPCT-03: Inside flange C type.A stainless steel outside flange C type perforated cable tray on the white background.
DPCT-04: Inside flange C type.

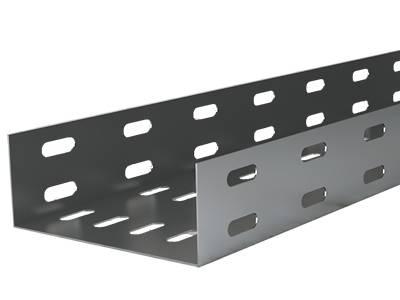

A stainless steel P type perforated cable tray on the white background.
DPCT-05: P type.
Specifications of perforated cable trays
Item Width
(mm) Height
(mm) Length
(mm)
PCT-01 50 15 3000
PCT-02 100 15 3000
PCT-03 150 15 3000
PCT-04 200 15 3000
PCT-05 250 15 3000
PCT-06 300 15 3000
PCT-07 450 15 3000
PCT-08 600 15 3000
PCT-09 50 50 3000
PCT-10 100 50 3000
PCT-11 150 50 3000
PCT-12 200 50 3000
PCT-13 250 50 3000
PCT-14 300 50 3000
PCT-15 450 50 3000
PCT-16 600 50 3000
PCT-17 75 75 3000
PCT-18 100 75 3000
PCT-19 150 75 3000
PCT-20 200 75 3000
PCT-21 250 75 3000
PCT-22 300 75 3000
PCT-23 450 75 3000
PCT-24 600 75 3000
PCT-25 100 100 3000
PCT-26 150 100 3000
PCT-27 200 100 3000
PCT-28 250 100 3000
PCT-29 300 100 3000
PCT-30 450 100 3000
PCT-31 500 100 3000
PCT-32 600 100 3000
Features of perforated cable tray

Good heat dispersion. The holes on the bottom and side walls make the perforated cable ladder a good heat dispersion.
Various accessories. various to adapt to difficult architectural designs to accommodate changes indirection and elevation of cable runs.
Durable and long service life. Stainless steel material and various corrosion resistant surface treatment can let the perforated cable tray have a long service life.
Easy to install and uninstall. The perforated cable tray has simple structure and we can supply the matched accessories for easy installation.
High strength. All the perforated cable trays are made of high quality material, which has high tensile strength to load heavy cables.
Hole pattern design provide maximum flexibility for positioning cable ties.
