ParsRos Automatic Cement Compression & Flexure Testing Machines

ParsRos Automatic Cement Compression & Flexure Testing Machines

PRODUCT CODE

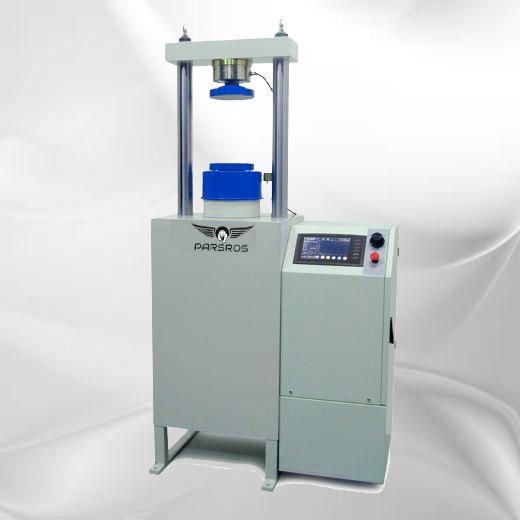

PRS-CM6331 250 kN Automatic Cement Compression Testing Machine 220-240 V 50-60 Hz

PRS-CM6331 /110 250 kN Automatic Cement Compression Testing Machine 110 V 60 Hz

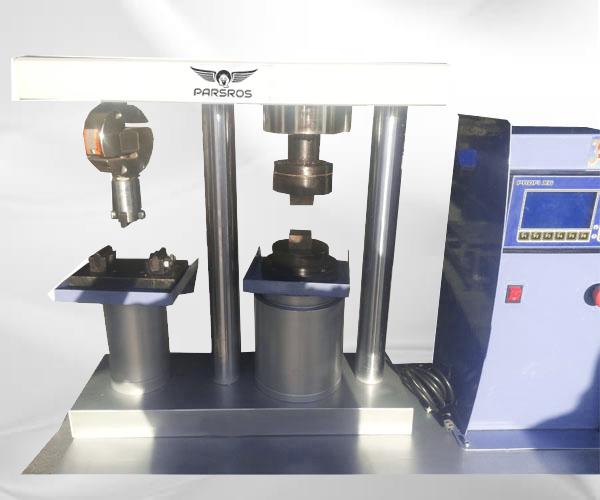

PRS-CM6431 15/250 kN Automatic Cement Flexure/Compression
Testing Machine 220-240 V 50-60 Hz

PRS-CM6431 /110 15/250 kN Automatic Cement Flexure/Compression Testing Machine 110 V 60 Hz

PRS-CM0116 Upper Loading Platen with Ball Seating Assembly
Ø:165 mm and Lower Loading Platen, Ø:165 mm

PRS-CM0120/A Flexure Jig Assembly to test 40x40x160 mm mortar prisms,ASTM

PRS-CM0120/E Flexure Jig Assembly to test 40x40x160 mm mortar prisms, EN

PRS-CM0121/A Compression Jig Assembly to test 50 mm (2”) mortar cubes, ASTM

PRS-CM0121/E Compression Jig Assembly to test portions of 40x40x160 mm mortar prisms, EN

PRS-CM0122 Compression Jig Assembly BS, to test 70,7 mm mortar cubes


The PARSROS Automatic range of single testing chamber and double testing chamber compression and flexure testing machines have been designed for reliable and consistent testing of mortar samples. These compression and flexure testers are the results of continuous applications and research studies to upgrade the machines with the latest technologies and conform the current standards EN 196-1, 459-2, 1015-11, 13454- 2; ASTM C 109, C348, C349 and BS 3892-1, 4551-1 in terms of its technical properties taking into account client requirements by using suitable accessories. These machines also meet the requirements of CE norms for safety and health of the operator.
Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately.
The PARSROS automatic cement compression and flexure testing machines allow less experienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus. The only required operations are;
• Setting test parameters, including pace rate (only required when the specimen type is changed.)
• Choosing the compression or flexure frame by using the changeover valve.
• Pressing the START button on the control unit.
• The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
• Automatically saves the test parameters and test results.
The PARSROS automatic cement compression and flexure testing machines consist of very rigid two column single or double chamber frames, automatic hydraulic power pack with data acquisition and control system
Power Pack
Automatic Hydraulic Power Pack, dual stage, controlled by is designed to supply the required oil to the load frames for loading. Very silent power pack can load the specimen between 50 N/sec to 2.4 kN/sec with an accuracy of ¯5%. A Rapid approach pump is supplied as standard. Safety valve (maximum pressure valve) is used to avoid machine overloading.
Motor
The motor which drives the dual pump is an AC motor, 380 V, 50-60 Hz, 3 phase, 1 hp and 0.75 kW and it is controlled by Omron J7 motor inverter. The variation in the oil flow is executed with the variation of the rotation speed of the motor.

Distribution Block
A distribution block is used to control the oil flow direction supplied by the dual stage pump, the following parts are fitted to the distribution block;
a - Solenoid valve
b - Safety valve (maximum pressure valve)
c - Transducer
d - Low pressure gear pump
e - High pressure radial piston pump
Dual Stage Pump
The dual stage pump is formed by two groups;
1-Low pressure gear pump
2-High pressure radial piston pump.
On the dual stage pump, a high delivery, low pressure gear pump is used for rapid approach, while a low delivery, high pressure radial piston pump is used for test execution. The Rapid approach facility shortens the time interval from piston start until the upper platen touches to the specimen. This excellent feature helps to save a lot of time when a large number of specimens are going to be tested.
Oil Tank
The tank includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. It has 20 L capacity. Hydraulic motor oil, number 46, must be used.
