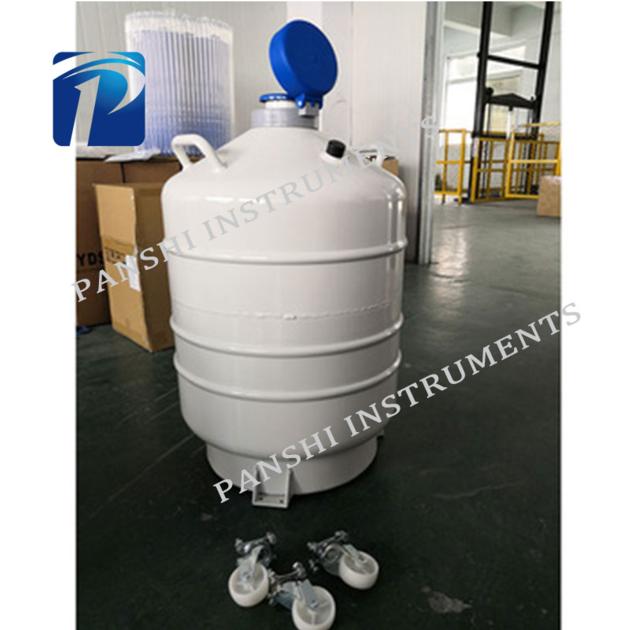

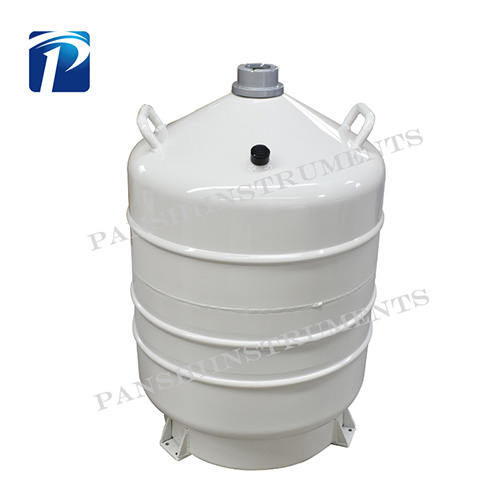

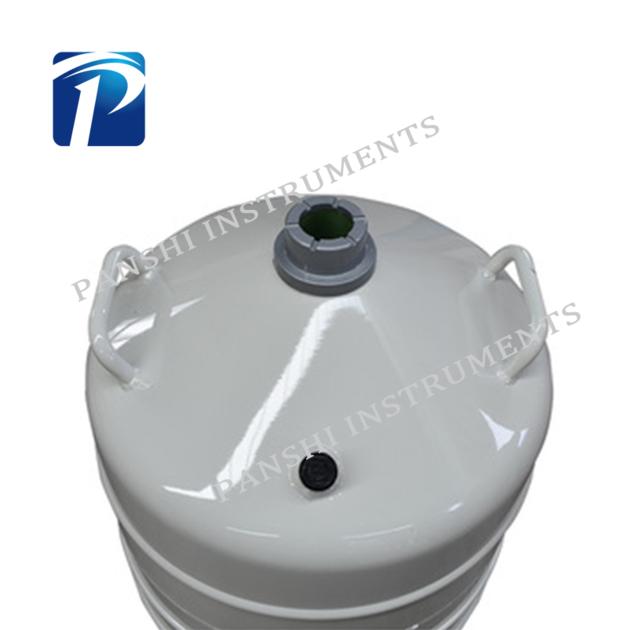

Panshi liquid nitrogen pressure vessel price /food grade liquid nitrogen
| Price: | US$ 630 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Single FOB interval price |
| Port of Export: | Qingdao, Beijing, Tianjin, Shanghai, Ningbo, Shenzhen port |
Product Details
| Model No.: | YDS-50 | Brand Name: | PanShi |
|---|
| Certification: | ISO 9001, CE |
|---|---|
| Specification: |
Capacity 50L
Neck diameter 50mm Height 850mm Outer diameter 500mm canisters number 6pcs canister outer diameter 38mm Canister total height 125mm canister height 565mm Empty weight 22 kg Lockable lid and protection cover Included. (optional) Static holding time 147-189 days straw capacity / single layer 0.25ml 1190pcs 0.5ml 642pcs straw capacity / double layer 0.25ml 2382pcs 0.5ml 1284pcs ISO/CE Approved Package carton 54*54*93cm, gross weight 26.5kg |
Packaging & Delivery
| Packaging: | 1.Export standard packaging. 2. Each packed with insulated cover. 3. one piece in one carton |
|---|---|
| Delivery/Lead Time: | 3-10 Days |
| Production Capacity: | 2000 pieces/piece per month |
Product Description

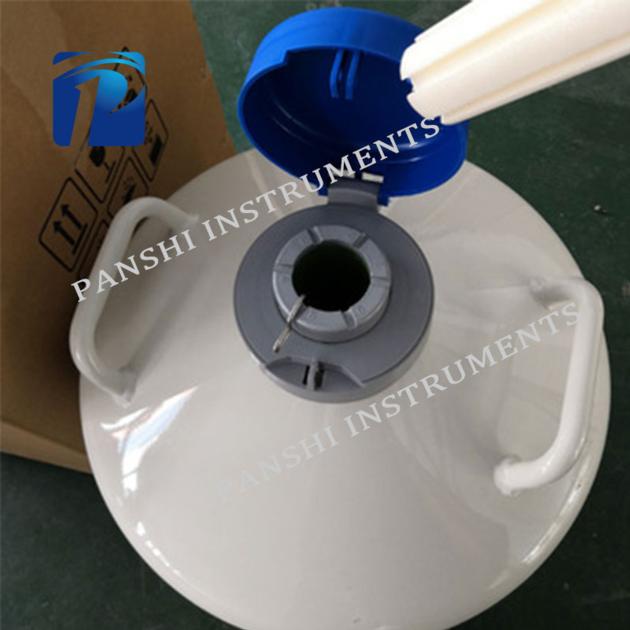

Xinxiang Panshi YDS-series products are mainly made up of outer shell, inner vessel, neck tube, multi-layer isolating material and canisters.
1.The outer shell and inner vessel are made of the aluminum alloy plate featuring light weight, high cryogenic strength and corrosion resistance.
2.The neck tube is made of glass-fiber reinforced plastics featuring of high mechanical strength and low heat conductivity.
3.The multi-layer insulation is composed of the reflecting screen of aluminum foils with high reflectivity and insulation material with low heat conductivity and low gas-passing speed to reduce heat radiation.
4.The jacket between the outer shell and inner vessel is of high vacuum to prevent thermal convection. Moreover, an adsorbent with a high adsorbing capacity at the cryogenic temperature is used to ensure the long-term stable and reliable performance of the dewar with more than five-year life service.
If you are interested in the Liquid nitrogen container,Liquid nitrogen tank,Dewar tank or need to consult, please click on our online customer service.Welcome sending your inquiry.
