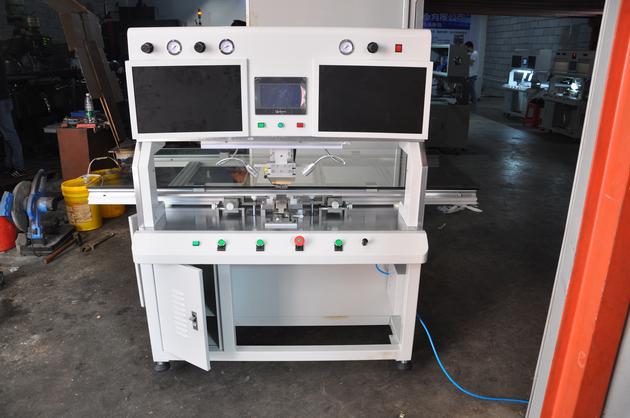

Panasonic LCD TV Repair Machine TAB Bonding Machine
| Price: | US$ 6800 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | TT,Paypal |
| Port of Export: | Huangpu |
Product Details
| Model No.: | YESSH | Brand Name: | YES |
|---|
| Certification: | CE UL ISO |
|---|---|
| Specification: |
Screen failure: Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on., display is not complete, low brightness, normal after a period of time
display screen or white flowers, weak problems such as the equipment for repair are available. |
Packaging & Delivery
| Packaging: | Plywood case |
|---|---|
| Delivery/Lead Time: | 3-5 days after payment receipt |
| Production Capacity: | 100 sets per month |
Product Description
TV Screen TAB Bonding Machine Features:
1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.
2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.
3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.
4, under the high magnification camera system, ensure that the product clearly counterpoint.
5, powerful software, perfect the system debugging, automatically detect fault and alarm function.
LCD Television Screen Repair ACF Bonding Machine 208-D Technical Parameters
power: AC220V¯10%, 50Hz, 1200W
LCD size: 15”-85”
Panel thickness: 0.3mm-1.1mm(single layer glass)
IC No.: Multi/panel
Bonding direction: X or Y
Boning time: TFT, 1.8s/chip
Capacity: TAB, 380 pcs/H
Bonding accuracy: ¯1.5um
Positioning accuracy: ¯0.5um
work environment: 10~60℃, 40%~ 95%
work pressure: 0.5 ~ 0.7 Mpa
welding stress: 5 ~ 28 KGF
temperature Settings: one to four paragraphs
temperature Settings: RT ~ 399 ℃
hot pressing time: 1 ~ 99 s
hot-pressing precision: pitch 45um
production capacity: 35 s/TAB or COF package
hot pressing head size: MAX 60 x 8 mm
the fuselage size: 1508 mm (L) x 1245 mm (W) x 1483 mm (H)
weight: about 350 kg
|
