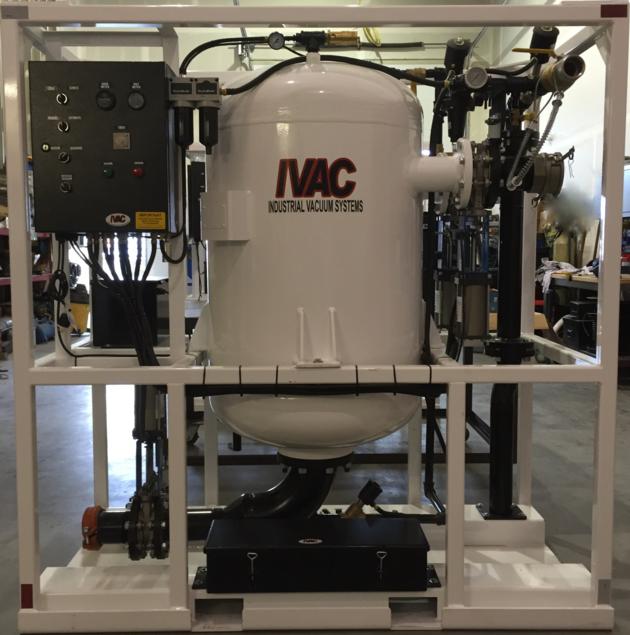

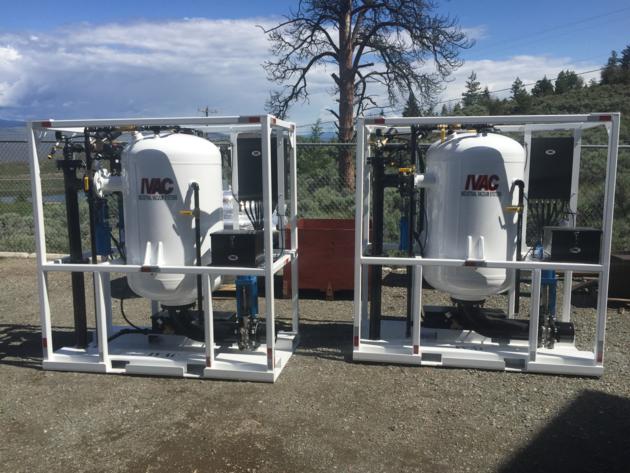

PV500 Industrial Vacuum System
| Price: | Contact for latest price |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | CC |
| Port of Export: |
Product Details
| Model No.: | PV500 | Brand Name: | IVAC |
|---|
| Certification: | |
|---|---|
| Specification: |
Air Consumption 500 C.F.M @ 100 P.S.I
Vacuum Loading rate 58.7 S.C.F.M @ 25 “ H.G Control Power(batteries)12 Volt D.C Charging with 110 or 220 volt A.C Operator Controls (Man/Auto Vacuum/Discharge) Height 72” Width 36” Length 72” Vacuum Inlet 4” Cam Lock Discharge Outlet 4” Victaulic Air Inlet 2” N.P.T Pressure Vessel Certified Skid Mounted c/w forklift lift points The PV500 Vacuum unit cycles from vacuum to discharge when the pressure vessel is filled with the material being vacuumed. This is set by the operator on a timer located in the control box. Overfilling will not damage the unit. Material being vacuumed does not come in contact with any moving parts. Handles wet or dry material, sludges, slurries, sand, gravel, and rock. Batteries are good for approximately one-month continuous operation before recharge. Virtually maintenance free as there are only three moving parts (knife, gate, valves). There are no filters to clean or replace. Pumping up vertically over a typical pumps 28 feet is easily achieved with our suction assistant. Weight 2400 LBS |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
IVAC Industrial Vacuum Systems Ltd. heavy-duty industrial vacuum units are known as being the most reliable and safest in the industry and are great for sumps, ditches, conveyor gallery, crusher station, loading pocket, and take-up tower clean-ups. Units are capable of handling the most difficult of materials, wet or dry, and feature a unique delivery system as well as a powerful vacuum. Powered by compressed air, IVAC units easily move products such as gravel, sand, rock, slimes and sludge to any desired location. Usable as fixed or portable vacuum systems, the units are able to transfer material short distances or kilometres to remote locations through a pipeline. IVAC's industrial vacuum/pneumatic conveying units offer unique solutions for your clean-up requirements. The PV500 is IVAC’s deluxe sand, sump, rock, slurry and water handling industrial vacuum system.
|
