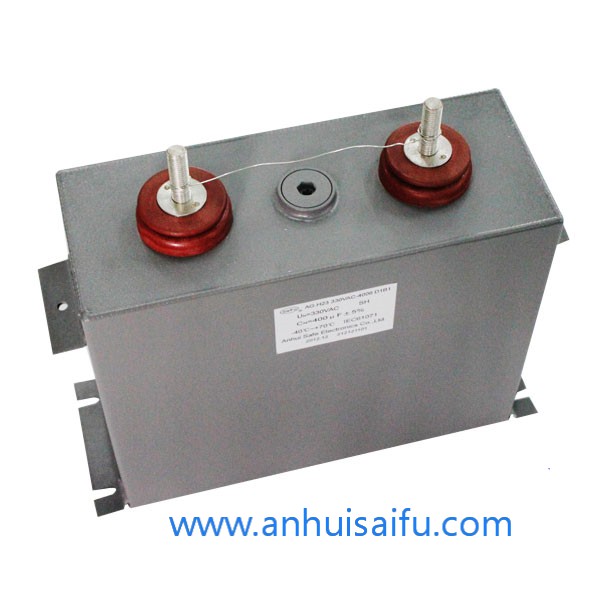

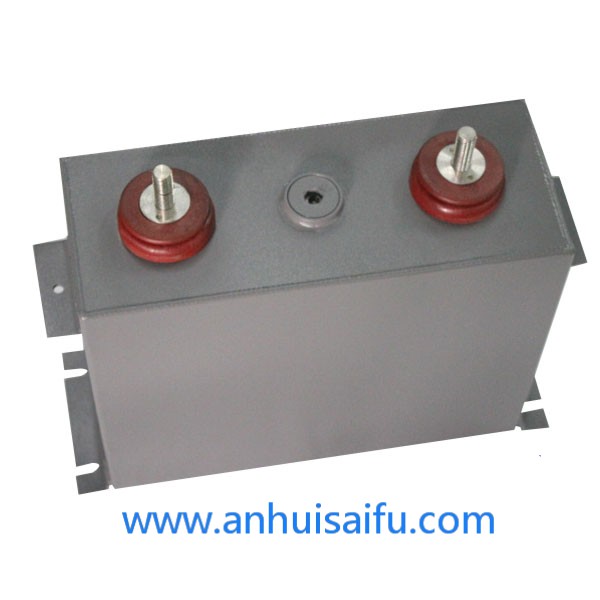

PULSE capacitor 1500UF 1500VDC
| Price: | US$ 100 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, L/C, Western Union |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | DC-LINK | Brand Name: | Saifu |
|---|
| Certification: | |
|---|---|
| Specification: |
Magnetizier Capacitor/Pulse CapacitorTechnical Specification
Temperature Range -40®C~+85®C Capacity Range 100μF~12000μF Capacitance deviation ¯5%(J),¯10%(K) Voltage 500VDC~15000VDC Dielectric 1.5UN/60S Dissipation tgδ≤0.002(at 1KHz) Insulation resistance CxRs≥5000S(at20®C 100V.DC 60S) Shock current capability dv/dt>50v/μs Flammability UL94V-0 Stray inductance ≤30nH Effective Current 10~80A Reference Standard Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1 Case components aluminum,plastic,304 stanless steel Terminals tinned brass nut or screws Installation whatever installation Failure rate 50 FIT |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Pulse capacitor Features
Specific can density, capacitors energy storage is strong
Low ESR, high ripple current handling capabilities and Large current shock
Low Inductance, Dv/dt large, frequency characteristics is good.
Self-healing property
Long lifetime(≥100000h)
High vacuum note oil, heat dissipation of capacitor performance is stable and reliable
Huge capacitance
High thermal conductivity
DC Filter CapacitorApplications
Used for rail traffic traction or the ship drive converter.
Used for various power industry inverter, such as high voltage variable frequency drive device
Used for the harmonic management, SVG equipment.
1. Metallized polypropylene film convolute, special internal structure and non-inductive structure. Copper screw leads, fire-retardant plastic shell, or heat tape wrapped, epoxy resin sealed. 2. High frequency low ESR, can stand strong current, a very small parasitic inductance. 3. Suit inverter current, continuous current, switching power supply, high frequency welding machine and others high capacity resonant circuit.
|
