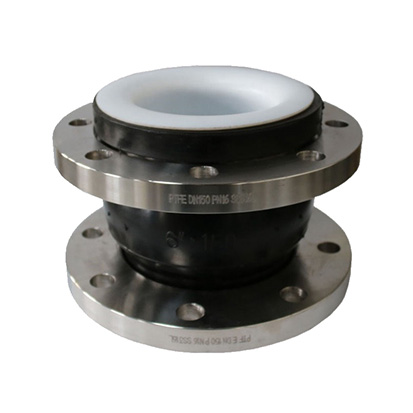

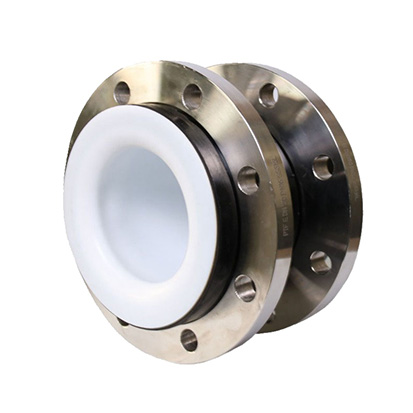

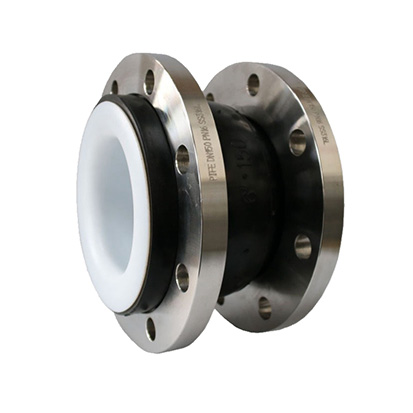

PTFE flexible rubber expansion joint

PTFE flexible rubber expansion joint
Single Rubber Joint
Pipe Expansion Joint

1. Acid resistance Flexible Rubber Joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement, axial expansion, etc.
2. According to different materials manufacture, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive resistance, oil resistance, heat resistance, adapt to many mediums and different environment.
3. Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.
4. If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.
5. If pipeline pressure is high, use bolt connect the flange both ends.
6. Flange connection standard is GB4216.3-4216.5.
No. Part Meterial
1 Body NR, CR, IIR, NBR, FKM, EPDM
2 Inner & Outer Rubber NR, CR, IIR, NBR, FKM, EPDM, PTFE
3 Body Carcass Nylon cord fabric
4 Reinforcing Ring Multi-strand coppering steel wire
5 Flange Cast and forged carbon steelStainless steelPlastic (CPVC, PVDF, PPH, UPVC, RPP)
MAIN DATA
Nominal Diameter(DN) Length L Axial displacement Horizontal Isplacement Angular deflection
mm inch mm Extension Compression mm (a1+a2)
32 1¼ 95 6 9 9 15º
40 1½ 95 6 10 9 15º
50 2 105 7 10 10 15º
65 2½ 115 7 15 11 15º
80 3 135 8 19 12 15º
100 4 150 10 19 13 15º
125 5 165 12 20 13 15º
150 6 180 12 25 14 15º
200 8 210 16 25 22 15º
250 10 230 16 25 22 15º
300 12 245 16 25 22 15º
350 14 255 16 25 22 15º
400 16 255 16 25 22 15º
450 18 255 16 25 22 15º
500 20 255 16 25 22 15º
600 24 260 16 25 22 15º
700 28 260 16 25 22 15º
800 32 260 16 25 22 15º
900 36 260 16 25 22 15º
1000 40 260 18 26 24 15º
1200 48 260 18 26 24 15º
1400 56 350 20 28 26 15º
1600 64 350 25 35 30 10º
1800 72 350 25 35 30 10º
2000 80 420 25 35 30 10º
2200 88 420 25 35 30 10º
2400 96 420 25 35 30 10º
2600 104 450 25 35 30 10º
2800 112 450 25 35 30 10º
3000 120 500 25 35 30 10º
