PTFE Full lined flanged butterfly valve D341F

Price:	US$ US$ 100 / Piece
Minimum Order:	1
Payment Terms:	LC,TT
Port of Export:	wenzhou

Product Details

Model No.:	D341F	Brand Name:	Xinsy

Certification:
Specification:	Main External and Connecting Dimensions PN 10~16 Nominal diameter DN Outline Dimension Connection Size L H2 H1 1.0MPa 1.6MPa D D1 z-Φd D D1 z-Φd 50 108 143 85 160 125 4-Φ18 160 125 4-Φ18 65 112 157 93 180 145 4-Φ18 180 145 4-Φ18 80 114 178 100 195 160 4-Φ18 195 160 8-Φ18 100 127 185 110 215 180 8-Φ18 215 180 8-Φ18 125 140 206 120 245 210 8-Φ18 245 210 8-Φ18 150 140 225 160 280 240 8-Φ23 280 240 8-Φ23 200 152 275 245 335 295 8-Φ23 335 295 12-Φ23 250 165 326 260 390 350 12-Φ23 405 355 12-Φ26 300 178 333 300 440 400 12-Φ23 460 410 12-Φ26 350 190 393 320 500 460 16-Φ23 520 470 16-Φ26 400 216 438 330 560 515 16-Φ26 580 525 16-Φ30 450 222 488 380 615 565 20-Φ26 640 585 20-Φ30 500 229 540 390 670 620 20-Φ26 715 650 20-Φ33 600 267 615 450 780 725 24-Φ30 840 770 20-Φ36 700 292 660 480 895 840 24-Φ30 910 840 24-Φ36 800 318 720 580 1010 950 24-Φ34 1020 950 24-Φ39 900 330 785 625 1110 1050 28-Φ34 1120 1050 28-Φ39 1000 410 900 660 1220 1160 28-Φ34 1255 1170 28-Φ42 1200 470 1070 780 1450 1380 32-Φ41 1485 1390 32-Φ48

Certification:

Specification:

Main External and Connecting Dimensions PN 10~16

Nominal
diameter
DN Outline Dimension Connection Size
L H2 H1 1.0MPa 1.6MPa
D D1 z-Φd D D1 z-Φd
50 108 143 85 160 125 4-Φ18 160 125 4-Φ18
65 112 157 93 180 145 4-Φ18 180 145 4-Φ18
80 114 178 100 195 160 4-Φ18 195 160 8-Φ18
100 127 185 110 215 180 8-Φ18 215 180 8-Φ18
125 140 206 120 245 210 8-Φ18 245 210 8-Φ18
150 140 225 160 280 240 8-Φ23 280 240 8-Φ23
200 152 275 245 335 295 8-Φ23 335 295 12-Φ23
250 165 326 260 390 350 12-Φ23 405 355 12-Φ26
300 178 333 300 440 400 12-Φ23 460 410 12-Φ26
350 190 393 320 500 460 16-Φ23 520 470 16-Φ26
400 216 438 330 560 515 16-Φ26 580 525 16-Φ30
450 222 488 380 615 565 20-Φ26 640 585 20-Φ30
500 229 540 390 670 620 20-Φ26 715 650 20-Φ33
600 267 615 450 780 725 24-Φ30 840 770 20-Φ36
700 292 660 480 895 840 24-Φ30 910 840 24-Φ36
800 318 720 580 1010 950 24-Φ34 1020 950 24-Φ39
900 330 785 625 1110 1050 28-Φ34 1120 1050 28-Φ39
1000 410 900 660 1220 1160 28-Φ34 1255 1170 28-Φ42
1200 470 1070 780 1450 1380 32-Φ41 1485 1390 32-Φ48

Packaging & Delivery

Packaging:
Delivery/Lead Time:	30-45 days
Production Capacity:	10000

Product Description

Main parts and materials

Part name Material
Upper and lower valve body Cast iron/Cast steel/Stainless steel/Lining F4/F46
Valve seat F4/F46
With lever disc plate Fulling (WCB)F4/F46,Half lining(stainless steel)/F4/F46
Liner Silicone rubber
Wormgear handle Qt400-15 Nodular cast iron, Aluminum alloy

PTFE-lined Butterfly Valve Standard

Technical specification
Design standard GB12238
Structure length GB12221
Flange standard JB/T79-94
GB9113.1-26
Inspection and test GB/T13927
Drive mode Wormgear, Manual, Electric, Pneumatic

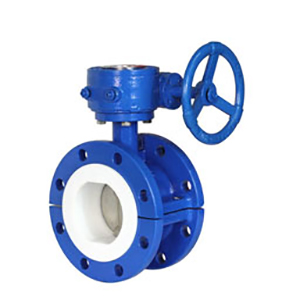

PTFE Full lined flanged butterfly valve D341F
