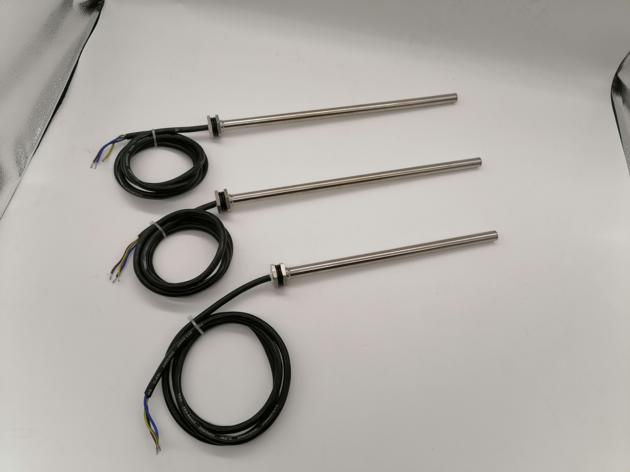

PTC Tubular Heaters for water heater

1.Application: Tubular PTC heater for towel drier, electric water heater, ventilator
2.Characteristics
(1)Self-regulation PTC elements. Heater will not be damaged or get fire even if under the condition without water flow.
(2)Less power aging rate. Energy-saving, power will be adjusted automatically by water temperature.
(3)Voltage can be designed as client request from 12-265VAC.
(4)Housing material can be made as client request like aluminum, stainless steel, cooper, or titanium to suit for different application.
(5)Diameter can be ranged from 5-25 mm. Length can be ranged from 10-1200mm. Special requirements can be customized.
3.Technical data
MODEL Diameter（mm） L（mm） Cold L（mm） Heat L（mm） P（W）
V(VAC)
C-200W-240VAC Φ12 190 45 145 200 240
C-300W-240VAC Φ12 350 45 305 300 240
C-500W-240VAC Φ12 460 45 415 500 240
C-600W-240VAC Φ12 460 45 415 600 240
C-750W-240VAC Φ12 590 45 545 750 240
C-1KW-240VAC Φ12 630 45 585 1000 240
MODEL Diameter（mm） L（mm） P（W） V(VDC)
C-45W-30VDC Φ9 97.3 40~50 30
C-55W-30VDC Φ9 97.3 50~60 30
C-55W-40VDC Φ9 129 50~60 40

Company introduction
Shanghai PAKE THERMISTOR Ceramics Co., Ltd. , founded in 2001, is committed to the development and production of PTC elements and PTC assembly heaters. The products are widely used in air-conditioner, warmer, bath heater, mosquito repellent device, hairdressing appliances, electric vehicles, medical treatment,water-heating for swimming pool and etc.
