PDE-G Series 1500-3000W dc/dc converter
Price: | US$ 510 / Piece |
---|---|
Minimum Order: | 10 |
Payment Terms: | TT/LC/Paypal/Western union |
Port of Export: | Shanghai |
Product Details
Model No.: | PDE2000-550S14-G | Brand Name: | PENGTU |
---|
Certification: | CE,ISO9001 |
---|---|
Specification: |
PDE-G Series 1500-3000W dc/dc converter.Product details are as follows: ※Features ●Π type input filter ●High Output current and power ●Design for high reliability, long lifetime ●Wide range of power, easy to upgrade ●Easy installation ●Full load efficiency up to 90% Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load. |
Packaging & Delivery
Packaging: | Put in the carton and make transportation safety measures. |
---|---|
Delivery/Lead Time: | 15days |
Production Capacity: | 1000pieces/month |
Product Description
PDE-G Series 1500-3000W dc/dc converter.Product details are as follows: ※Features
●Π type input filter
●High Output current and power
●Design for high reliability, long lifetime
●Wide range of power, easy to upgrade
●Easy installation
●Full load efficiency up to 90%
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
300VDC (Normal Rated Value): 200 ~ 400 VDC
550VDC (Normal Rated Value): 450 ~ 750 VDC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5~100A for option
●Output Voltage ………………………………24~48V
●Power ……………………………………………1500-3000w
※General Characteristic
●Switching frequency ………160-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

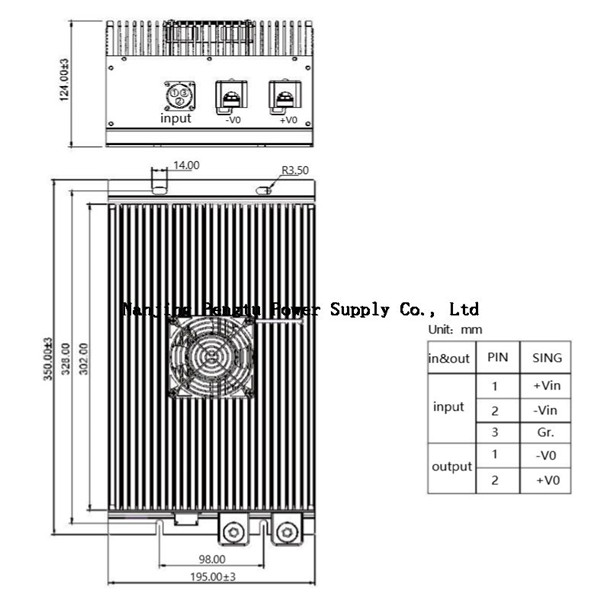

※Dimensions:350.00*195.00*124.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) Input V. range (vdc) Output V.(V) Output Curr.(A) Ripple (mv) Efficieency (Typ) Models
SING 300 200-400 24 125 200 86% PDE3000-300S24-G
550 450-750 14 142 200 92% PDE2000-550S14-G
550 450-750 27 111 200 93% PDE3000-550S27-G
Remark:(1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.
(2)Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
