PDE-C Series 500-600W 24v dc dc converter

PDE-C Series 500-600W 24v dc dc converter.Product details are as follows:
※Features
●2X voltage output
●Output short circuit protection
●Easy installation
●Design for high reliability, long lifetime
●Best case attaching mode
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18 ~ 36 VDC
48VDC (Normal Rated Value): 36 ~ 72 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～50A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………500-600w
※General Characteristic
●Switching frequency ………160-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

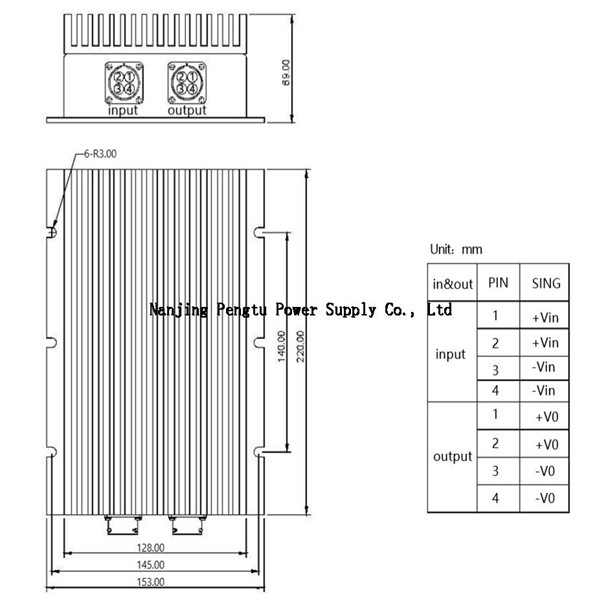

※Dimensions:220.00*153.00*69.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection        ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) Input V. range (vdc) Output V.(V) Output Curr.(A) Ripple (mv) Efficieency (Typ) Models
SING 24 18-36 24 25 200 90% PDE600-24S24-C
48 36-72 24 25 200 90% PDE600-48S24-C
110 66-154 24 25 200 91% PDE600-110S24-C
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
