PDE-B Series 400-500W DC DC converter 24v 48v 110v

PDE-B Series 400-500W DC DC converter 24v 48v 110v.Product details are as follows:
※Features
●Π type input filter
●2X voltage input
●Output short circuit protection
●Easy installation
●Best case attaching mode
●Design for high reliability,long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～40A for option
●Output Voltage ………………………………12～110V
●Power ……………………………………………400-500w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

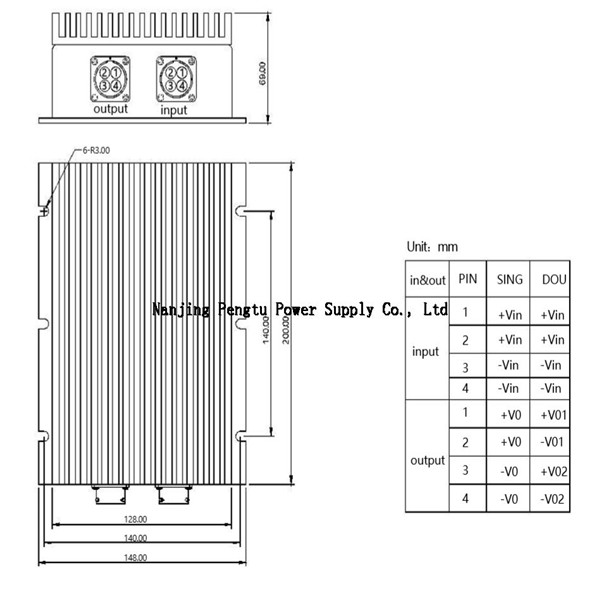

※Dimensions:200.00*148.00*69.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Over temperature protection       ●Output over current protection
※Model selection
Input V. (Vdc) Input V. range (vdc) Output V.(V) Output Curr.(A) Ripple (mv) Efficieency (Typ) Models
SING 24 18-36 24 20.8 200 90% PDE500-24S24-B
48 36-72 24 20.8 200 90% PDE500-48S24- B
110 66-154 24 20.8 200 91% PDE500-110S24-B
600 400-800 24 20.8 200 92% PDE500-600S24-B
600 400-800 48 10.4 300 92% PDE500-600S48-B
600 400-800 110 4.5 600 92% PDE500-600S110-B
DUAL 48 36-72 12&24 8.3*12.5 120&200 86% PDE400-48D12&24-B

 Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
