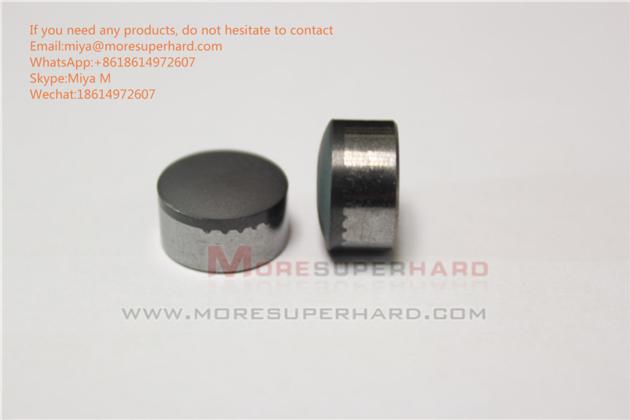

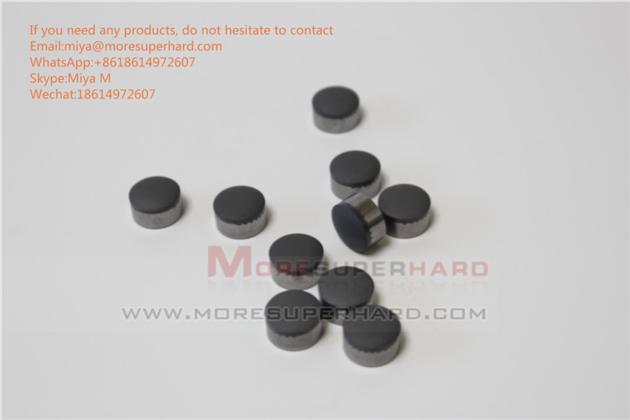

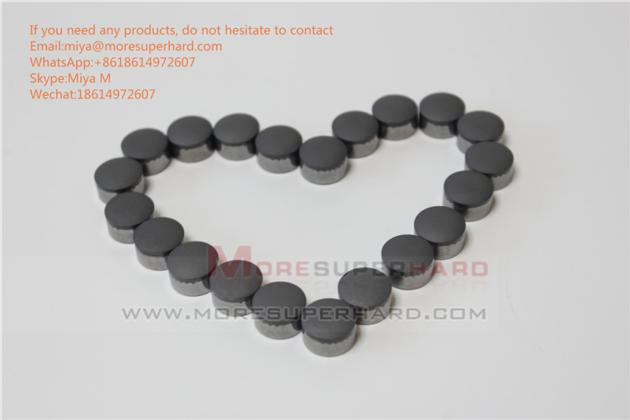

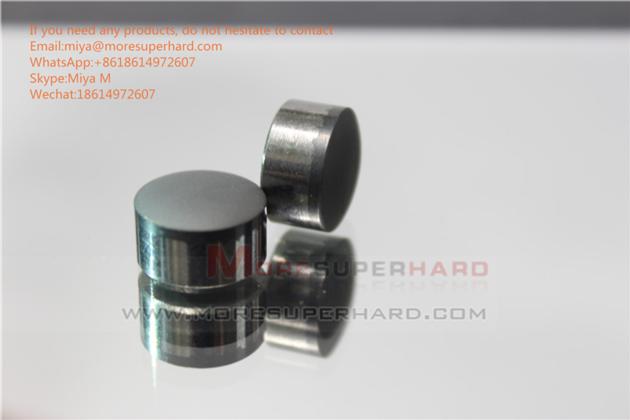

Name:PDC Cutter
Introduction:PDC (Polycrystalline Diamond Compact) Cutter is kind of superhard material that compact polycrystalline diamond with tungsten carbide substrate at ultra-high temperature and pressure.

Since PDC Cutters consist of diamond grit and tungsten carbide substrate, it combines advantages of both diamond and tungsten carbide and featured high abrasion resistant, high impact resistant and high thermal stable.

Now PDC Cutters are widely applied to oilfield drilling, gas and geological exploration, coal mining and many other drilling and milling applications, tooling as PDC Drill Bits, such as Steel PDC Drill Bits & Matrix PDC Drill Bits for oil drilling and Tri-cone PDC Drill Bits for coal mining. Hereby listed some common sizes of PDC Cutters used for Oilfield Drilling

Feature:
1.Faster cutting speeds than carbide
2.Recommended for cutting aluminum and copper alloys thanks to its excellent adhesion resistance
3.Incorporates a very sharp cutting edge
4.Available for general turning and cut-off in addition to the inserts for milling cutters
Best For: aluminum alloy, brass, cooper alloys, graphite, ceramic compact, plastics
Advantages:
1.High efficiency reduce the machining time
2.Stable performance ,and improve the products’ quality
3. The structure is simple, easy to use

SPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS

SPEC Drawings Dimension Code Diameter (ΦD) Height Total(H) Height Diamond Diamond Chamfer Carbide Chamfer
1916 19.05­0.05 16.0­0.10 2.0-2.5 0.5x45¬ 0.5x45¬
1913 19.05­0.05 13.2­0.10 2.0-2.5 0.5x45¬ 0.5x45¬
1613 15.88­0.03 13.2­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1610 15.88­0.03 10.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1313 13.44­0.03 13.2­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1308 13.44­0.03 8.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
SPEC SHEET FOR MINING/SHALLOW OIL AND GAS PDC Cutters
SPEC Drawings Dimension Code Diameter (ΦD) Height Total(H) Height Diamond Diamond Chamfer Carbide Chamfer
1313 13.44­0.03 13.2­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1308 13.44­0.03 8.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1304 13.44­0.03 4.5­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1010 10.00­0.03 10.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1008 10.00­0.03 8.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
1004 10.00­0.03 4.5­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
0810 8.00­0.03 10.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
0808 8.00­0.03 8.0­0.10 2.0-2.5 0.3x45¬ 0.5x45¬
0804 8.00­0.03 4.5­0.10 2.0-2.5 0.3x45¬ 0.5x45¬


Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
