PDB-N Series 100-350W DC DC Power Supply 5V&12V&24V

PDB-N Series 100-350W DC DC Power Supply 5V&12V&24V.Product details are as follows:
※Features
●Π type input filter
●2X voltage input
●Output short circuit protection
●Easy installation
●Best case attaching mode
●Design for high reliability, long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～40A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………100-350w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

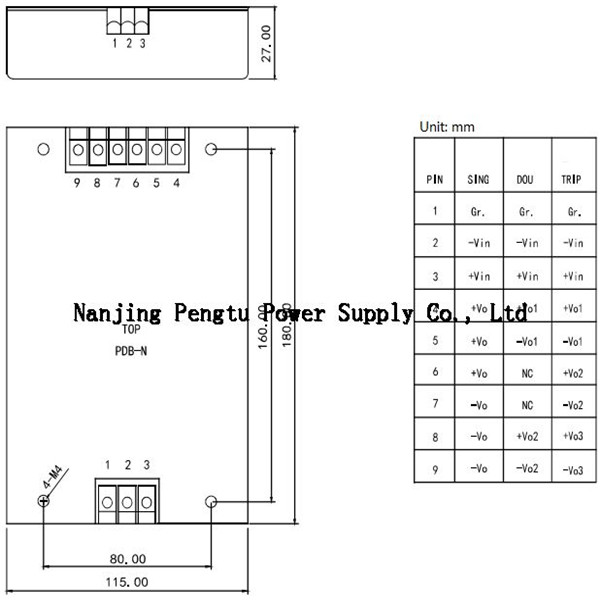

※Dimensions:180.00*115.00*27.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection        ●Output over current protection
●Over temperature protection
※Model selection
PDB350-24S24-N
PDB350-48S24-N
PDB300-110S12-N
PDB300-110S24-N
PDB300-600S24-N
PDB170-24D05&12-N
PDB170-24D05&24-N
PDB200-24D12&24-N
PDB230-24T05&12&24-N
PDB230-48T05&12&24-N
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
