PDB-G Series 400-500W Isolated DC DC Converter 12V 24V

PDB-G Series 400-500W Isolated DC DC Converter 12V 24V.Product details are as follows:
※Features
●Π type input filter
●2X voltage input
●Output short circuit protection
●Easy installation, single side pin out
●Best case attaching mode
●Design for high reliability, long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～40A for option
●Output Voltage ………………………………5～110V
●Power ……………………………………………400-500w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

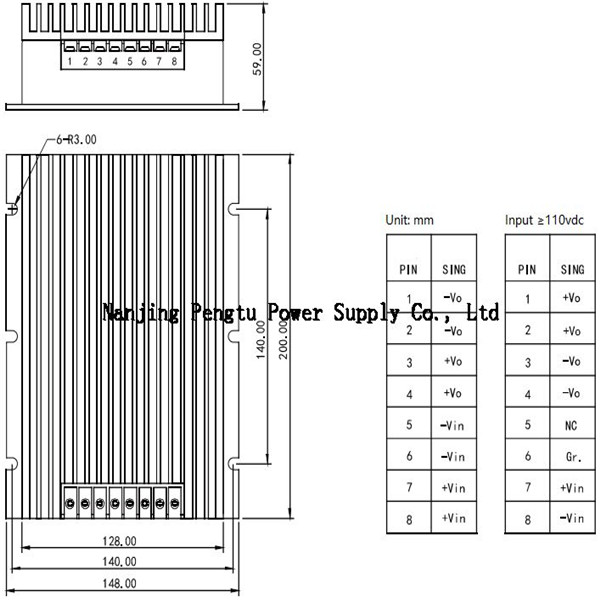

※Dimensions:200.00*148.00*59.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection        ●Output over current protection
●Over temperature protection
※Model selection
PDB400-24S12-G
PDB500-24S24-G
PDB500-48S24-G
PDB500-110S24-G
PDB500-600S24-G
PDB400-600S48-G
PDB500-600S110-G
PDB400-48S12&24-G
 Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
