PDB-E Series 150-400W Module Power Supply 12V 24V 48V

PDB-E Series 150-400W Module Power Supply 12V 24V 48V.Product details are as follows:
※Features
●Π type input filter
●High output current and power
●Design for high reliability, long lifetime
●Wide range of power, easy to upgrade
●Easy installation
●Full load efficiency up to 90%
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
18VDC (Normal Rated Value): 9～36 VDC
24VDC (Normal Rated Value): 18～36 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～50A for option
●Output Voltage ………………………………5～110V
●Power ……………………………………………150-400w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

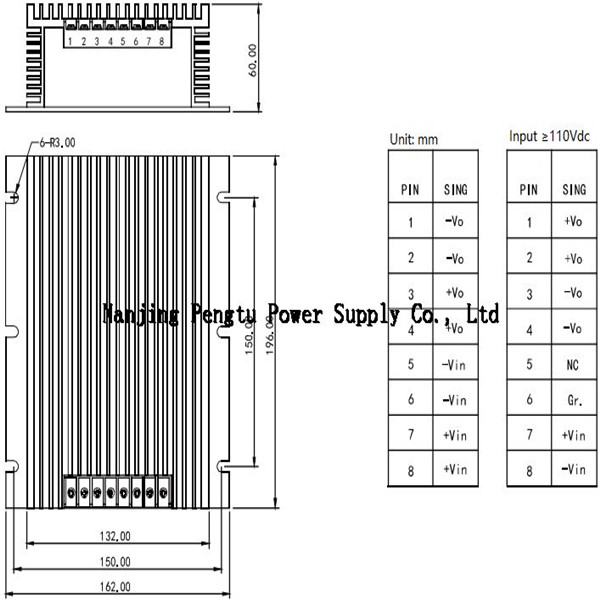

※Dimensions:196.00*162.00*60.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection        ●Output over current protection
●Over temperature protection

※Model selection
PDB200-12S12-E
PDB150-18S24-E
PDB300-12S24-E
PDB400-24S12-E
PDB330-24S110-E
PDB400-110S12-E
PDB400-110S24-E
PDB400-110S48-E
PDB300-600S24-E
PDB230-48T05&12&24-N
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
