PDB-C2/C4 Series 40-200W High Voltge isolated dc dc converter

PDB-C2/C4 Series 40-200W High Voltge isolated dc dc converter.Product details are as follows:
※Features
●Π type input filter
●High power density
●Full load efficiency up to 85%
●Design for high reliability,long lifetime
●Natural cooling,heat sink attachable
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9～36VDC(Quadruple input)
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Output voltage range ………………¯10%
●Line Regulation (main) ……¯0.5%
●Load regulation (main) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………2～20A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………40-200w
※General Characteristic
●Switching frequency ………160-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature…Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ………Industry: -45-+105℃
Military:-55-+105℃

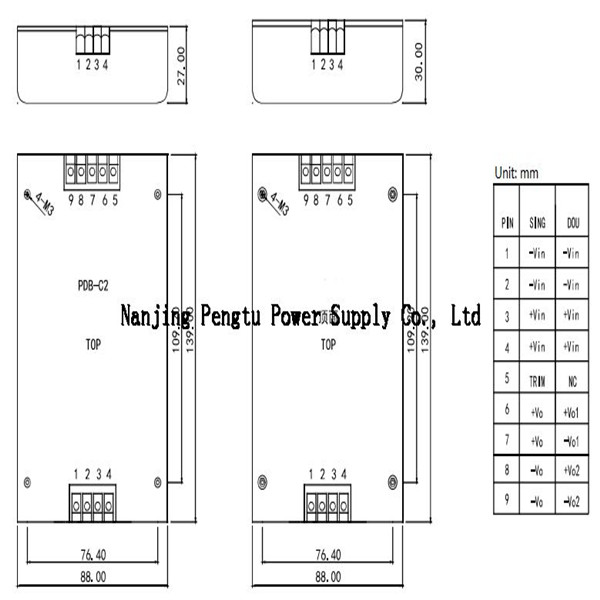

※Dimensions:139.00*88.00*27.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection        ●Output over current protection
●Over temperature protection
※Model selection
PDB100-18S12-C2
PDB100-18S24-C2
PDB150-24S12-C2
PDB150-24S24-C2
PDB150-48S12-C2
PDB200-48S24-C2
PDB150-110S12- C2
PDB200-110S24-C2
PDB200-110S48-C2
PDB75-550S24-C4
PDB100-600S12-C4
PDB40-650S15-C4
PDB100-800S24-C4
PDB150-24D05&12- C2
PDB150-24D12&24 C2
PDB150-24D05&24-C2

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
