PDB-A Series 30-100W DC DC Converter

PDB-A Series 30-100W DC DC Converter.Product details are as follows:
※Features
●Π type input filter
●High power density
●2X,4X voltage input
●Design for high reliability,long lifetime
●Easy installation, dual side pin out
●Attractive outline design
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9～36VDC(Quadruple input)
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (full load) ……¯0.5%
●Load regulation (20%-100%load) ……¯0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………2～10A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………30-100w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature …Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ………Industry: -45-+105℃
Military:-55-+105℃

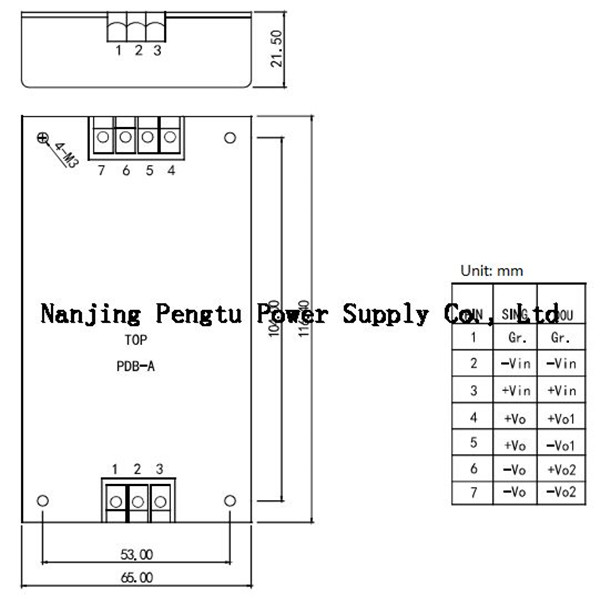

※Dimensions:116.40*65*21.50mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection        ●Output over current protection
●Over temperature protection
※Model selection
PDB75-18S12-A
PDB75-18S24-A
PDB100-24S12-A
PDB100-24S24-A
PDB100-48S12-A
PDB100-48S24-A
PDB100-110S12-A
PDB100-110S24-A
PDB75-24D05&12-A
PDB75-48D12&24-A

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
