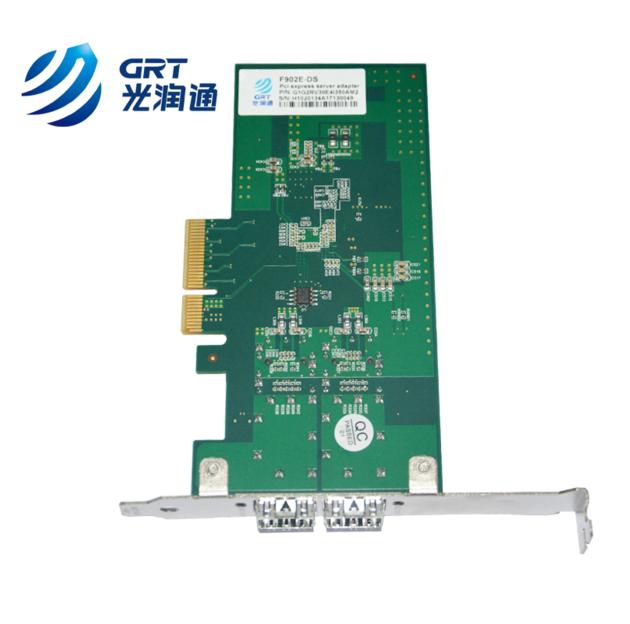

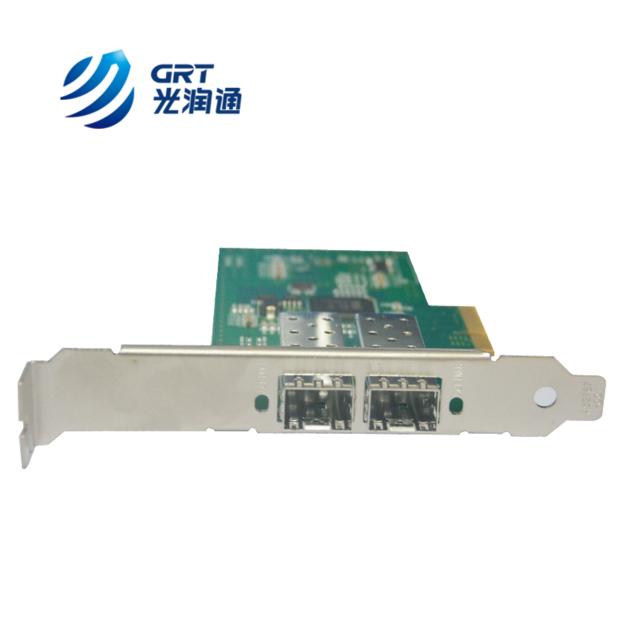

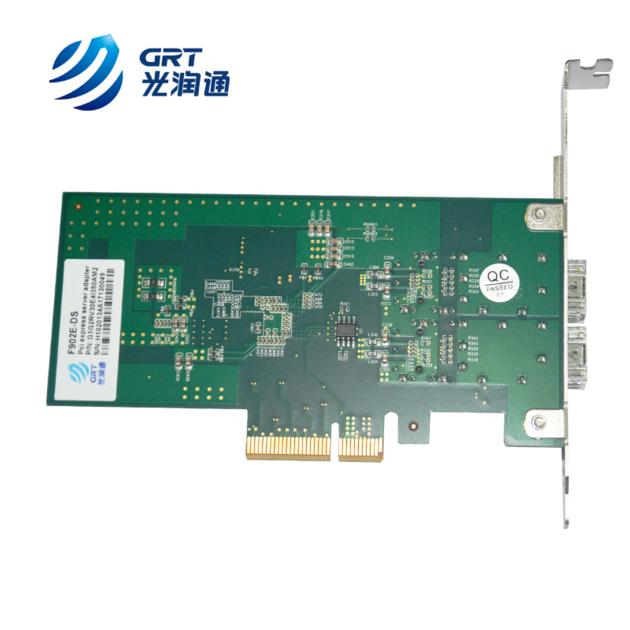

PCIe Gigabit Dual-port Oneway Transmission Device Fiber Optic Ethernet Server Adapter Card NIC

GRT PCIe Gigabit Dual-port Oneway Transmission Device Fiber Optic Ethernet Server Adapter Card NIC


Based on Intel¬I350 Ethernet Controller 1Gb Dual-Port PCIe fiber optical Network Card



Description: 1000Mb 2-Port SFP Rx only Optical Fiber Ethernet Adapter Item No.: F902E-DS
Controller Model: Intel I350 AM4 Launch time: 26th Mar, 2015


1. Key Features

-- Supporting 1000Base-SX and 1000Base-LX
-- 850mm1310nm1550nm, SFP pluggable
-- LC Duplex connector


2. Specifications

Model No. F902E-DS
Ethernet Controller Intel¬ I350AM4
Connector Type SFP
Slot Type
Max. Bus Rate
PCI Express* 2.0
4 × 5 GT/s channel
Port Dual Port
Slot height 2U or 1U
Smart Uninstall Yes
Intel ¬ Virtualization Technology(Intel¬ VT) Integrated built-in function support: Quality of Service(QoS), Traffic Management, Flexible Port Partition, Virtual Machine Device Queues(VMDq), PCI-SIG* SR-IOV
Ethernet Storage iSCSI,NFS
Performance Optimization
UDP/TCP/IP Checksum Offload
UDP/TCP Transmit Segmentation Offloading(TSO)
SCTP Receive and Transmit Checksum Offload
Virtualization
Next generation VMDq support(8 VMs)
Support 8 vms per each port
Support PCI-SIG I/O SR-IOV(Direct Assignment)
Queue per Port: 8Tx and 8Rx
Energy-Saving Features
Advanced Configuration Power Interface(ACPI) Power Manage and Wake-on
Advanced Power Management(APM) Wake-on
Low Power Disconnection
DMA Coalescing Power Management
Timing & Synchronization
IEEE 1588 Perfect Time Protocol (PTP)
Time tagging for each packet
Operating Temperature 0®C — 55®C
Rated Power 3.5W

Keywords: ethernet nic, gigabit ethernet nic, Oneway Transmission Device
