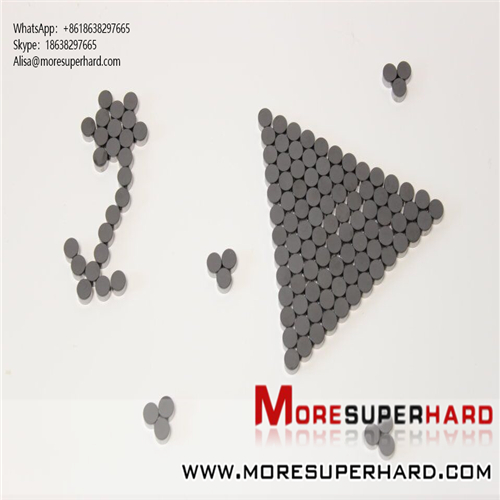

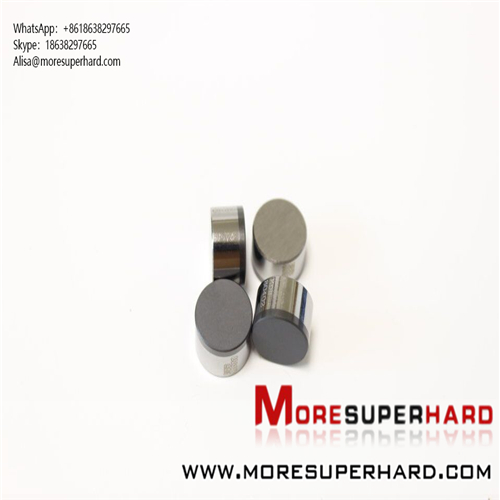

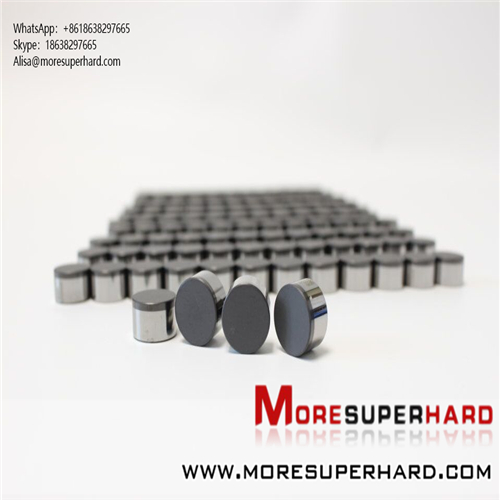

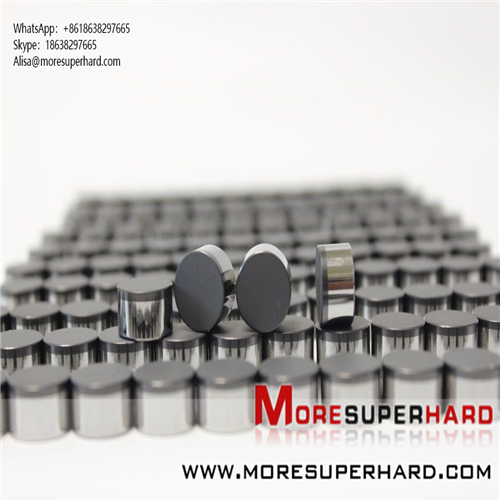

Description of Diamond coated inserts PDC inserts
1.PDC cutters are sintered with selected diamond powder and tingsten carbide compact under high temperature and ultra high pressure.
2. The PDC cutters have high hardness, high abrasion resistance and high impact resistance.
3. PDC bttons bits can be widely used for oil and gas well drill bits, geological drill and mining drill bits. The PDC cutters can also be used as cutting tools with diamond for cutting, griding and polishing.
Application of PDC cutters:
PDC cutters are widely used for petroleum and oil field PDC bit, geological PDC exploration bits, gas exploration bits, PDC coal mining drill bits. PDC is mainly applicable for PDC drilling bit for drilling into soft and intermediate-hardness stratum.
Advantages of PDC cutters:
1.New cutting surfaces will appear during the course of abrasion, which keeps effective cutting rocks
2.high strength, high hardness and high wearing property of diamond layer as well as good self-sharpening
3.PDC drilling bit made of such PDC will break up rocks depending on shearing action when it works, which is more effective than crushing of rocks by roller cone bit or plowing and grinding of rocks by diamond impregnated bit
4.The serrate structure combination between polycrystalline diamond layer and hard alloy substrate allows more fixed combination between the two layers and more impact resistance of the whole PDC.
The specifications of PDC cutter for oil drilling bits:
PDC Rock Cutter for Oil Well Drilling Bits
model product number size
D(Mm) H(Mm)
PDC-F F0505 5 5
F0804 8 4
F0808 8 8
F0810 8 10
F1008 10 8
PCD-C C1308 13.44 8
C1313 13.44 13.2
C1613 16 13.2
C1908 19.05 8
C1913 19.05 13.2
C1916 19.05 16.31
C1919 19.05 19
PCD-S S1308 13.44 8
S1313 13.44 13.2
S1613 16 13.2
S1913 19.05 13.2
S1916 19.05 16.31
S1919 19.05 19
PDC-G G1308 13.44 8
G1313 13.44 13.2
G1613 16 13.2
G1913 19.05 13.2
G1916 19.05 16.31
PDC-(CSC)-R R1320 13 20
R1925 19 25
R1929 19 29
HOW PDC CUTTERS ARE MADE ?
Cutters are made using a combination of high heat and high pressure. Man made diamonds can be grown in 5-10 minutes. Because of this diamond content, a fixed cutter bit may also be known as a diamond drill bit.
High heat plus pressure creates a PDC (polycrystalline diamond compact) cutter.

Cutters are made from a carbide substrate and diamond grit. High heat of around 2800 degrees and high pressure of approximately 1,000,000 psi forms the compact. A cobalt alloy is also present and acts as a catalyst to the sintering process. The cobalt helps bond the carbide and diamond.
During the cooling process, the tungsten carbide shrinks at a rate of 2.5 times faster than the diamond. Controlling this stress, as with most aspects of drill bit design, is called Intellectual Property, and manufacturers rarely, if ever, share their secrets.
PDC Cutter for oil Industry
The diamond composite is composed of a layer of polycrystalline diamond and a hard alloy matrix.
Oil pdc cutter is will micro diamond powder and cemented carbide substrate and super high pressure high temperature (about 60000 atmospheres, 1400 - a - 1500 ℃) under the condition of sintering, made of.
Suitable for drilling in various layers of king kong composite chip bit (PDC bit).
The diamond grains in the polycrystalline diamond layer have complete d-d bond bonding, which makes the diamond layer have high strength, high hardness and high abrasion resistance, as well as good self-sharpening.
The rock is broken by shearing action, which is more effective than the crushing rock of the cone bit or the plough cutting and grinding rock of the diamond impregnated bit.
The combination of polycrystalline diamond layer and hard alloy matrix is in the form of tooth structure, which makes the bond between the two layers more solid and ensures the drill bit to be more resistant to impact.
Oil pdc cutter features
1. The leading position of pdc cutter quality stability is a prominent feature of HMR products, pdc cutter has been unanimously recognized by customers at home and abroad.
2. The advanced application for pdc cutter is ultra-high pressure and high temperature sintering technology ensures that the pdc cutter quality is in the leading level in China.
3. Through the study of different geological conditions and the application of advanced computer simulation technology, reasonable and effective tooth structure was designed, pdc cutter greatly optimized the product performance.
Can provide a variety of products for customers to choose, composite films can also be customized according to customer requirements.
4. Cooperate with customers to design and provide applicable PDCcutter solutions for customers according to their different needs, and improve together with customers.
