PCD cutting tools used to Machined aluminium alloy [email protected]

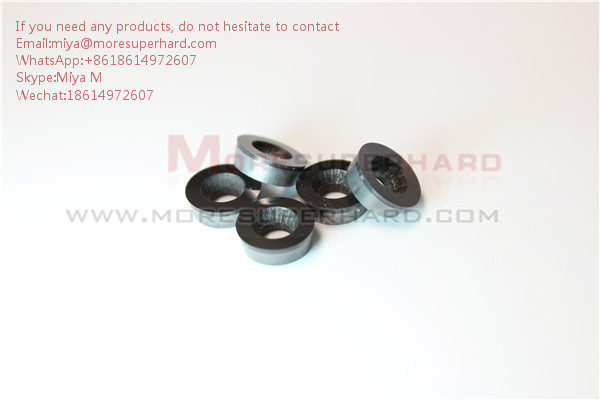

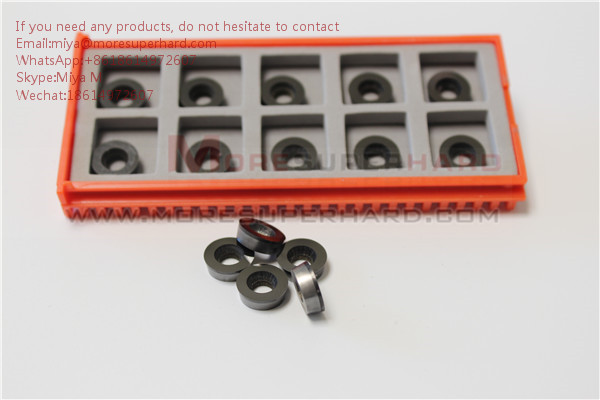

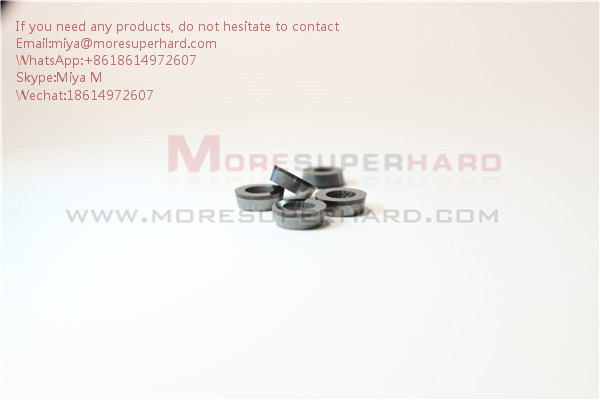

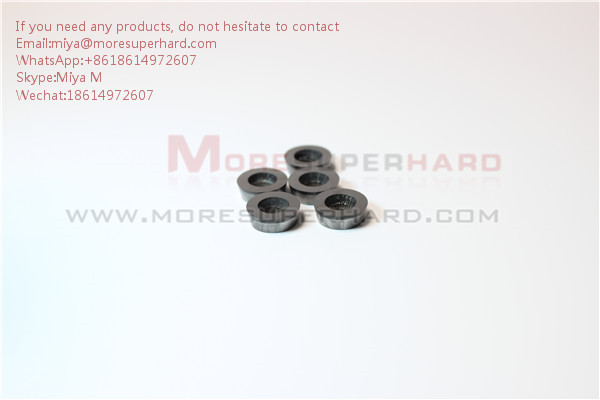

Name:PCD cutting tools
Introduction: Polycrystalline diamond (PCD) inserts consist of a layer of diamond integrally bonded to a standard or non-standard carbide-inserts substrate. The diamond layer offer higher hardness and abrasion resistance. MoreSuperHard Tools provides a complete range of PCD inserts for machining the non-ferrous metal ,these inserts are designed to achieve significantly increase the tool’s life, uniform surface finish and excellent dimensional control, bringing out higher productivity and cost reduction in the whole manufacturing process.

Feature:
1.Faster cutting speeds than carbide
2.Recommended for cutting aluminum and copper alloys thanks to its excellent adhesion resistance
3.Incorporates a very sharp cutting edge
4.Available for general turning and cut-off in addition to the inserts for milling cutters
Best For: aluminum alloy, brass, cooper alloys, graphite, ceramic compact, plastics
Advantages:
1.High efficiency reduce the machining time
2.Stable performance ,and improve the products’ quality
3. The structure is simple, easy to use
Application:
The PCD insert can be used in many fields including aviation, the car industry, energy equipment, and the wood and stone industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic, nonmetal and composite material.

Polycrystalline diamond inserts and cutting tools are rapidly replacing carbide cutting tools in many non-ferrous machining applications. When properly applied, polycrystalline diamond cutting tools are extremely cost effective. As with any cutting tool material, care must be taken to insure that the correct polycrystalline diamond material is selected, and machining conditions are within recommended guidelines.
1.PCD tools provide improved cycle times and more parts per shift by enabling high material removal rates
2.PCD cutting tools allows faster speeds and feeds compared to any other conventional cutting tool material
3.PCD reduces scrap and improves workpiece quality with tight dimensional control and excellent surface finishes
4.PCD optimizes machine tool efficiency by increasing production capacity reducing the need for new equipment
PCD tool: Polycrystalline diamond
Used for different types of applications such as turning, milling, grooving, chamfering and special forms.
From non-ferrous metals and wear resistant non-metallics like wood, ceramics, graphite, nylon, carbon fiber and plastics.
These tools also have excellent cutting ability and cutting effect for copper, aluminimum, gold, silver and other non-ferrous metals

Size:
Size Diameter Height
2020 20.05 20
1916 19.05 16
1913 19.05 13.2
1910 19.05 10
1908 19.05 10
1613 16.05 13.2
1610 16.05 10
1608 16.05 8
1310 13.44 10
1313 13.44 13.2
1308 13.44 8

Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
