PCD Cutting Tool Blanks for any shape and size [email protected]

Name: PCD Cutting Tool Blanks
Brief Introduction ：More SuperHard PCD Cutting Tool Blanks In The Size Of 5μm、10μm And 25μm Can Be Used In Super-Fine Processing And Fine.
Type: Triangle, Cylindrical, Square, Flake, Etc

Details
More SuperHard PCD Cutting Tool Blanks In The Size Of 5μm、10μm And 25μm Can Be Used In Super-Fine Processing And Fine. They Are Applicable To The Processing Of Non-Metal Materials As Wood, Ceramics,Intensified Planks And Non-Farrous Material As Copper And Aluminum. We Can Supply All Kinds Of PCD Cutting Tool Blanks That Diameter Can Reach 58mm .
Model Product No Angle (®） Diameter (Mm) Thickness (Mm)
MoreD30 360 30 1.6, 2.0, 3.2
MoreD42 360 42 1.6, 2.0, 3.2
MoreD48 360 48 1.6, 2.0, 3.2
MoreD51 360 51 1.6, 2.0, 3.2
MoreD58 360 58 1.6, 2.0, 3.2
Note:The Products Can Be Manufactured Per Customer Request As Non-Standard Shapes Such As Rectangular, Square, Triangle, Rhombus, Sector And So On.
PCD Cutting Tool Blanks Application Recommendation
Grades Characters Applications Advantages
W5 Fine Grain Size * Average Grain Size: 5μm
*High Diamond Content Over90%
*Laser Cutting ,Wire EDM Cutting Aluminum, Brass/Copper,Precious Metals, Wood Composites,Plastic Excellent Surface Finish
W10 Medium Grain Size *Average Grain Size: 10μm
*High Diamond Content Over 90%
*Laser Cutting ,Wire EDM Cutting ＜14% Si/Al Alloys, Copper Alloys, Graphite And Graphite Composites, Green Ceramics And Carbides Excellent Resistance,
Good Surface Finish
W25 Coarse Grain Size *Average Grain Size: 25μm
*High Diamond Contentover 90%
*Laser Cutting ,Wire EDM Cutting ＞14% Si/Al Alloys, Metal Matrix Composites, Bi-Metals(Aluminum/Castiron), Sintered Ceramics And Carbides Long Life,
Extremely High Wear Resistance
Application Cases Of PCD Cutting Tool Blanks:
* 58mm Diameter PCD Wafers Have Sent To American Clients
Product Name PCD Wafer, Fine Grade PCD
Size 58 Mm Diameter, 2 Mm Thickness PCD Blanks
Applicable Workpiece Woodworking Tools ( Brazing The PCD To Tool Body Then Wire EDM Again For Final Profile)

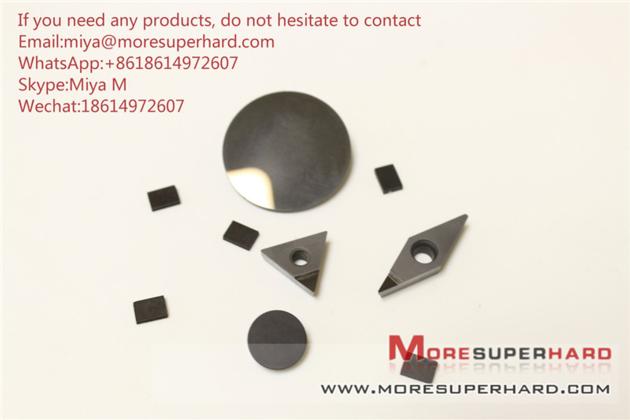

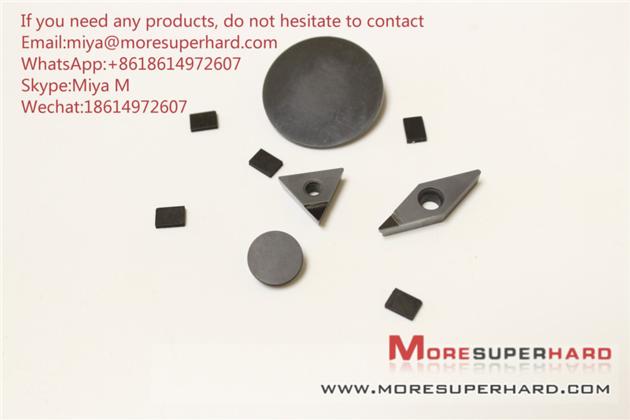

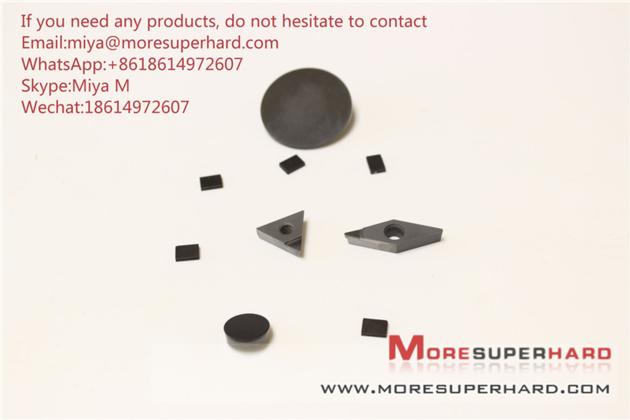

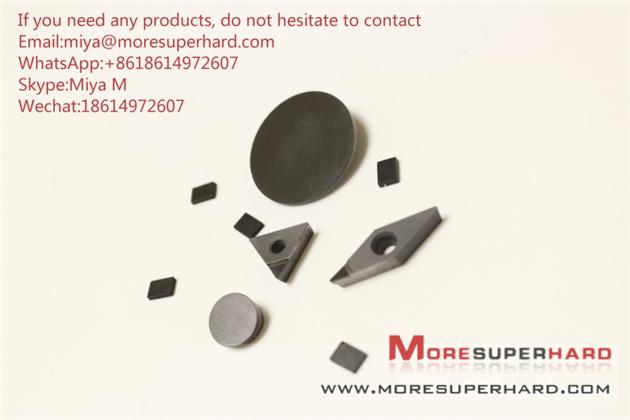

Product Photo Show


Advantages:
1. High hardness, abrasion resistance and impact resistance
2. High speed, good surface finish, long life and high efficiency
3. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl
4. Gauge pads have tungsten carbide inserts for maximum wear resistance
5. The diamond layer with thickness over 1 mm increases abrasion resistance of PDC cutter
