PCBN Cutting Tool Blanks for ferrous metal and alloy [email protected]

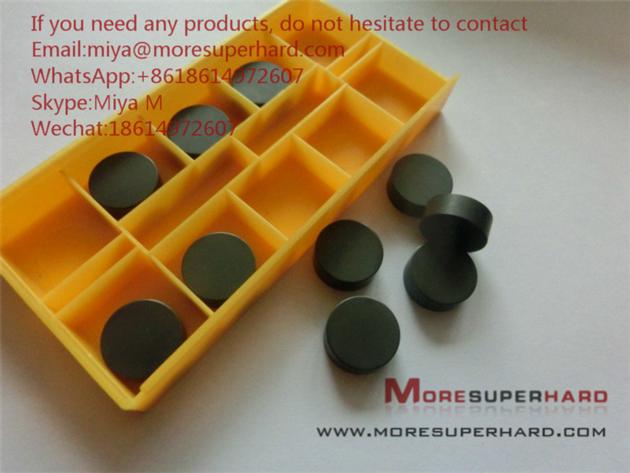

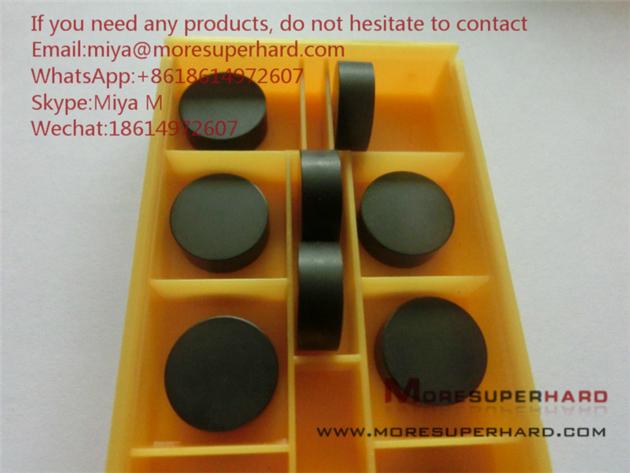

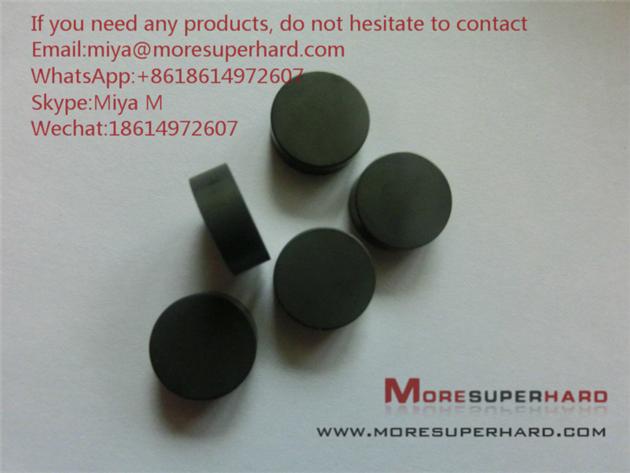

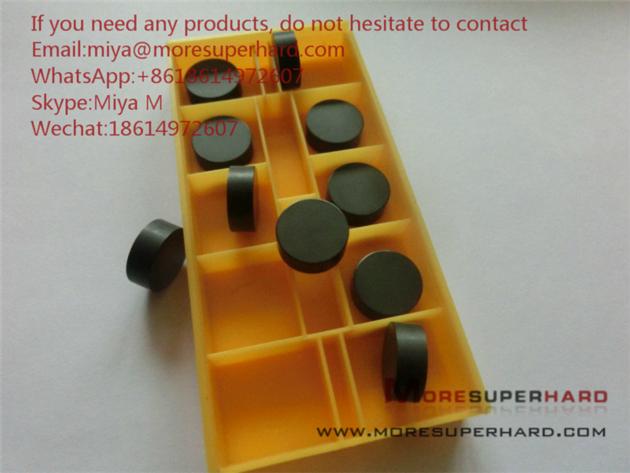

Name: PCBN Cutting Tool Blanks
Brief Introduction： The Standard Shape Of MORE¬ PCBN Cutting Tool Blanks Is Round. Other Shapes, Such As Rectangle, Triangle, Square, Semi-Circle And So On, Can Also Be Customized Per Customers Requirements.
Application: Ferrous Metal And Alloy

Details
Introduction：We Has Various Equipments Such As Laser Cutting Machines, Wire Cutting Machines And Various Processing Equipments To Cut Blanks, Regardless Of Their Thickness Into Special Sizes And Shapes Per Customers Requirements.
MORE¬ PCBN Cutting Tool Blanks Consist Of Fine CBN Grains Sintered Under Ultra-High Pressure And Ultra-High Temperature. Combining The Strengths Of Hardness, Thermal Stability, Thermal Conductivity, And Strong Impact Resistance Ability Characteristic Of CBN, They Are Ideal For Cutting Tools For The Machining Of Ferrous Metal And Alloy, All With High Productive Efficiency, High Machining Precision, And Good Surface Quality.
MORE¬ CBN Cutting Tools Blanks Are Composed By BN Series And PCBN Series:
BN Characteristics:
Solid CBN, Good Wear Resistance, Two Sides Can Be Used As Edges, High Thermal Resistance, Excellent Fracture Resistance
BN Application:
High Speed Turning And Milling Of Gray Cast Iron, Turning Of Chilled Iron,Nickel-Based Iron And Ductile Iron
BN Series:
Model Products Number Diameter (Mm) Thickness (Mm)
BN095 9.5 3.2
BN127 12.7 3.2
BN132 13.2 3.2
BN190 19.05 4.76, 6.35
BN250 25.4 4.76, 6.35
Note: The Products Can Be Manufactured Per Customer Request As Non-Standard Shapes Such As Rectangular, Square, Triangle, Rhombus, Sector And So On.
PCBN Characteristics:
Good Weld Based In The Composite CBN Layer And Tungsten Carbide Base;High Abrasion Resistance
Good Transversal Repture Strength Resistance; Good Chemic Stability;Uniform Dimension Precision;
Good Consistency Of Processing.
PCBN Application:
Turning Of Castiron; Powdered Metals; Exotic Materials And Heat Resistant Alloys; High Speed Milling Of Gray Castiron.
PCBN Series
Model Products Number Diameter (Mm) Thickness (Mm)
PCBN1200 12.7 1.6, 2, 3.2
PCBN1300 13.2 1.6, 2, 3.2
PCBN1900 19 1.6, 2, 3.2
Note: The Products Can Be Manufactured Per Customer Request As Non-Standard Shapes Such As Rectangular, Square, Triangle, Rhombus, Sector And So On.

Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools, welcome to consult and choose at any time
