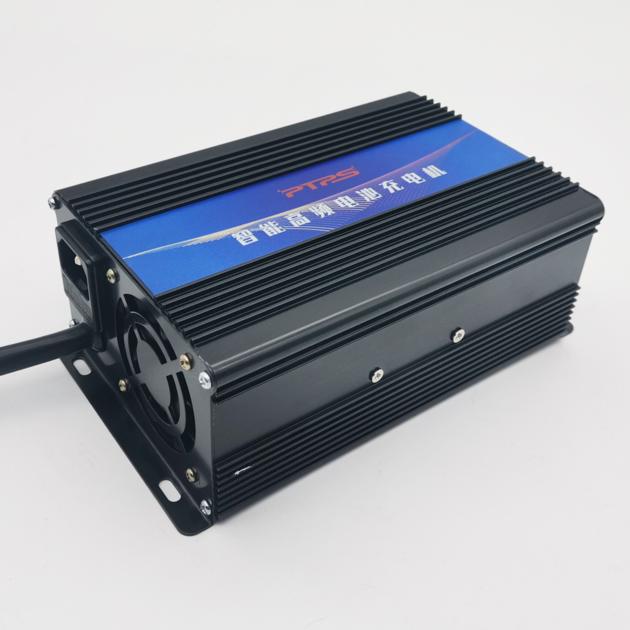

PBC170 series portable charger battery charger EV charger
| Price: | US$ 50 / Piece |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | TT/LC/Paypal/Western union |
| Port of Export: | Shanghai |
Product Details
| Model No.: | PBC170-12V10A | Brand Name: | PENGTU |
|---|
| Certification: | CE,ISO9001 |
|---|---|
| Specification: | PBC170 series portable charger battery charger EV charger. |
Packaging & Delivery
| Packaging: | Put in the carton and make transportation safety measures. |
|---|---|
| Delivery/Lead Time: | 15days |
| Production Capacity: | 1000pieces/month |
Product Description
Product introduction and application areas
This series of chargers adopts MCU intelligent control mode; it is suitable for rich liquid lead-acid batteries, maintenance-free lead-acid batteries, lithium batteries, nickel-hydrogen batteries, nickel-chromium batteries, etc.; it can be used in electric sweepers, electric sightseeing cars, golf carts, The battery packs of communication, electric power, and ships are cyclically charged.
Technical parameters
.Input AC voltage range:180-260VAC;45-65HZ
.Input AC maximum current:15A@220VAC
.Max Efficiency:93.0%(Full Load@220VAC)
.Noise:≤45dB
.Working temperature:-20®C~＋55®C
.Storage temperature:-40®C~＋95®C
Product specifications
.Dimensions:193.00*116.40*72.0mm
.Weight:1.0kg¯0.3kg
Multiple protection
.Input over current protection .Output reverse connection protection
.Output over voltage protection .Output short circuit protection
.Output no-load protection .Fully automatic shutdown

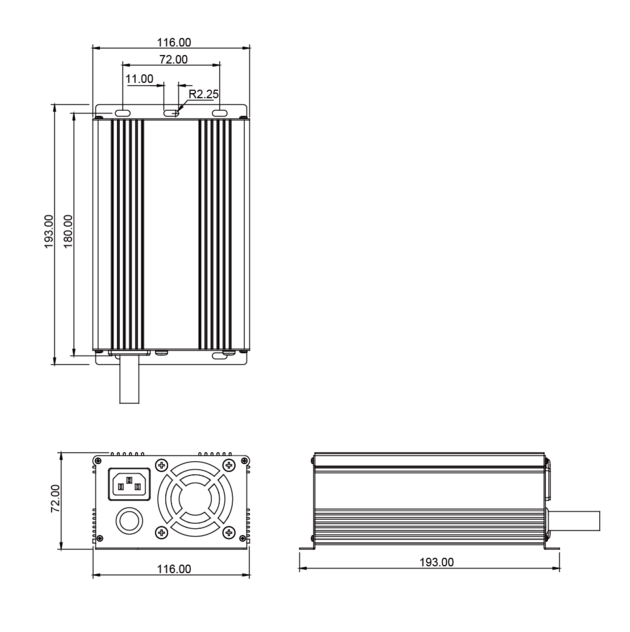

Mechanical Size&Model selection
Model Battery pack rated voltage Maximum output voltage Maximum output current
PBC-170-12V10A 12V 15V 10A
PBC-170-12V12A 12V 15V 12A
PBC-170-12V15A 12V 15V 15A
PBC-170-24V8A 24V 30V 8A
PBC-170-36V5A 36V 45V 5A
PBC-170-48V5A 48V 60V 5A
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
|
