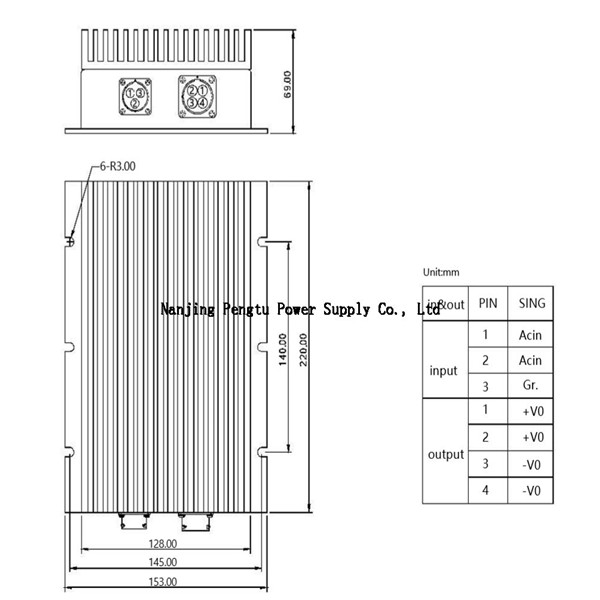

PAH-C Series 600-800W Aviation connector Power Converter

PAH-C Series 600-800W Aviation connector Power Converter.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Easy installation
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value):176～264 VAC PFC 100-240 VAC for optional
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (Main) ……¯0.5%
●Load regulation (Main) ……¯0.5%
●Output Current Limited ……120%(Type)
●Output current ………5-50A for optional
●Output voltage ………5-48V
●Power …………600-800W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current＜5mA)
●Input-case: >1500 VAC/MIN (Leakage current＜5mA)
●Output-case: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
                   Military I: -40-+85℃
                   Military II: -55-+85℃
●Storage temperature ……………………Industry: -45+105℃
                Military: -55-+105℃
※Protection Features
●Input under voltage protection         ●Output over current protection
●Output short circuit protection        ●Over temperature protection
●Input over voltage protection
※Model selection
Input V. (Vac) Input V. range (vac) Output V.(V) Output Curr. (A) Ripple &noise pk-pk (mv) Efficiency (Typ) Models
SING 220 176-264/100-240 12 50 150 91% PAH600-220S12-C
220 176-264/100-240 24 33.3 200 92% PAH800-220S24-C
220 176-264/100-240 48 16.6 300 92% PAH800-220S48-C

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.
