PAB-B3 Series 50-150W AC DC Converter 5/12/24/48v

PAB-B3 Series 50-150W AC DC Converter 5/12/24/48v.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value): 176～264 VAC
※Output Characteristic
●Voltage set-point accuracy ……¯2%
●Line Regulation (Main) ……¯0.5%
●Load regulation (Main) ……¯0.5%
●Cross regulation …………¯3%
●Output Current Limited ……120%(Type)
●Output current ………3-20A for optional
●Output voltage ………5-48V
●Power …………50-150W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current＜5mA)
●Input-case: >1500 VAC/MIN (Leakage current＜5mA)
●Output-case: >500 VDC/MIN
●Main-Vice: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
                   Military I: -40-+85℃
                   Military II: -55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
                Military: -55-+105℃
※Protection Features
●Input under voltage protection         ●Output over current protection
●Output short circuit protection        ●Over temperature protection
※Model selection
Input V. (Vac) Input V. range (vac) Output V.(V) Output Curr. (A) Ripple &noise pk-pk (mv) Efficiency (Typ) Models
SING 220 176-264 05 20 80 83% PAB100-220S05-B3
220 176-264 12 10.4 120 84% PAB125-220S12-B3
220 176-264 24 6.25 200 85% PAB150-220S24-B3
220 176-264 28 5.36 280 85% PAB150-220S28-B3
220 176-264 48 3.1 300 85% PAB150-220S48-B3
DUAL 220 176-264 05&12 10&4 100&120 83% PAB100-220D05&12-B3
220 176-264 05&24 4&4 80&200 83% PAB120-220D05&24-B3
220 176-264 12&24 6&3.25 120&200 84% PAB150-220D12&24-B3
220 176-264 05&28 2&5 50&280 83% PAB120-220D05&28-B3

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to *.

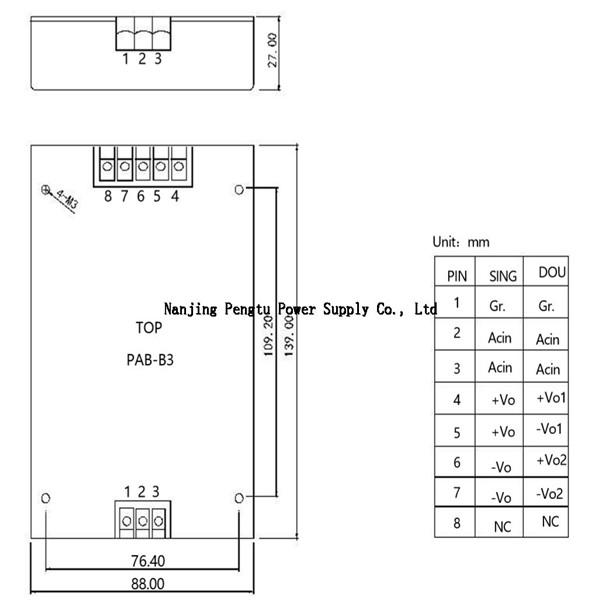

※Mechanical Drawing & Pin definition
