Original Kyocera KJ4B-QA06NTB-MS6V-48 Printhead for Handtop/Wit-co Printer
| Price: | US$ 2155.50 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T / Bank Wire / Paypal |
| Port of Export: | FOB |
Product Details
| Model No.: | MS6V-48 | Brand Name: | Kyocera |
|---|
| Certification: | others |
|---|---|
| Specification: |
Ink Type :Water based Dimensions (W × D × H): 200 × 25 × 57.9 mm Dry Weight :420 g Total Nozzles*1 :2,656 Standard Resolution:600×600dpi Effective Print Width*2 :108.25 mm Max. Drive Frequency :30 kHz Max. Print Speed :@ 600 dpi 1,270 mm/s (76.2 m/min) Drop Volumes :5, 7, 12 and 18 pl *3 Typical Ink Viscosity :5.0 - 6.0 mPa*s Input Voltage :3.3 V for logic / 26 V for driving |
Packaging & Delivery
| Packaging: | Original In Box |
|---|---|
| Delivery/Lead Time: | 4-5 days |
| Production Capacity: | 10 |
Product Description
Kyocera printhead water based KJ4B-QA for textile printer Kyocera head water KJ4B-QA for CNTOP Homertech textile printer

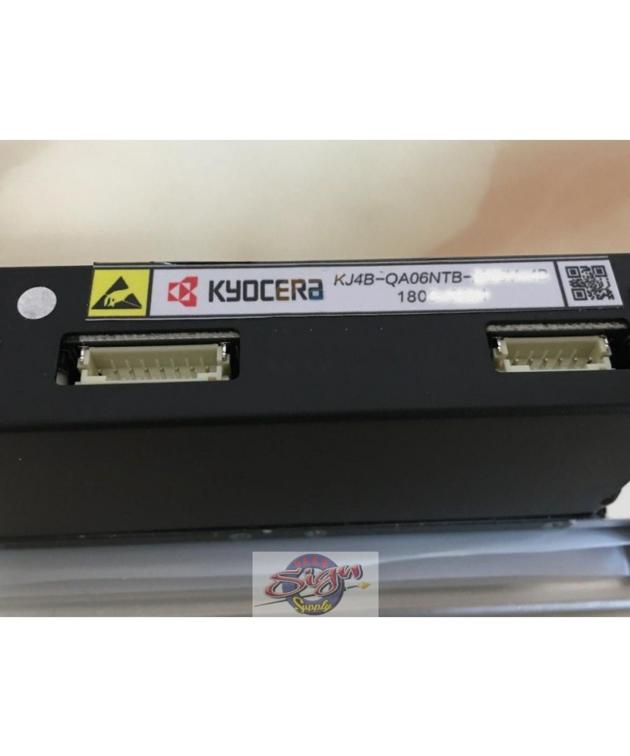

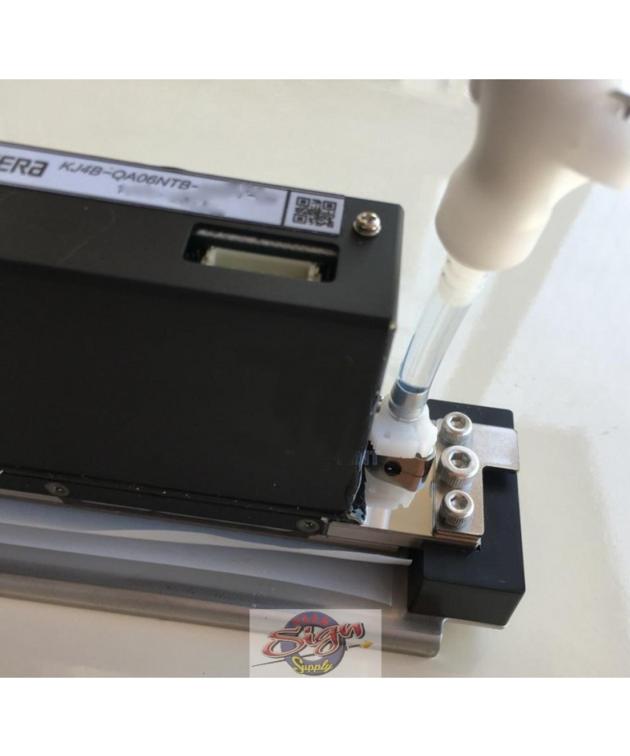

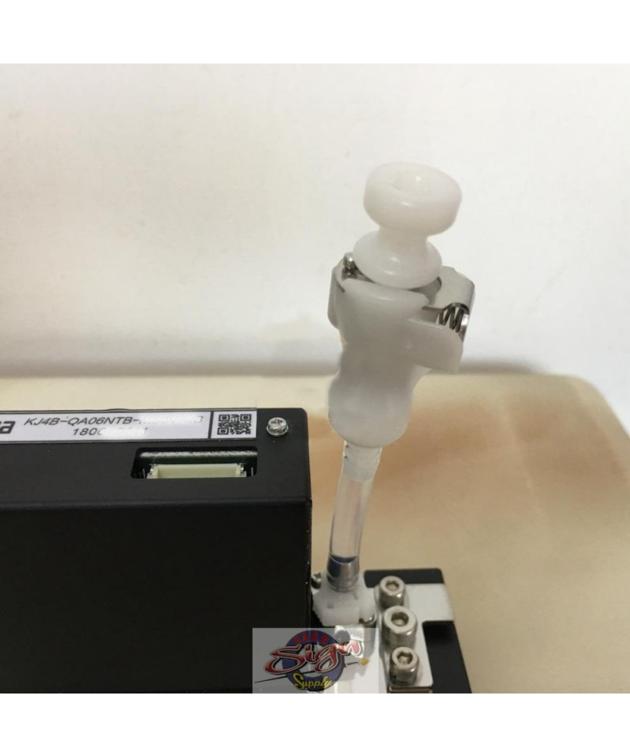

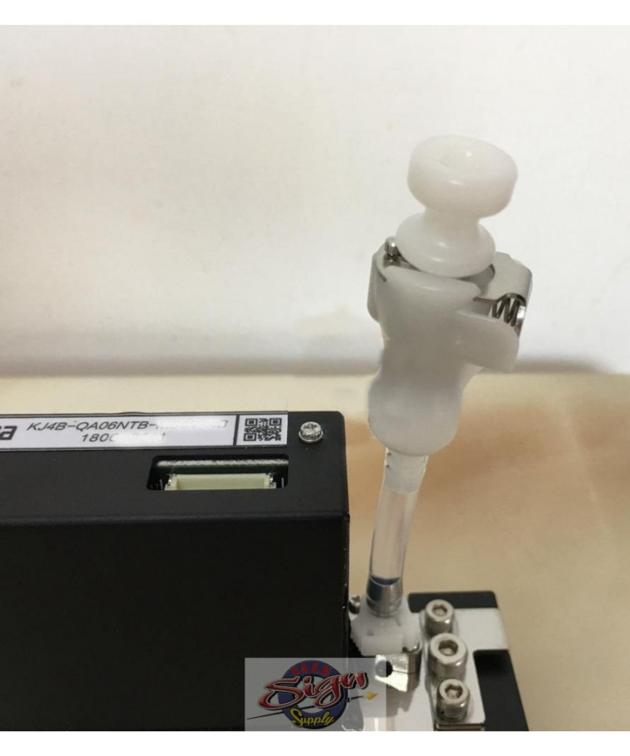

Original Kyocera KJ4B-QA06NTB-MS6V-48 Printhead for Handtop/Wit-co Printer
Kyocera printhead water based KJ4B-QA for textile printer
Kyocera head water KJ4B-QA for CNTOP Homertech textile printer
Ink Type :Water based
Dimensions (W × D × H): 200 × 25 × 57.9 mm
Dry Weight :420 g
Total Nozzles*1 :2,656
Standard Resolution:600×600dpi
Effective Print Width*2 :108.25 mm
Max. Drive Frequency :30 kHz
Max. Print Speed :@ 600 dpi 1,270 mm/s
(76.2 m/min)
Drop Volumes :5, 7, 12 and 18 pl *3
Typical Ink Viscosity :5.0 - 6.0 mPa*s
Input Voltage :3.3 V for logic / 26 V for
driving
Temperature Control :Reservoir heater and thermistor are equipped.
|
