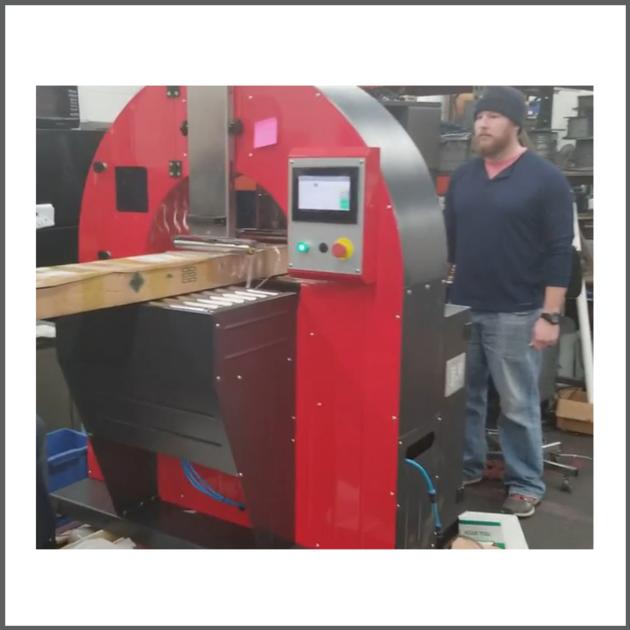

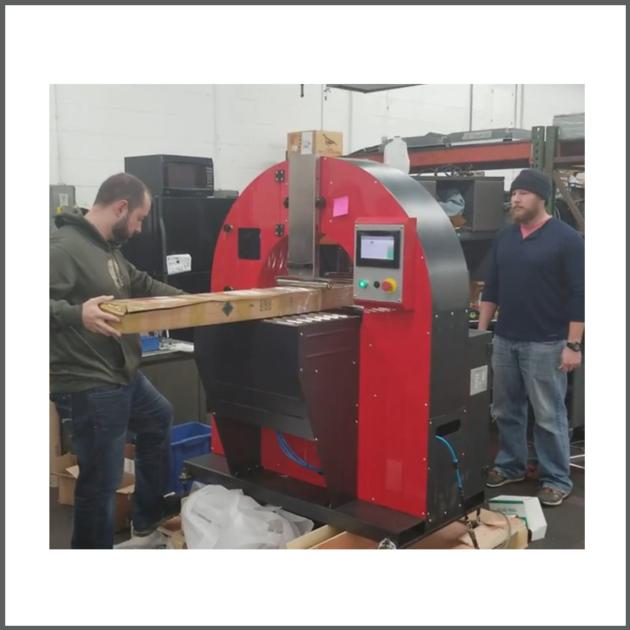

Orbital wrapping machine
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T LC |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | SCR-60AC | Brand Name: | AUSIM |
|---|
| Certification: | |
|---|---|
| Specification: |
1.Special conveying device is easy for loading&conveying the package strengthens the transfer capacity .
2.Indicator alarms automatically when trouble occurs.Trouble can be shown. 3.Photoelectric sensor is adopted for setting packing position. 4.Material tension could be adjusted automatically. 5.The turning ring is controlled by frequency converter. Overlap rate could be adjusted according to the requirement. 6.Omron PLC control system. 7.Pneumatic grab,attach and cut the film tails automatically. 8.Film packing layers,times adjustable.(cycle pause capability). 9.Manually adjustable infeed and outfeed side guides. 10.Infeed and outfeed product photocells detection during running process automatically. Model SCR-60AC Power 220V,1P,50/60HZ Air consumption 0.6-0.8Mpa Film cut/Clamp system By pneumatic Top presser By pneumatic Inner coil diameter 600mm Packing dimension √W2+H2＜600mm Packing length Unlimited Conveying method Belt/roller |
Packaging & Delivery
| Packaging: | Steel frame |
|---|---|
| Delivery/Lead Time: | 35 working days |
| Production Capacity: | 20-40pcs/hour |
Product Description
Horizontal stretch wrapping machine is widely used for winding and packaging all long products such as welded pipes, conductors, seamless pipes, steel pipes, copper pipes, copper bars, aluminum pipes, aluminum profiles, plastic straight pipes, bars, flat materials, plates, etc. After the product is wrapped and packaged, the appearance is beautiful and generous, and it has the functions of good sealing, bundling, rust-proof, moisture-proof, dust-proof, abrasion-proof, and anti-aging.
Indicator alarms automatically when trouble occurs.Trouble can be shown
* Photoelectric sensor is adopted for setting packing position
* Material tension could be adjusted automatically
* The turning ring is controlled by frequency converter. Overlap rate could be adjusted according to the requirement
* Pneumatic grab,attach and cut the film tails automatically
* Slewing bearing ring system
|
