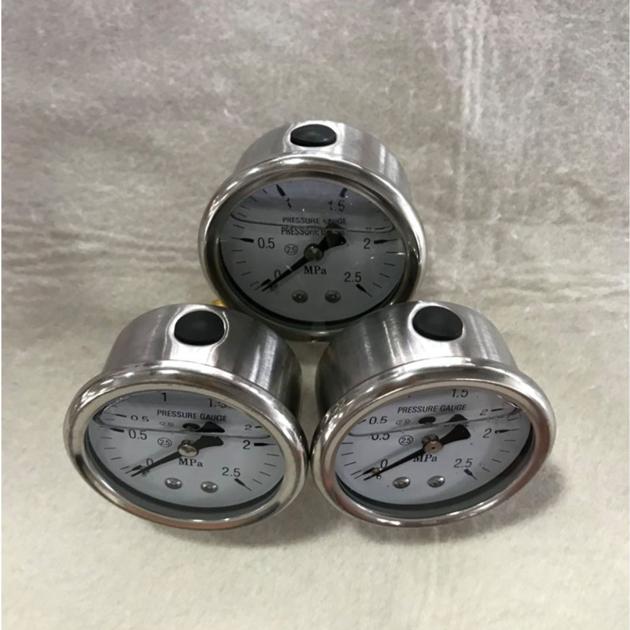

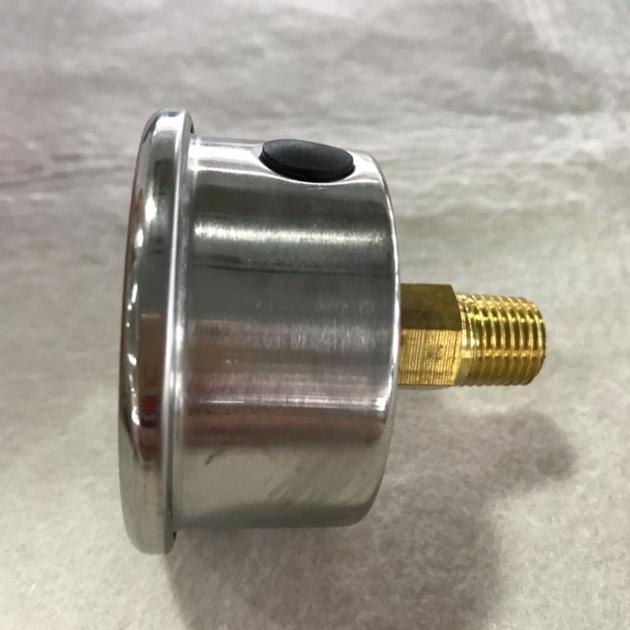

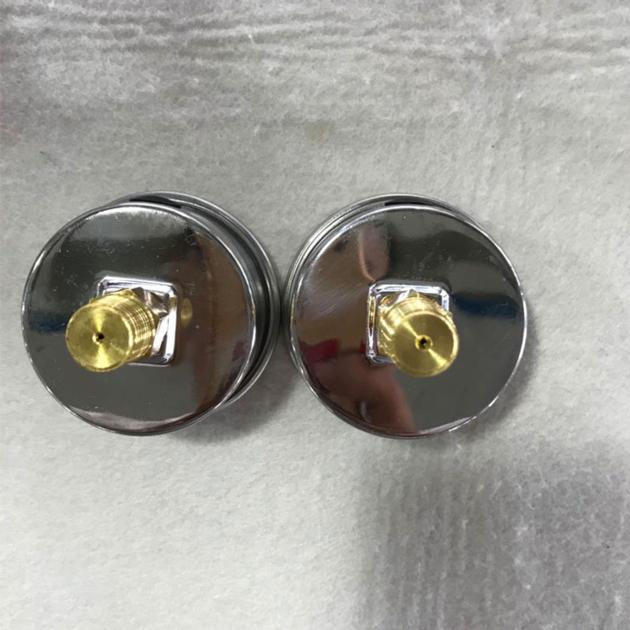

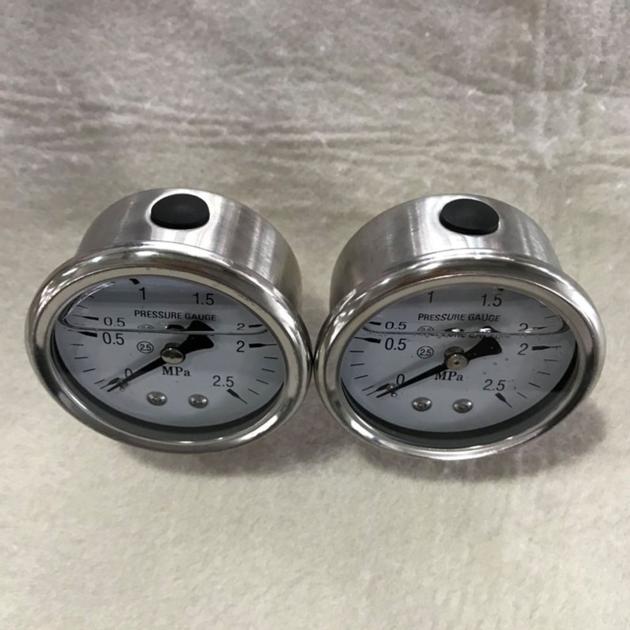

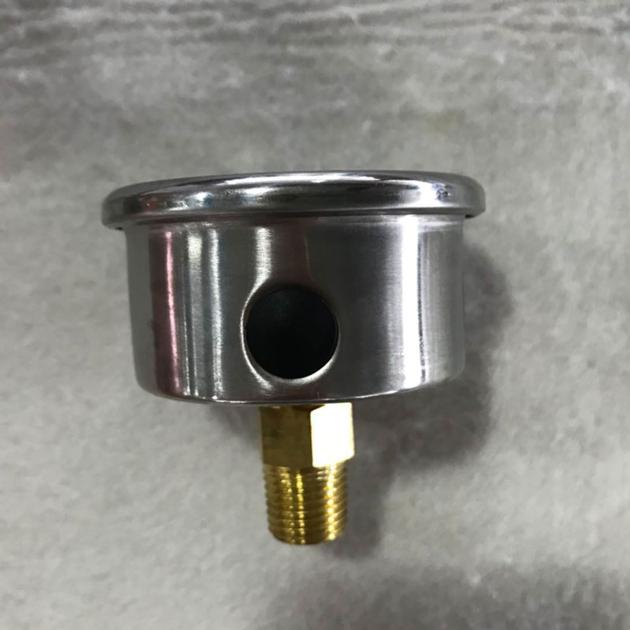

One Socket Type Stainless Steel Back Mounting Pressure Gauge

Pressure Gauge Description
Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304
Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring: Non, black steel or chrome plated
Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316
Bourdon tube:Phosphor Bronze,SS304 or SS316
Dial plate and pointer : Aluminum
Window: Glass or Safety glass
Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting: Bottom, back and panel
Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6%
Pressure limitation : 1:Steady: 3/4x full scale value
2: Fluctuation:2/3x full sacle value
3:Short time:full scale value

Company Introduction
 One of three biggest pressure gauge manufacturers in China, established in 2000.
 Specializes in manufacturing and exporting Pressure gauge,Pressure regulator, Manometer and Pressure thermometer.
 We have a strong network that allows us to design and customize products.
 We currently produce over 8 varieties, more than 100 series, and about 1, 000 specifications of instruments for various industries, including oil exploration, chemical industry, chemical fiber industry, iron and steel industry, metallurgical industry, power generation plants, food industry and scientific research.
 Our products are exported to East Asia such as Korea & Japan, the European Union such as Russia, Germany & Italy,and the Middle East, America. Southeast Asia such as Vietnam, Thailand & Indonesia.
 As a well-known manufacturer in China, our factory has approved by CCC, ISO14001, ISO9001, CE, SGS and KS certificates.
 We will make more efforts to supply competitive products and the best services to all customers.
 If you need high quality products, welcome to contact us.
 Once cooperation, friends forever.
Pressure Gauge Feature
1.Convenient for users to read pressure.
2.Bright surface and competitive price.
3.Small size can be used in small places.
4. The size, color, material and other details can be based on customer's requirements.
5. Advanced equipment and professional technology: we are committed to offer the high quality gauges for all over the world customers.
6. Best service: we provide best after-sale service all the time for our goal is a long trade cooperation term.
7. We have inspection procedure to ensure the product quality
